BCP10524DM Forged Steel Door Hinge 203mm

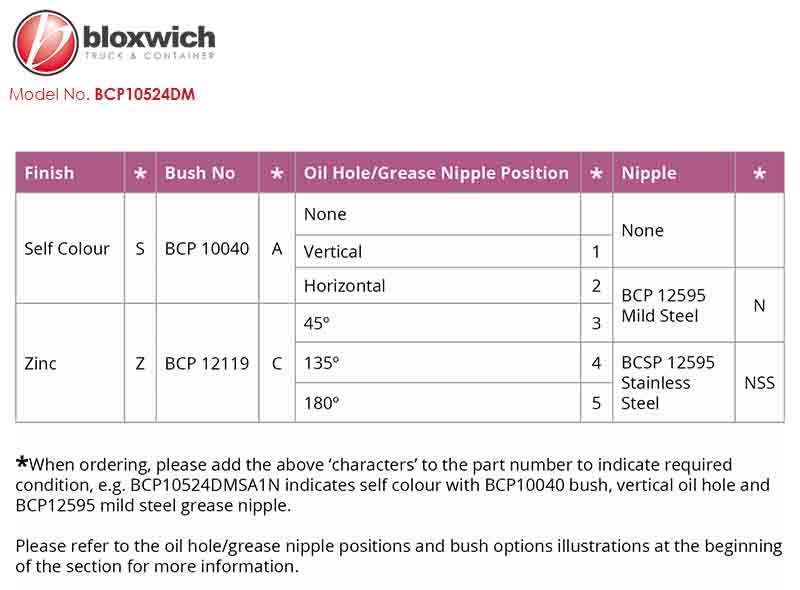

BCP10524DM Forged Steel Door Hinge 203mm - view 1Zinc plated finishDrawingAll OptionBush OptionsOil Hole/Grease Nipple Positions

BCP10524DM Forged Steel Door Hinge 203mm

Price: £4.71 (ex VAT)

Description
Description


ONLY 81 LEFT IN STOCK

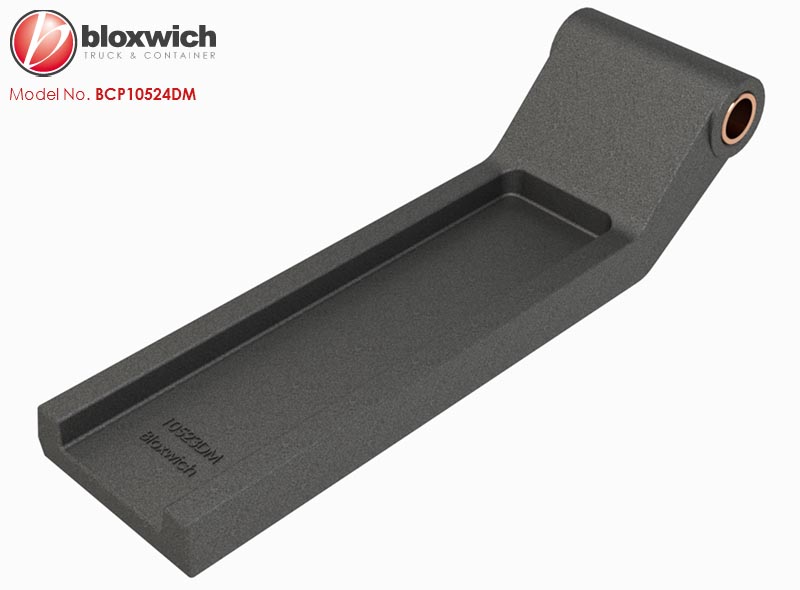

Bloxwich Standard Patent Design: Forged Steel Door Hinge 203mm

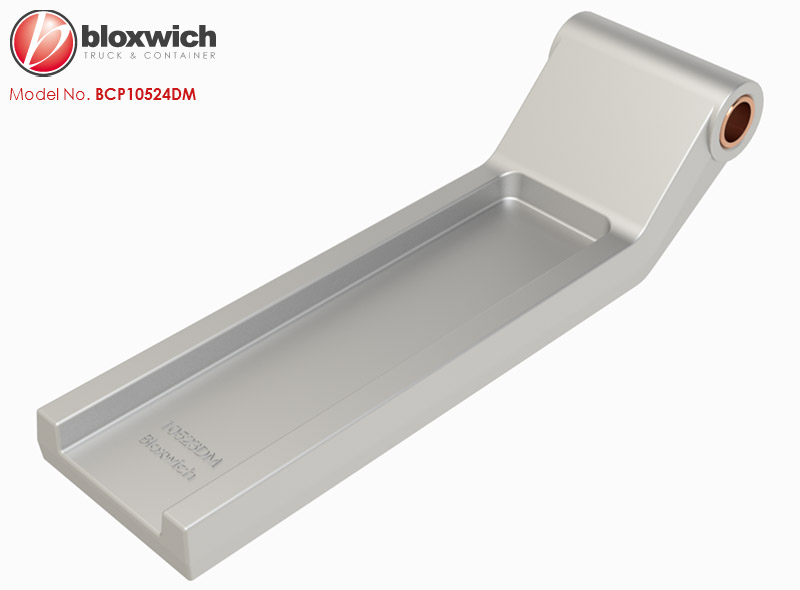

Supplied in: Self colour or zinc plated

Use: Weld-on flat back design, bushed to suit Ø12.7mm hinge pin or 1/2" bolt. Not suitable for use on offshore container doors.

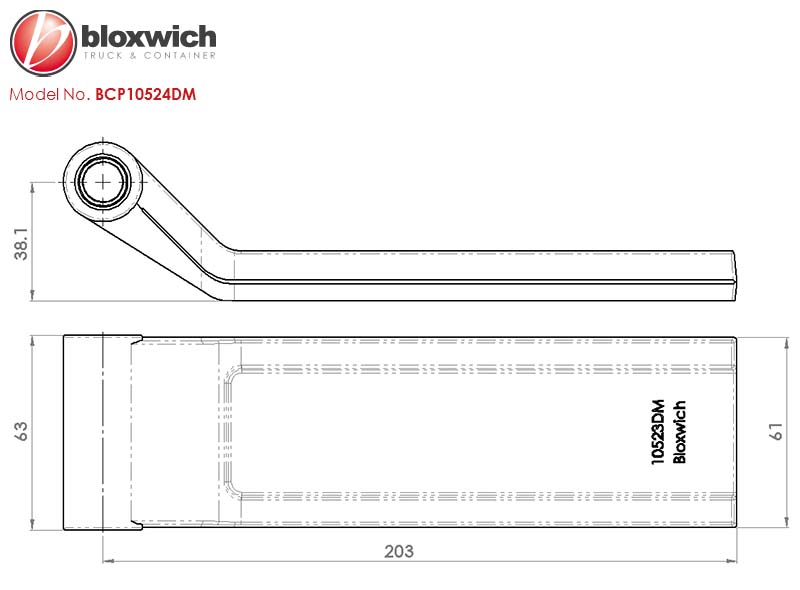

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.


Weight: 1.3 kg  Commodity No 830210   GTIN 5060345310511
