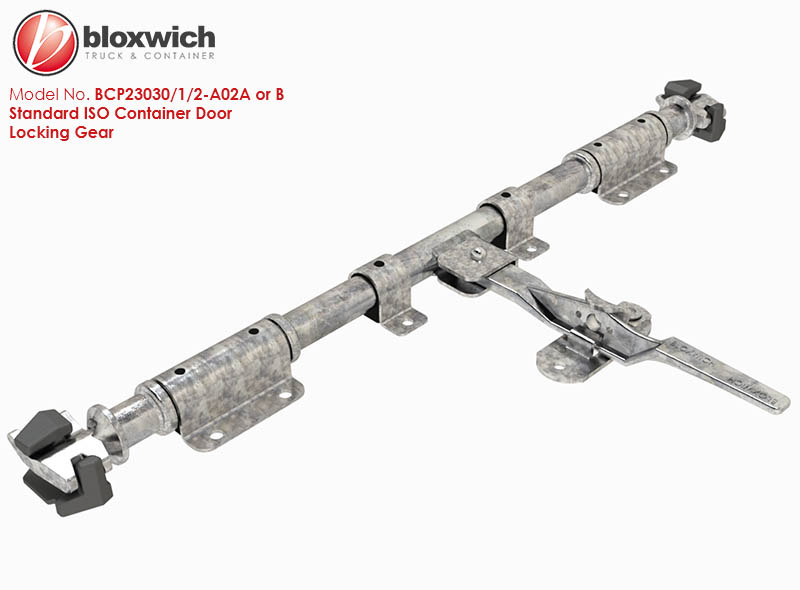

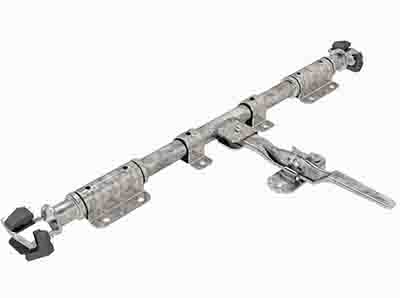

Bloxwich Standard Patent Design Mild Steel Door Gear: Standard ISO Container 34mm Door Locking Gear, Fully Welded, Bushed with Bolt on Brackets
Supplied in: Mild steel with galvanised finish as standard.
Use: Standard ISO container door locking gear design for use on 8', 8'6" and high cube ISO shipping containers. Fully welded and galvanised ready for you to just bolt onto to your container. Please use the drawing download option to check the sizes versus your existiing container and contact Bloxwich if any changes are required.
Set weight in plastic bag: 10.1/10.5/11.2 kg Commodity Code 830249 GTIN 5060345310849
Depending on the length of this product, at the checkout "Shipping And Handling/Class of Service" page our website may default to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.

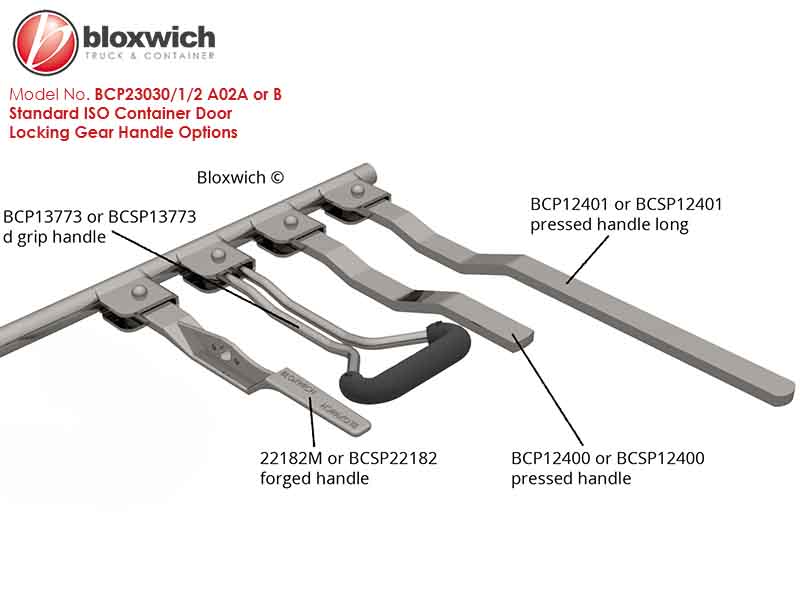

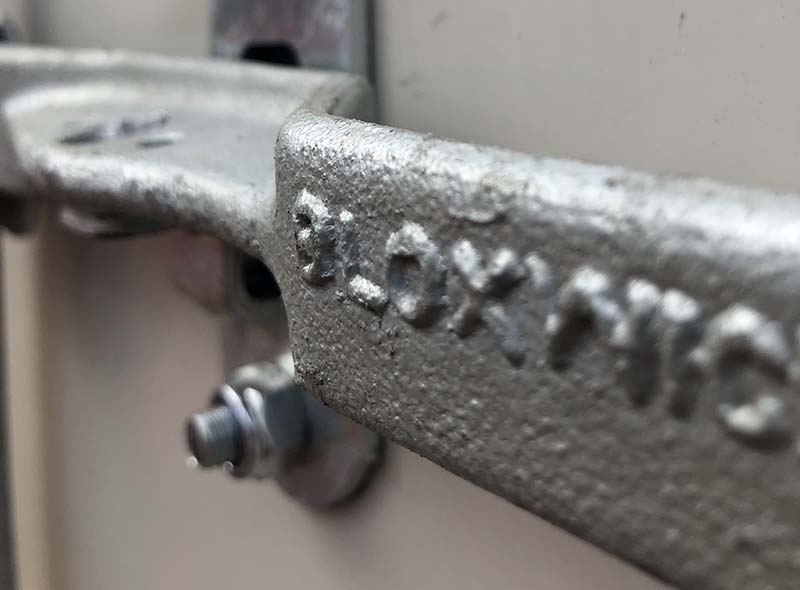

Handles: Forged, D grip, pressed or pressed long.
Cams & Keepers : Standard or seal cams and keepers. Note: If seal cams and keepers are selected, they are only fitted to the bottom of each rod and standard cams and keepers are still fitted at the top.
Only selected door gear models are currently shown online, numerous other combinations can be supplied to meet the demands of customers, please contact us for further details.
Q) How long does it take to make them? A) Usually around 5-10 working days.
Q) Can I buy a loose kit of parts? A) Yes, please see
BE2566M for details.
Fixing Kits & Gasket Sets
Fixing Contains 1 M10 x 35 set screw (BCP14887), 13 M10 x 30 set screws (BCP14886), 14 flat washers (BCP14885) & 14 nyloc nuts (BCP14884) all are galvanised.
BE2566M-GASKET-SET is for weld on keepers and contains, BCP13616E x 2, BCP13617E x 2 & BCP13618Ex 1 and BE2566M-GASKET-SET3 is for weld on keepers where the door panels are inset by 3mm from their frames and contains BCP13616E x 2, BCP13617E/4 x 2 & BCP13618E/4 x 1.

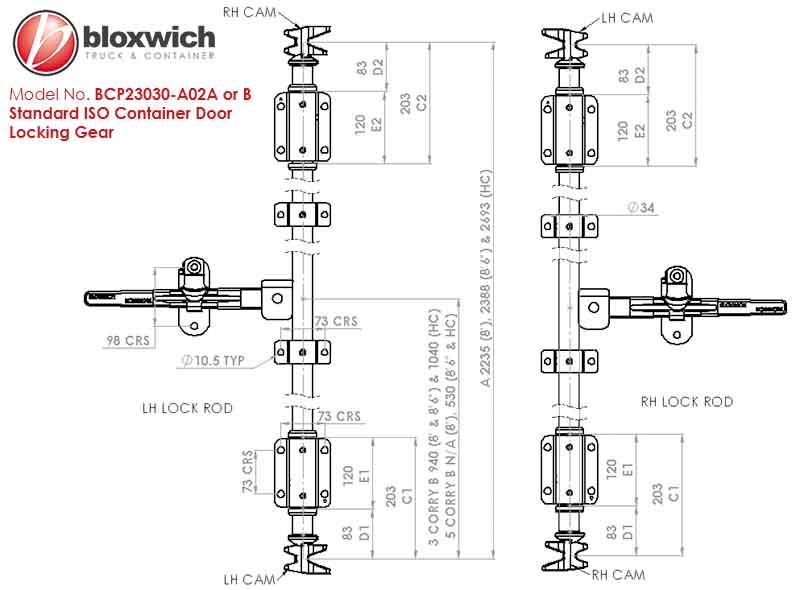

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
