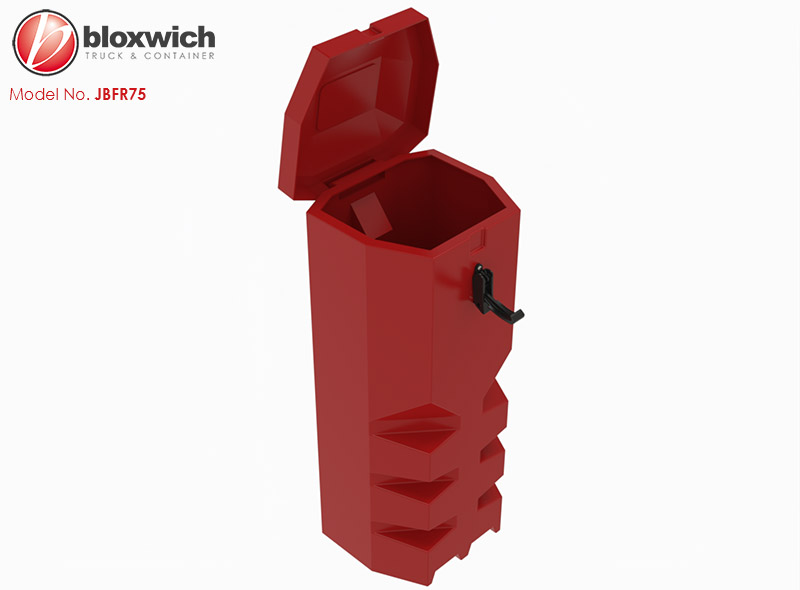

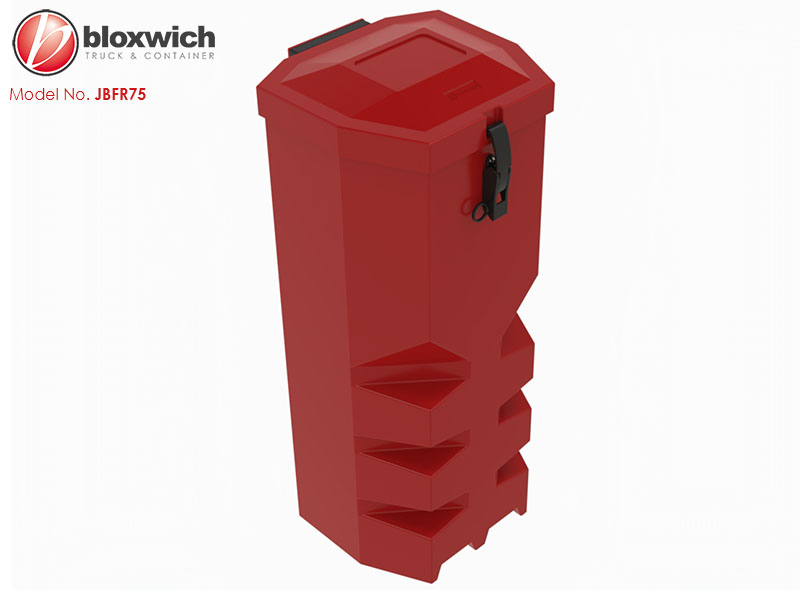

Bloxwich Standard Product: Jonesco JBF*75 Top Loading Fire Extinguisher Box 9-12kg

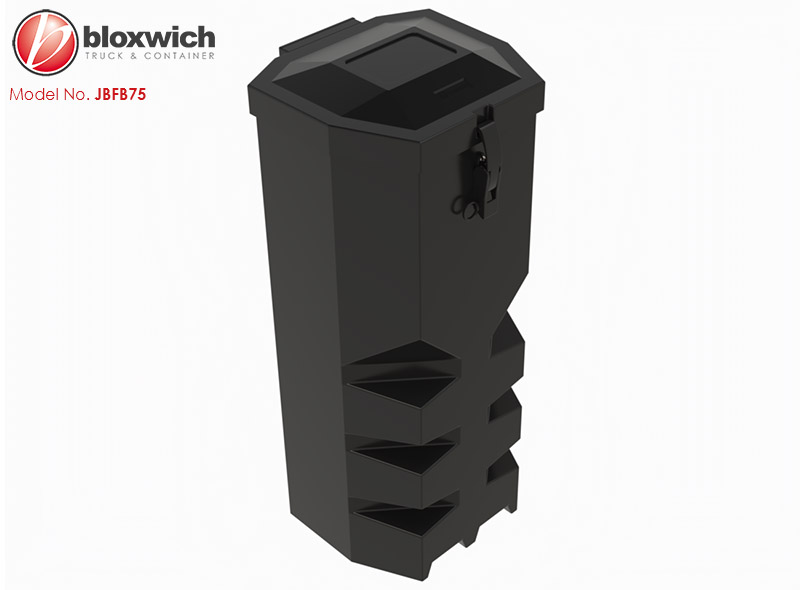

Supplied in: Red (*R) or black (*B) medium-density polyethylene
Use: Standard truck/trailer fire extinguisher box. Extinguisher(s): 1 x 9-12 kg, Max Ø: 230mm, Fixing Kit: KIT55/KIT56
Designed to be mounted on commercial vehicles, toggle and pin opening mechanism, complete with an internal tension strap to limit in-transit movement, type approved for vehicle fitment (can be safely installed within the side guard) in accordance with Regulation no. 73 (UN/ECE), kit available for mounting box to a vehicle at an angle of 30° or 60° (KIT55), kit also available for horizontally or vertically mounting box to a vehicle (KIT56) and supplied with fire label(s).
Weight: 6.5 kg Commodity Code GTIN 5060345316827

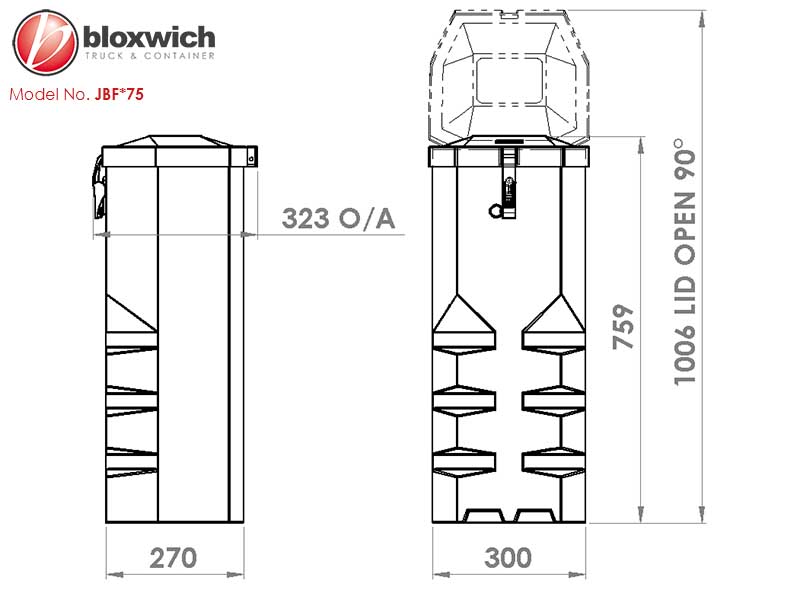

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
