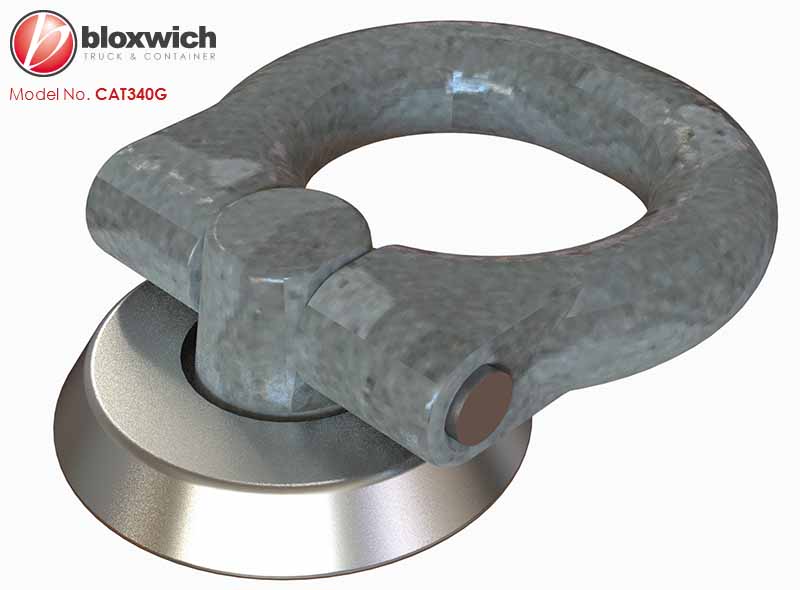

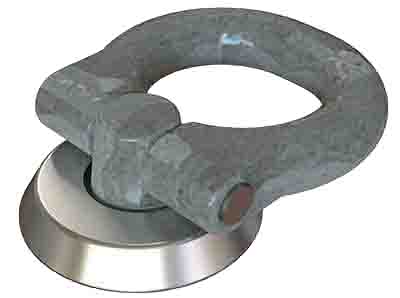

CAT340G SWL 2.0 T* Pivotal Lashing Ring
CAT340G SWL 2.0 T* Pivotal Lashing Ring - view 1DrawingCAT340G SWL 2.0 T* Pivotal Lashing Ring - view 3CAT340G SWL 2.0 T* Pivotal Lashing Ring - view 4

CAT340G SWL 2.0 T* Pivotal Lashing Ring

Price: £3.95 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: SWL 2.0 T* Pivotal Lashing Ring

Supplied in: Mild steel galvanised ring & pivot, stainless steel pin and mild steel zinc plated cleat

Use: Forged steel ring, universally jointed to withstand loads enforced in any direction

Weight: 378 g  Commodity No 830249   GTIN5060345310320

*
*


The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

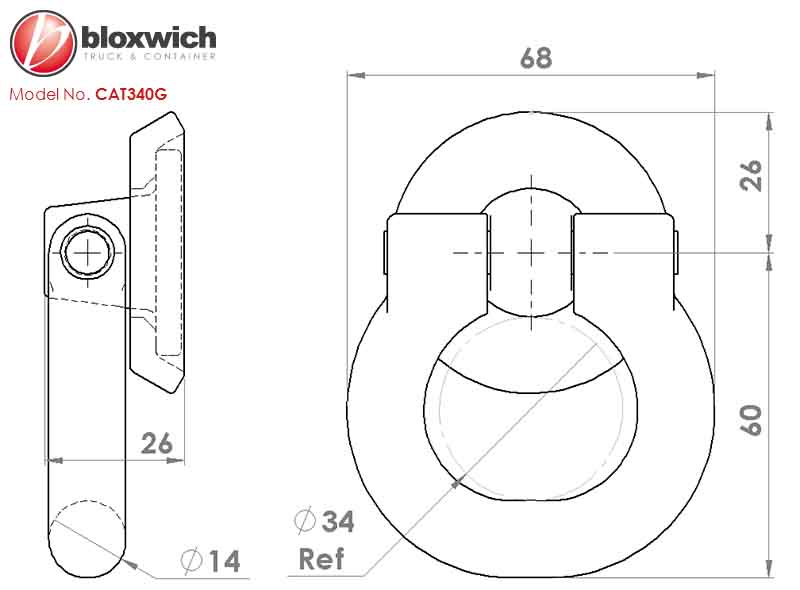

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
