Bloxwich Standard Patent Design: SWL 500kg* Pan Lashing Ring

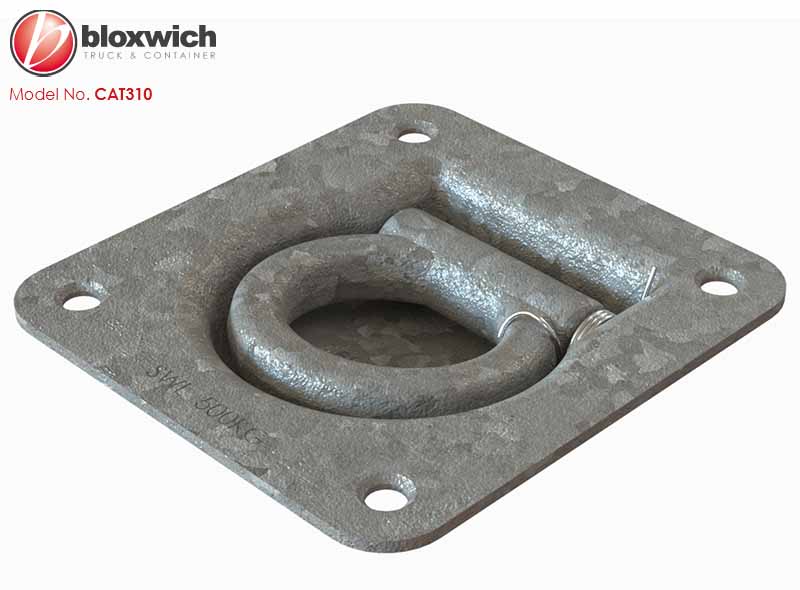

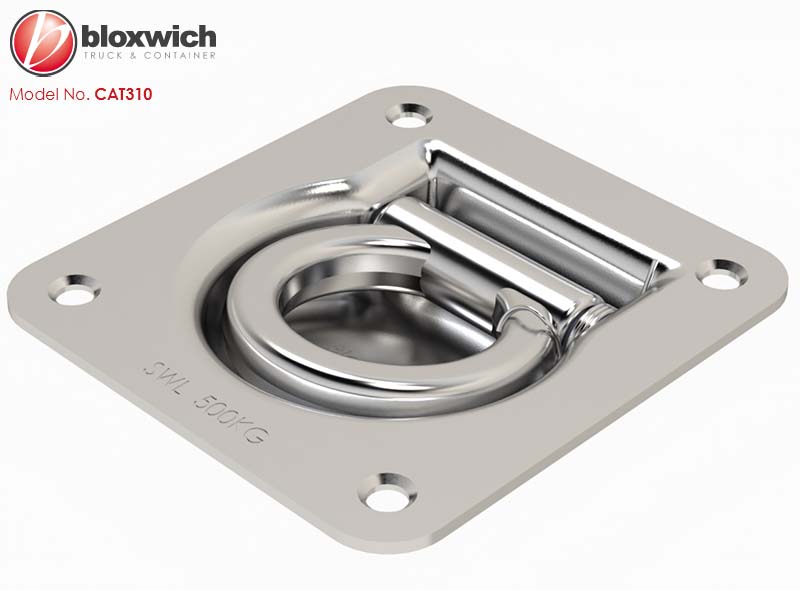

Supplied in: Stainless steel pin and spring (optional) with zinc plated or galvanised housing and lashing ring
Use: Bolt on design recessed pan lashing ring with optional spring to hold the ring inside the recessed pan when not in use
Weight: 480 g Commodity code 830249 GTIN 5060345310290
Designed by Bloxwich in 1967 old part number 22869.
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

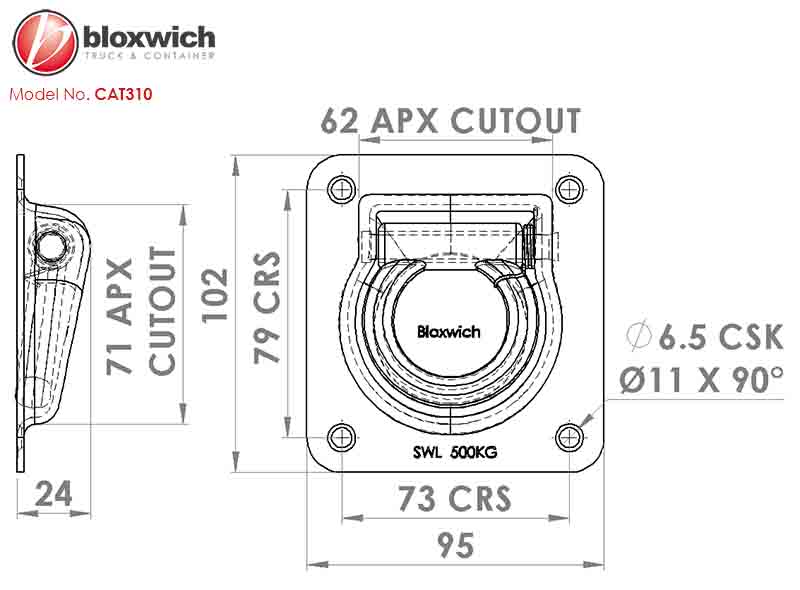

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
