Bloxwich Standard Patent Design: Heavy Duty Door Retainer Hook 300mm
Supplied in: Galvanised
Use: General purpose rivet/bolt-on extra door long retainer hook, commonly used for holding open wider container doors. Can be used with any Bloxwich catch plate.
Weight: 275 g Commodity No 830249 GTIN 5060345310139
Designed by Bloxwich in 1965. Replaced the original wire formed hooks fitted to the light duty hooks CAT110 and CAT140 etc as they were too easily damaged in harsh working environments
Click

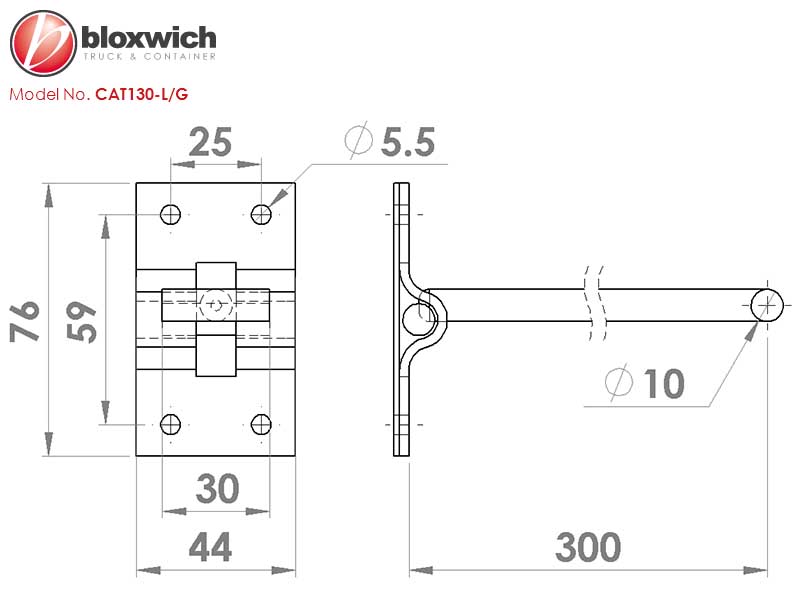

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
