Bloxwich Standard Patent Design: Heavy Duty Door Retainer Hook 98mm
Supplied in: Mild steel plate and forged link, zinc plated finish (other finishes available on request)
Use: General purpose rivet/bolt on door retainer hook. Most often used to hold open trailer and container doors, also used in various other industries and with other types of doors. Can be used with any Bloxwich catch plate. Forged heavy duty hook resists damage. Alternatively used as folding supports for shelves, bars and counters.
Weight: 180 g Commodity No 830249 GTIN 5060345310122
Designed by Bloxwich in 1965. Replaced the original wire formed hooks fitted to the light duty hooks CAT110 and CAT140 etc as they were too easily damaged in harsh working environments

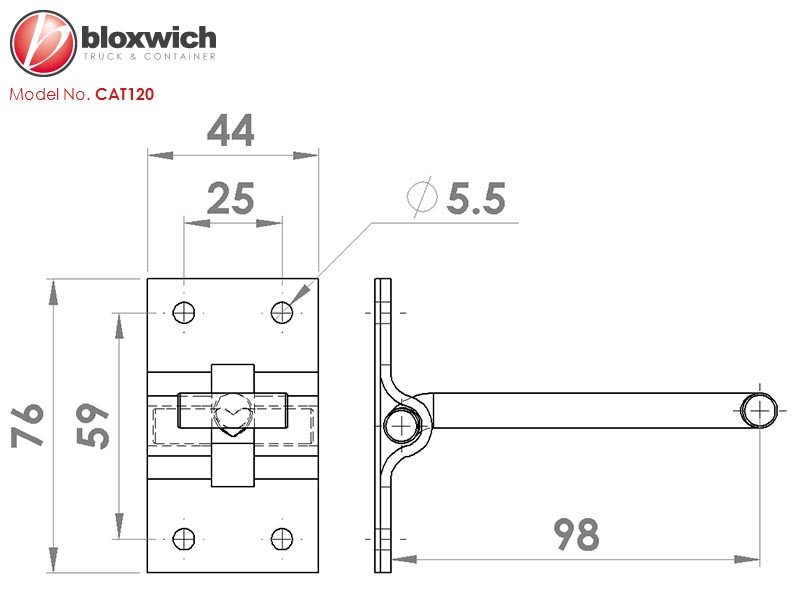

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
