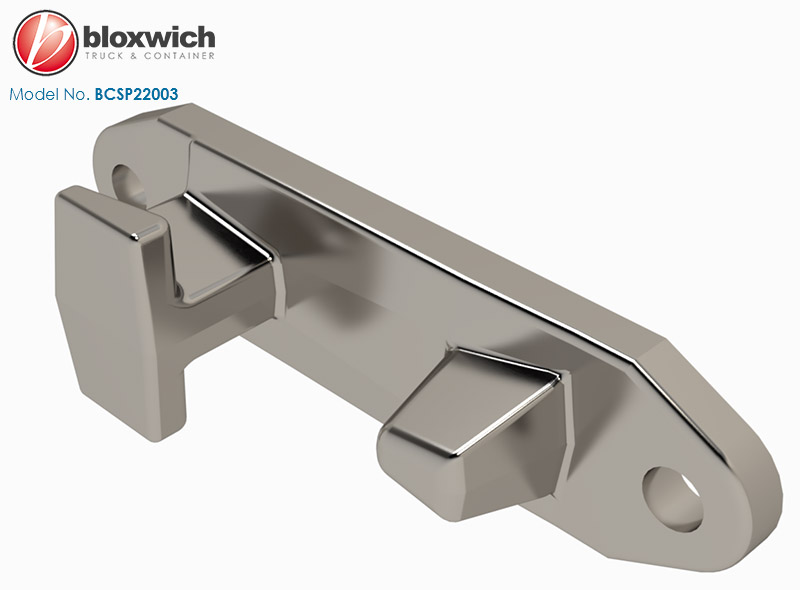

Bloxwich Standard Pat Design Stainless Steel Universal Keeper for Dia 22 Door Gear
Supplied in: 304 polished stainless steel
Use: BS1000 & BS2525 series door gear (replaces the BCSP12180/V Stainless Steel Keeper Universal for BS1000 Door Gear) and fits the BCSP22001 & BCSP22002 cams
Weight: 280 g Commodity Code 830249 GTIN 5060345318500

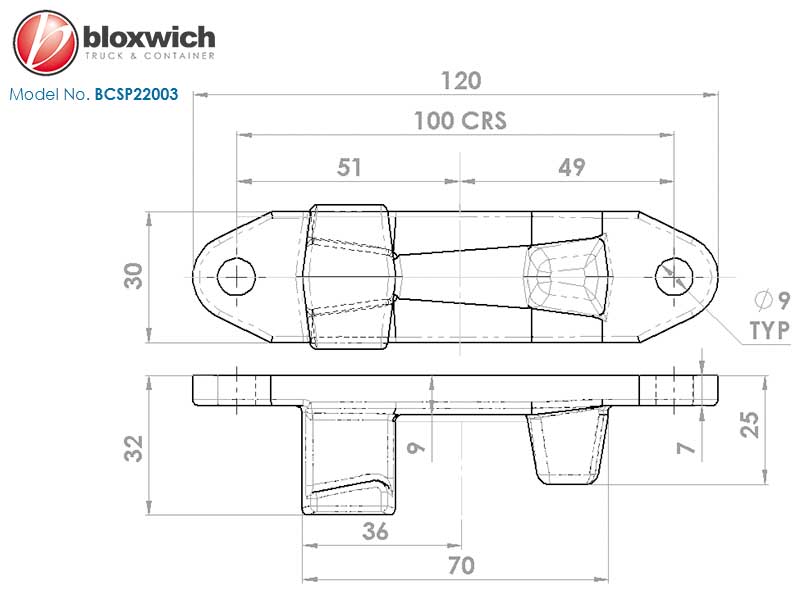

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
