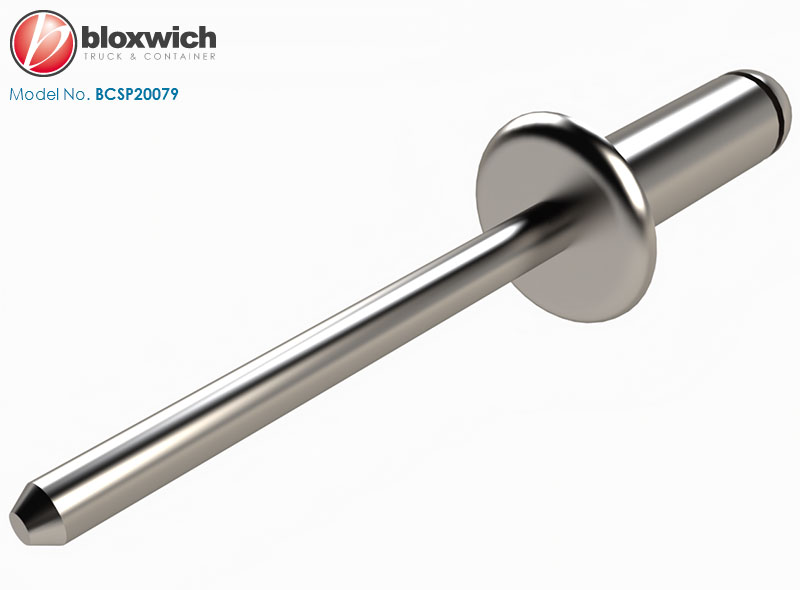

Bloxwich Standard Product: BCSP20079 Ø4.8mm x 15mm 304SS Multigrip Blind Rivet
Supplied in: 304 stainless steel.
Use: Along with BCSP14470 door seal retaining strips to fit J type container door seals and other items like data plates etc Grip range of 5.0 to 10.5mm make it suitable for fitting door seals and seal retaining strips and other container applications. Typically 84 are required for standard doors and 90 for high cube or 9'6" doors. Recommended drill size is 4.9 - 5.1mm.
Weight: 2.6 g Commodity No 731823 GTIN 5060345316100
Click

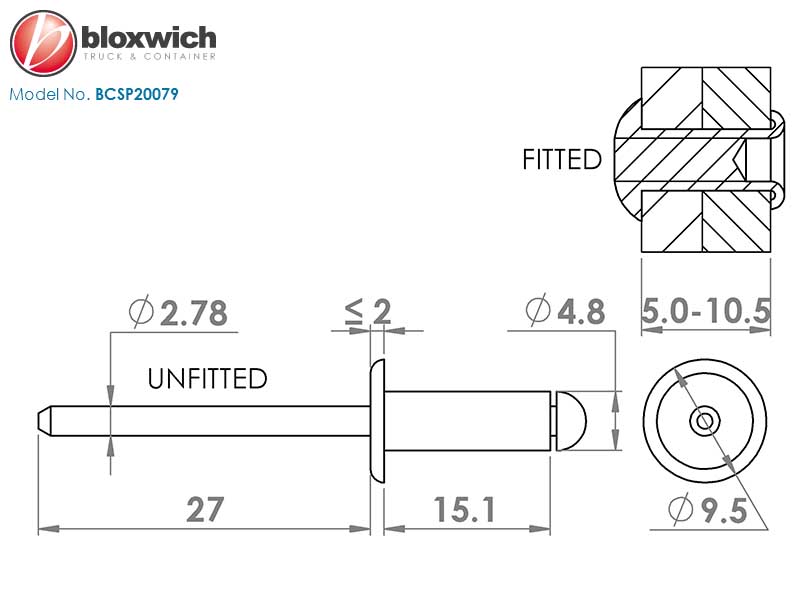

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
