Bloxwich Standard Patent Design: Door Retainer Chain & Carabine
Supplied in: 316 stainless steel chain and carabine

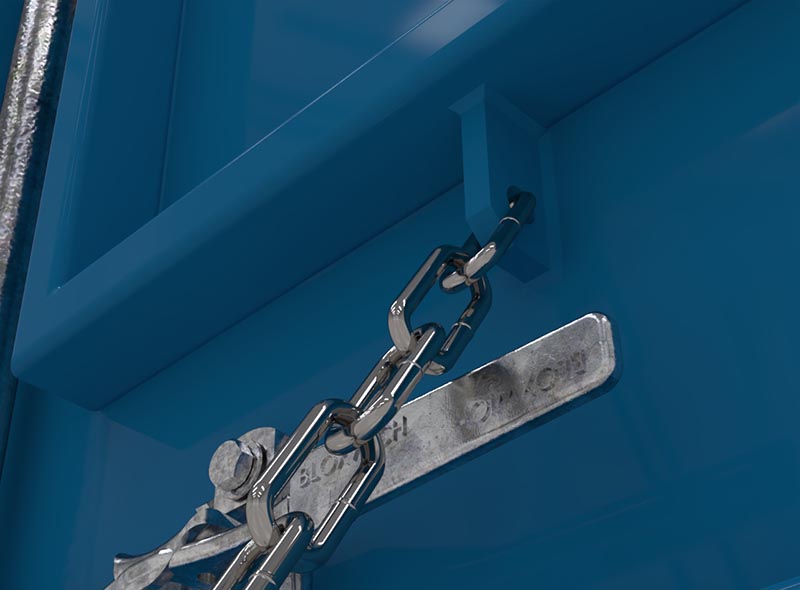

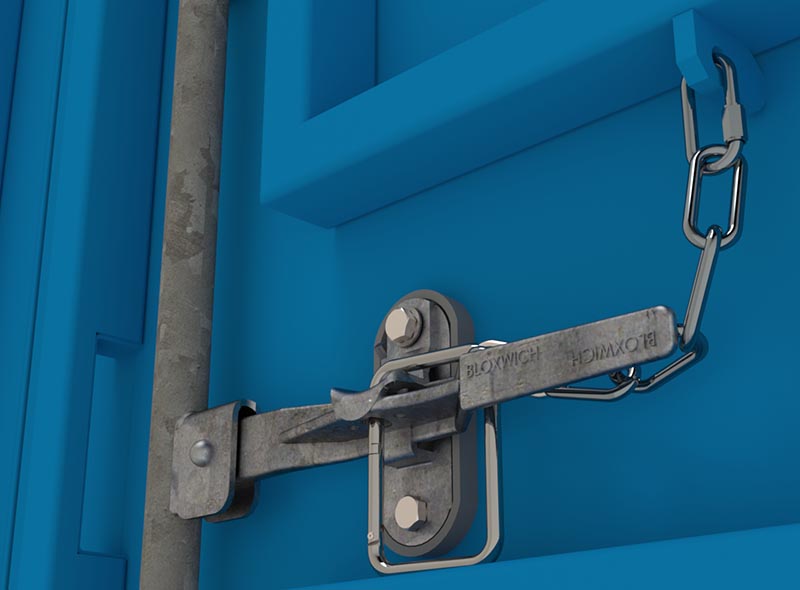

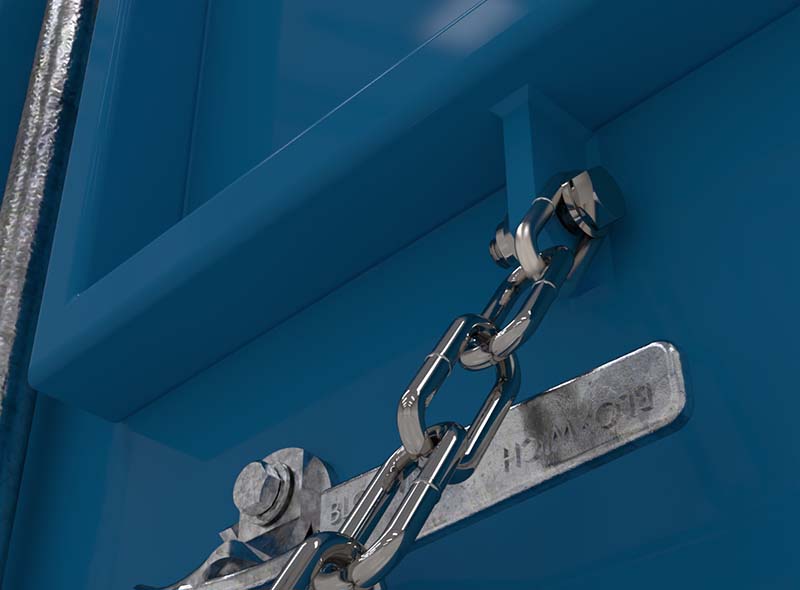

Use: With BCP15058 tag line pin box. Can also be fitted through the door gear catch (modification may be required). Other sizes, materials and combinations available on request. BCSP16021 6 or 7 link versions listed here but any number of links is possible, please contact us for details.

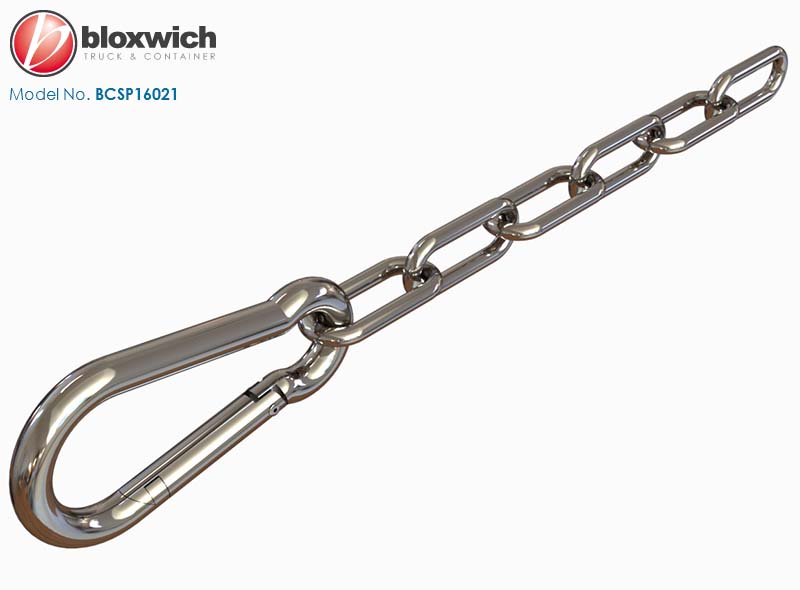

Carabine welded to chain. Chain can be cut and welded through BCP11354 or it can be bolted as shown
Weight: 354 g (6 links as shown) Commodity Code 830249 GTIN 5060345313048

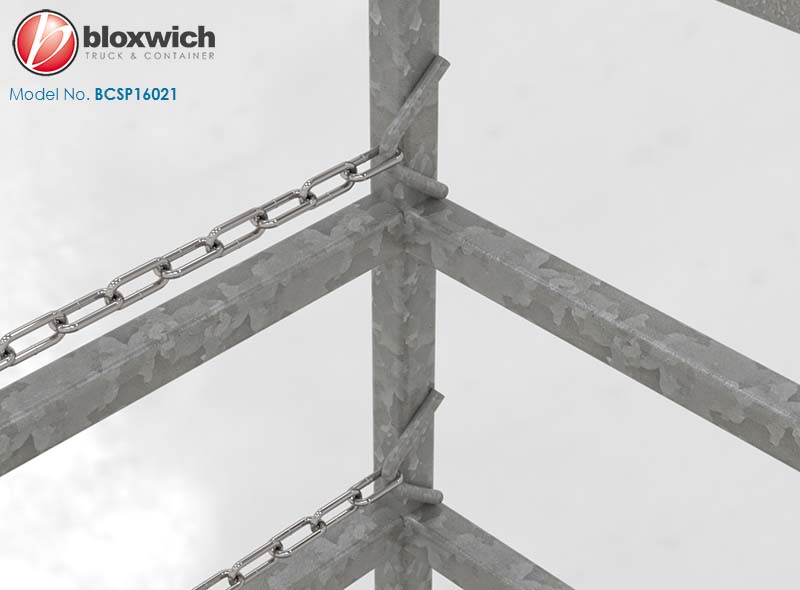

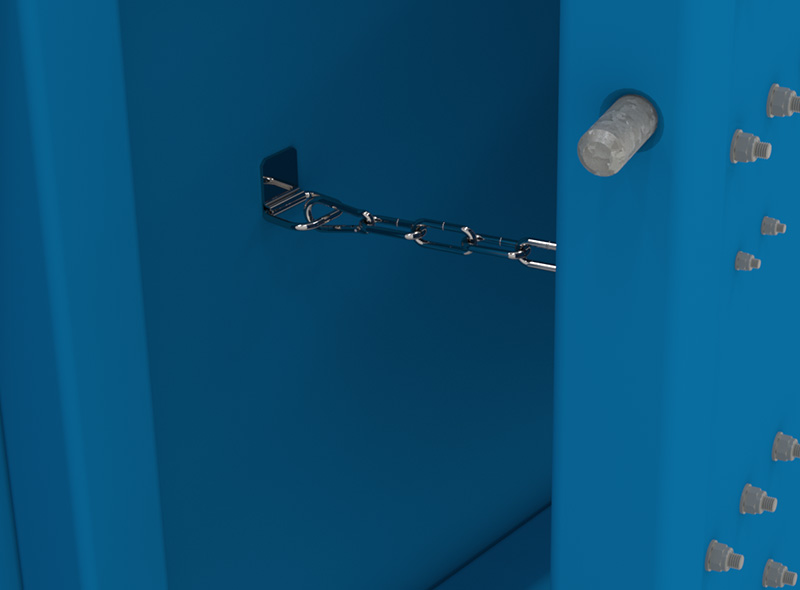

Originally developed for use in the Norwegian Oil & Gas industry to provide secondary door retention it can also be used to hold the doors open on trucks and containers
Click

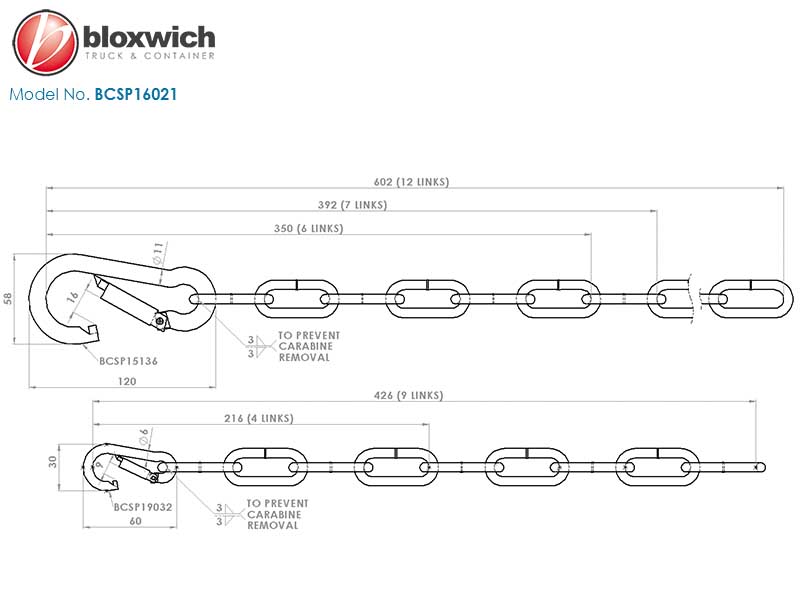

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
