BCSP16010 SWL 227kg* Haynet Ring Assembly
BCSP16010 SWL 227kg* Haynet Ring Assembly - view 1DrawingBCSP16010 SWL 227kg* Haynet Ring Assembly - view 3BCSP16010 SWL 227kg* Haynet Ring Assembly - view 4BCSP16010 SWL 227kg* Haynet Ring Assembly - view 5BCSP16010 SWL 227kg* Haynet Ring Assembly - view 6BCSP16010 SWL 227kg* Haynet Ring Assembly - view 7BCSP16010 SWL 227kg* Haynet Ring Assembly - view 8

BCSP16010 SWL 227kg* Haynet Ring Assembly

Price: £3.00 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: SWL 227kg* Haynet Ring

Supplied in: Stainless steel with injection moulded plastic back plate

Use: Bolt-on snag free rope lashing point. Note - bolt not provided

Weight: 95 g Commodity No 830249  GTIN 5060345313574

*
*


The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

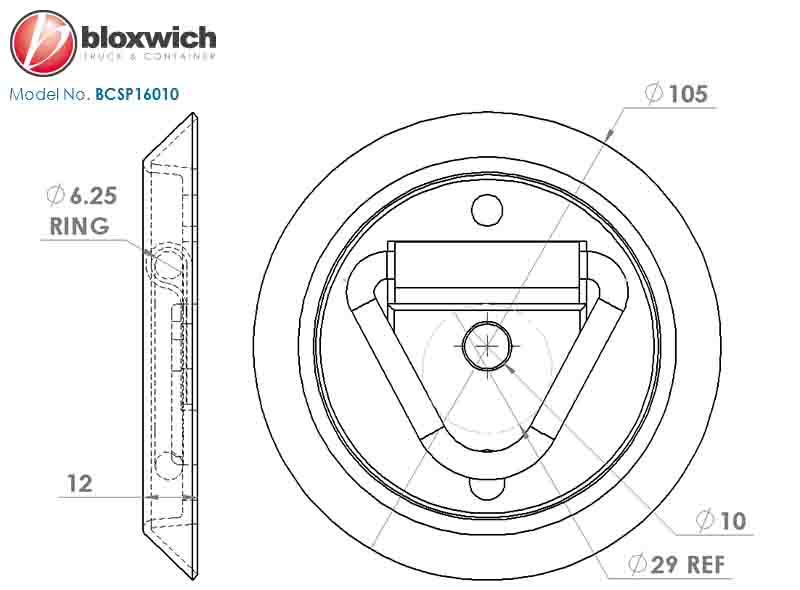

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
