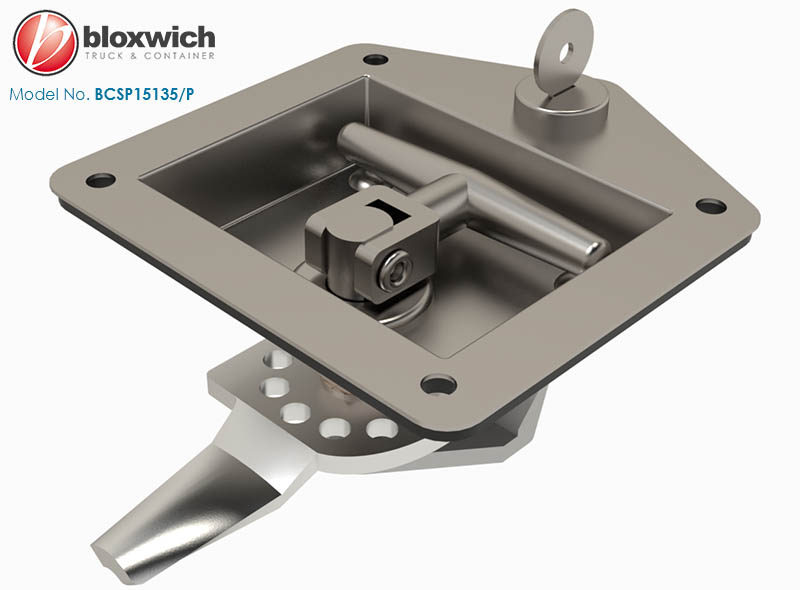

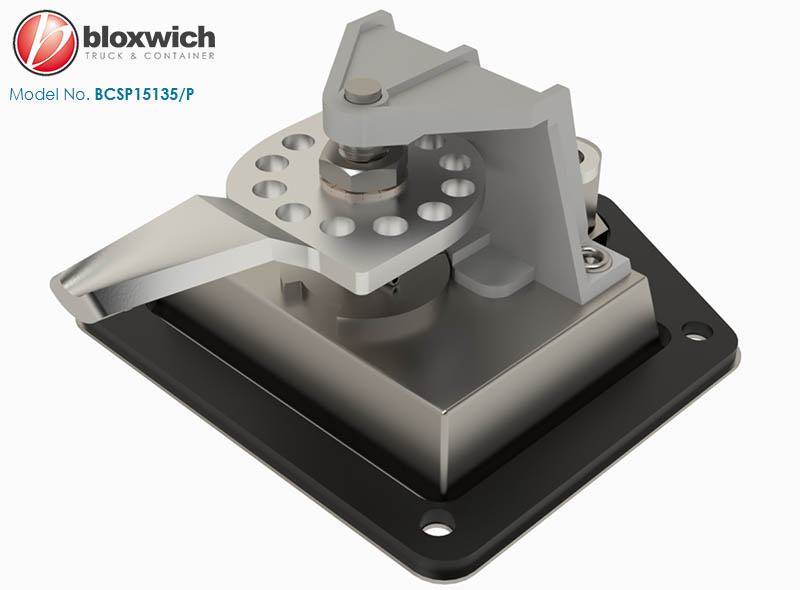

Bloxwich Standard Product: Recessed Drop Stainless Steel T Handle Catch c/w Lock & Ø4.8mm Holes
Supplied in: Polished stainless steel pan and outer items, plated inner items, rubber gasket and injection moulded plastic lock cover (can be removed if not required). Exact model supplied may differ slightly in appearance only

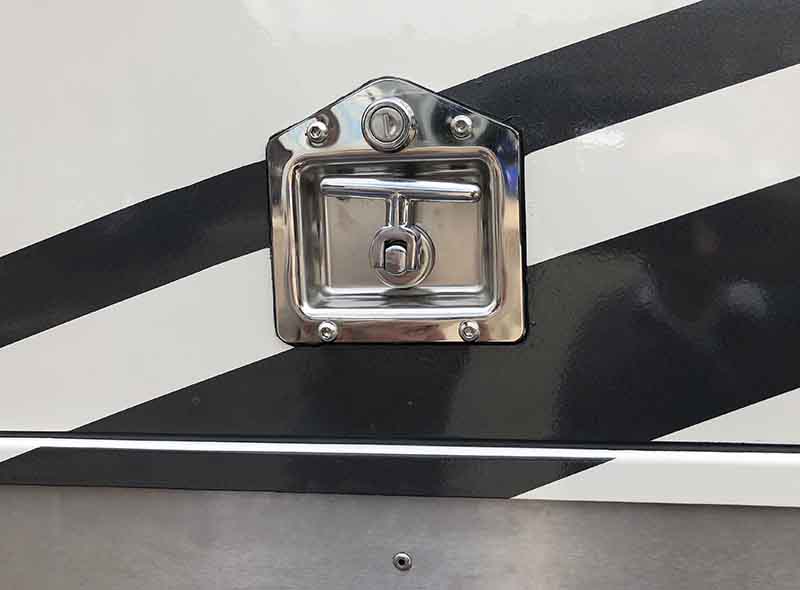

Use: General purpose T handle catch for access panels, toolboxes, vehicle compartments, generators, compressors and cabinets etc. Supplied with gasket, Ø6.5mm mounting holes and 2 keys. Keys can be removed in the locked and unlocked positions. Adjustable latch height. Can be turned into a 3-point locking system with the addition of rods, guides and pins (not supplied). Other versions are available on request.
Weight: 725 g Commodity Code 830249 GTIN 5060345312638

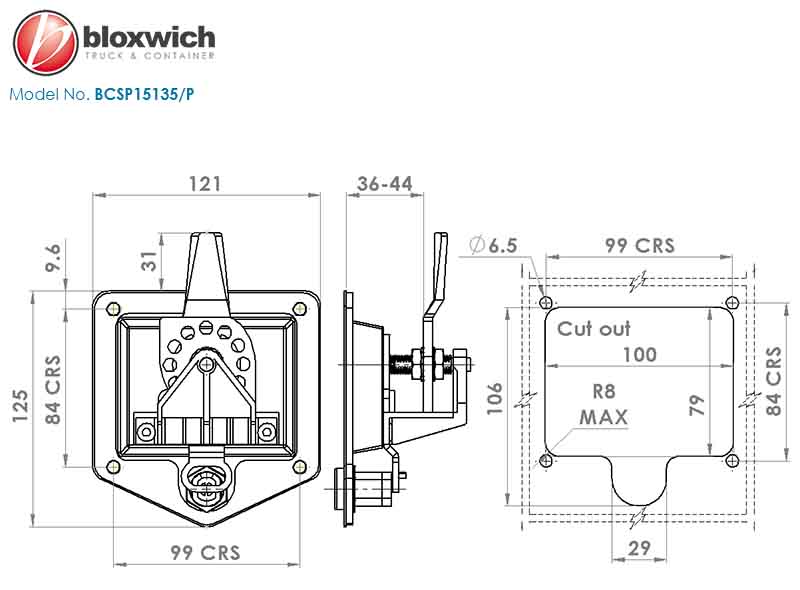

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
