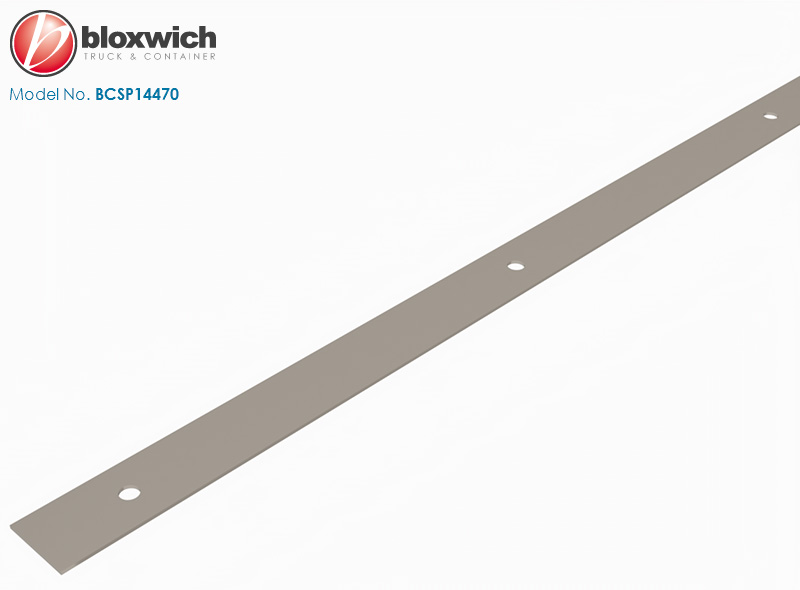

Bloxwich Standard Product: BCSP14470 Door Seal Retaining Strip
Supplied in: 304 stainless steel.

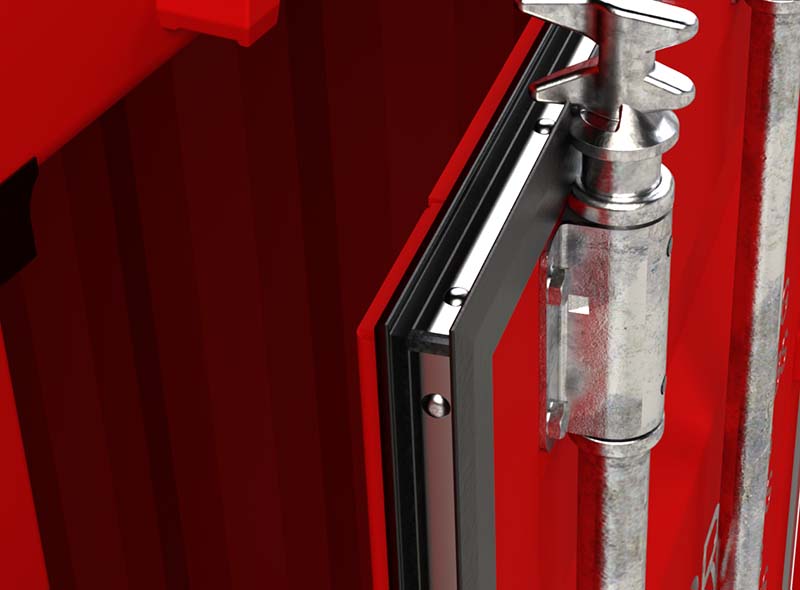

Use: Along with BCSP20079 blind rivets to fit J type container door seal BCP-CDS46J to shipping container doors etc.
The 1130mm length is fitted on the door horizontals of all standard width containers (4 per pair of doors). The 2249mm length is fitted on the door verticals of 8'6" tall containers (3 per pair of doors, as only one seal is fitted in the centre between the doors). The 2549mm length is fitted on the door verticals of high cube or 9'6" tall containers (3 per pair of doors, as only one seal is fitted in the centre between the doors).
Other lengths available on request, please contact us.
Weight: 179 g/368 g/417 g Commodity No 730661 GTIN 5060345316094
Click

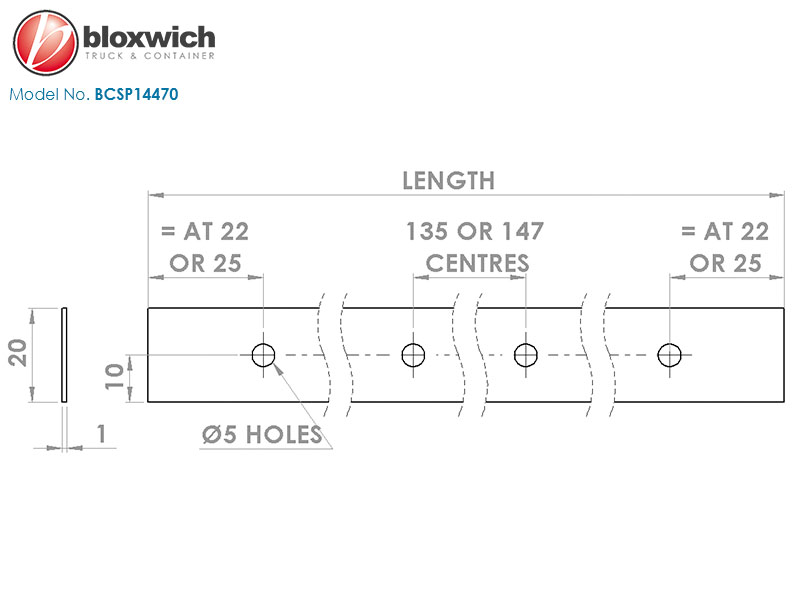

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
