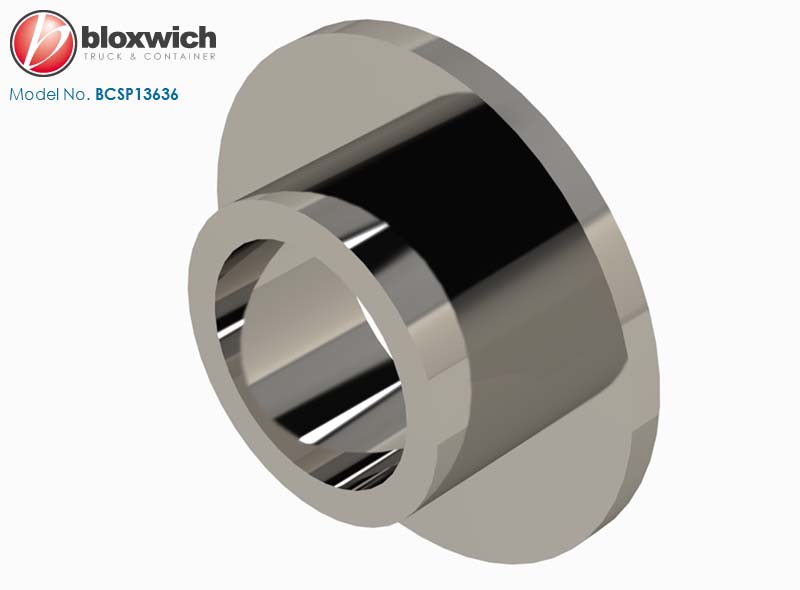

BCSP13636 Stainless Steel Bush for Catch & Retainer

Bloxwich Standard Pat Design Bush: Stainless Steel Bush for Catch & Retainer

Supplied in: 304 stainless steel

Use: Bush for use along with catch and retainer to secure BCSP22182M (forged handle) on Ø27 or Ø34mm door gear

Weight: 9 g  Commodity Code 830249  GTIN 5060345311884

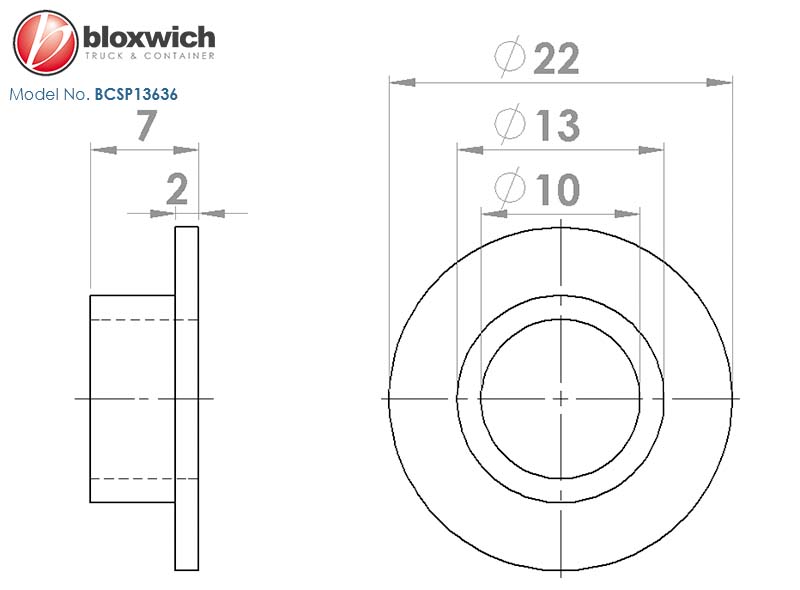

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
