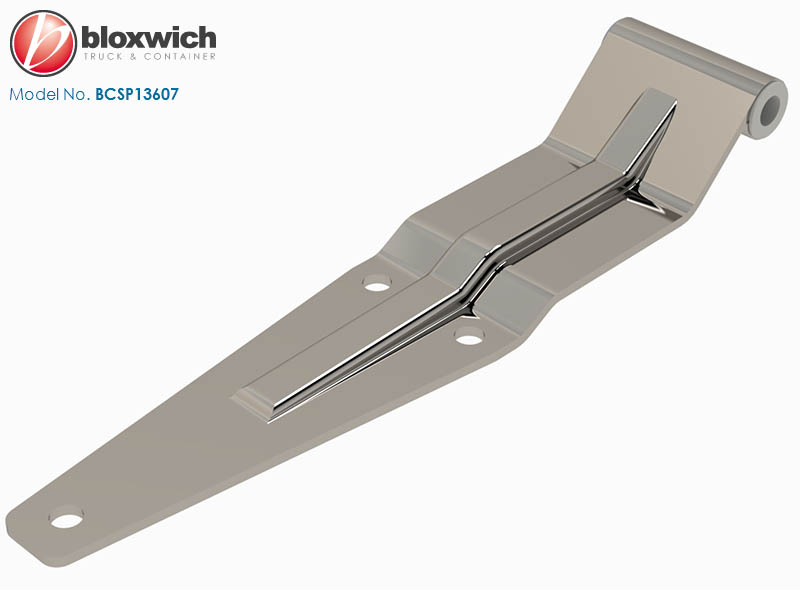

BCSP13607 Stainless Steel Pressed Hinge 312mm
BCSP13607 Stainless Steel Pressed Hinge 312mm - view 1DrawingBCSP13607 Stainless Steel Pressed Hinge 312mm - view 3Bush Options

BCSP13607 Stainless Steel Pressed Hinge 312mm

Price: 11.34 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: Stainless Steel Pressed Hinge 312mm

Supplied in: 304 stainless steel, self colour or polished

Use: Bolt-on design, bushed to suit M12 bolt or Ø12 stainless steel hinge pin or 1/2" bolt or Ø12.7 hinge pin. Narrow hinge width can help when fitting directly to door or gate frames etc.

Weight: 765 g   Commodity No 830210   GTIN 5060345312799

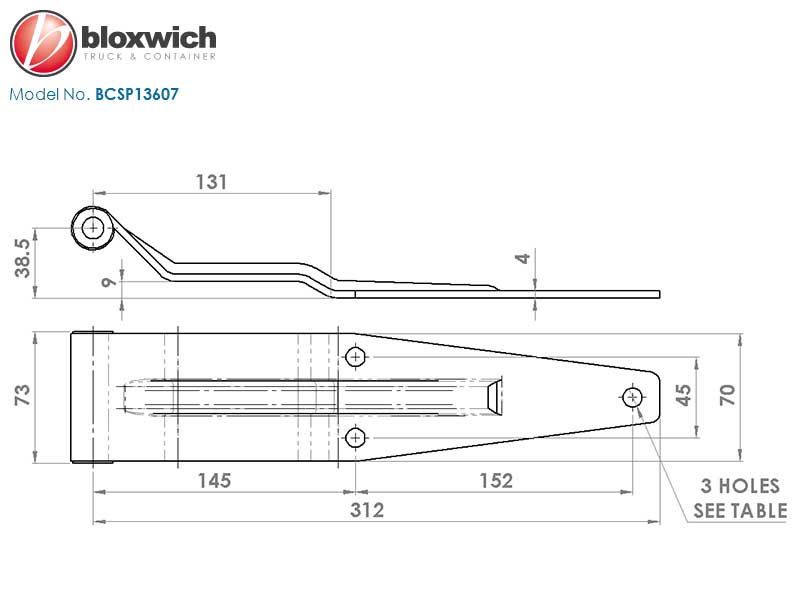

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
