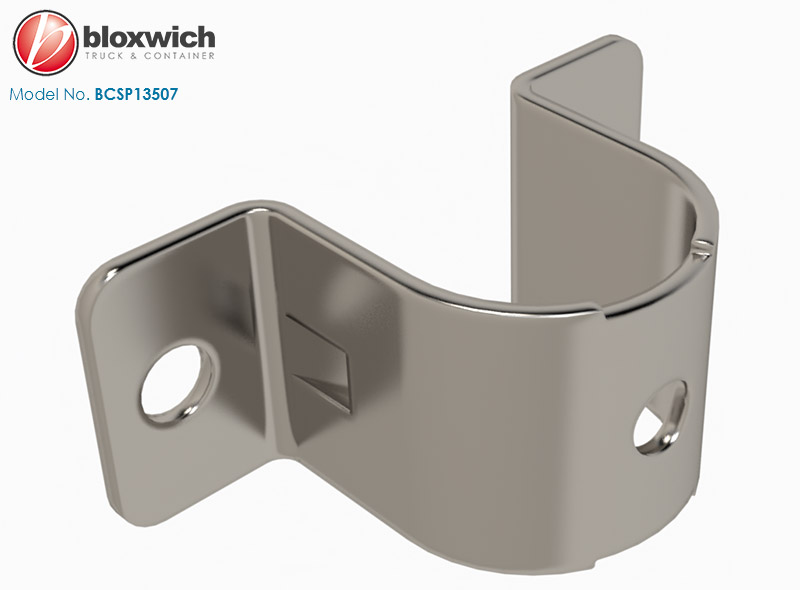

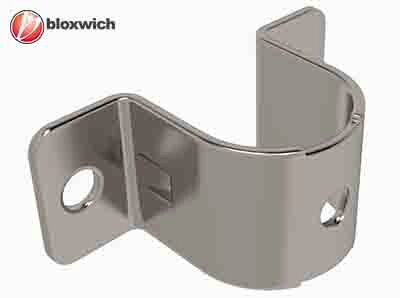

BCSP13507 Stainless Steel Bearing Bracket (Outer Small)

Bloxwich Standard Design: Stainless Steel Bearing Bracket (Outer Small)

Supplied in: 304 stainless steel

Use: On BS2566 and BS3566 Ø34mm steel door gear along with bush BCP13596

Weight 110 g  Commodity Code 830249  GTIN 5060345311846

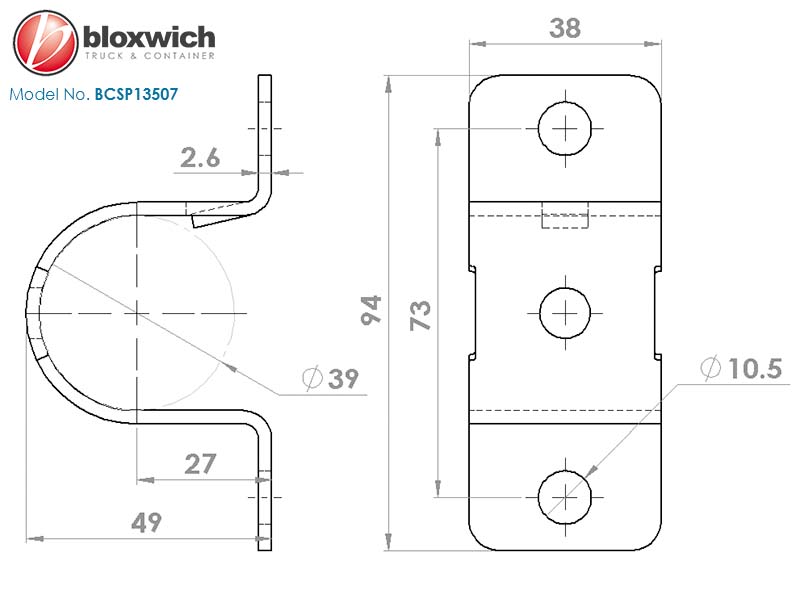

Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
