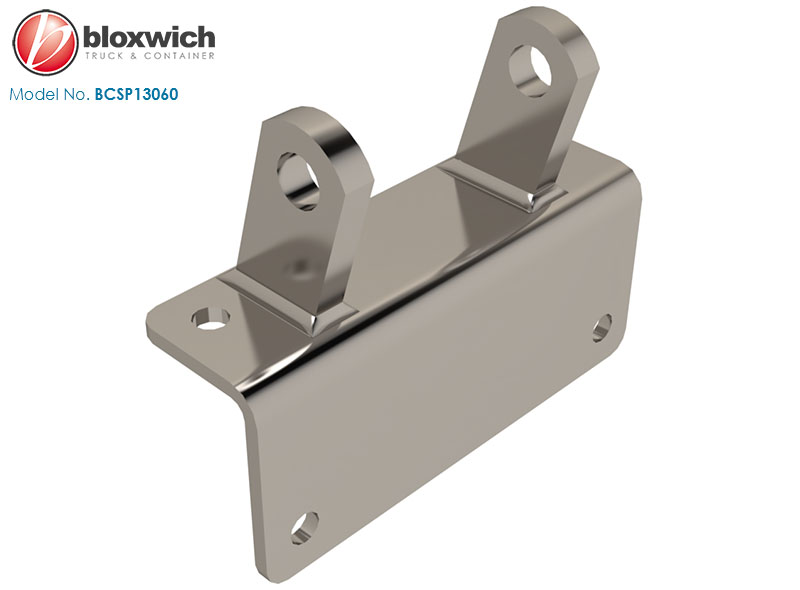

BCSP13060 Mild Steel Bolt on Corner Hinge Bracket 64mm (Offset)

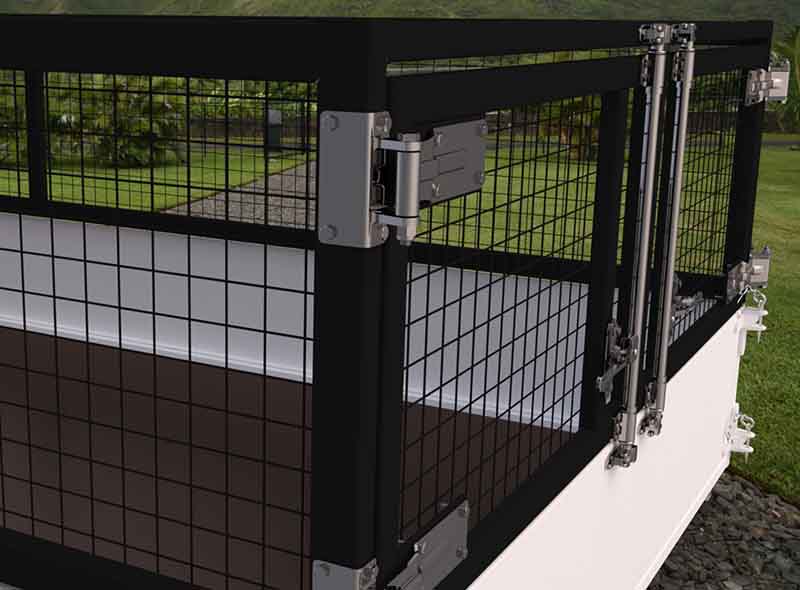

BCSP13060 Mild Steel Bolt on Corner Hinge Bracket 64mm (Offset) - view 1DrawingIn use

BCSP13060 Mild Steel Bolt on Corner Hinge Bracket 64mm (Offset)

Price: £5.99 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: Mild Steel Bolt on Corner Hinge Bracket 64mm (Offset)

Supplied in: Electro Polished 304 stainless steel

Use: Pivot hole size to suit 1/2" bolt or Ø12.7 hinge pin. Side fixing holes add strength particularly when fitted to wooden or aluminium corner posts.

Weight: 500 g  Commodity No 830249  GTIN 5060345316407

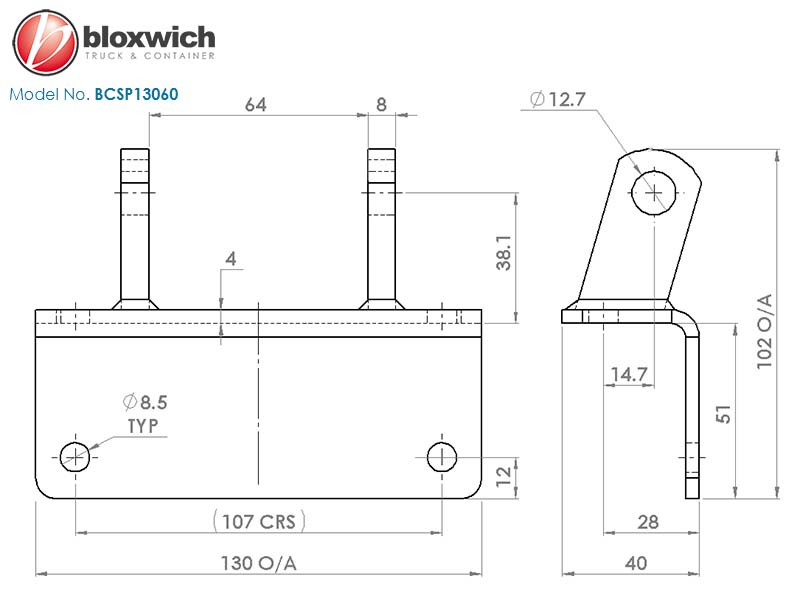

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
