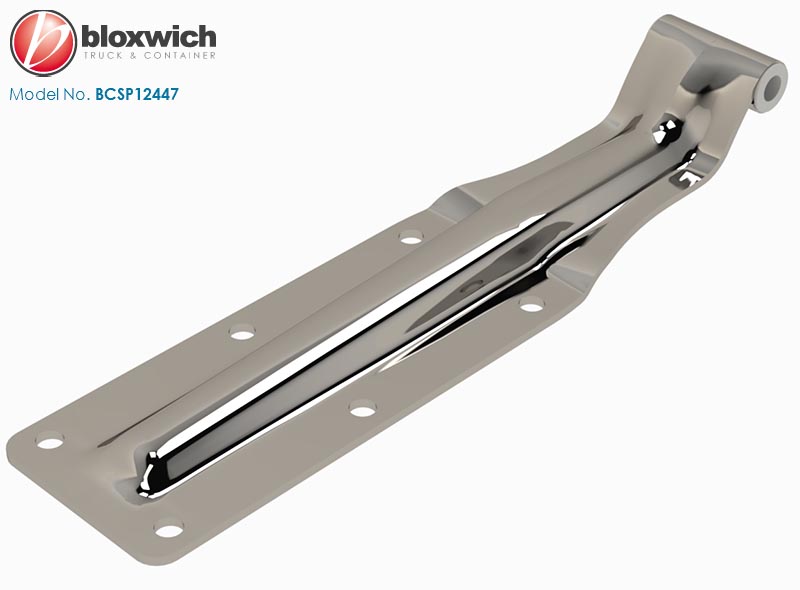

Bloxwich Standard Patent Design: Stainless Steel Pressed Hinge 356mm
Supplied in: 304 stainless steel, self colour or polished
Use: Bolt-on design, bushed to suit M12 bolt or Ø12 stainless steel hinge pin or 1/2" bolt or Ø12.7 hinge pin
Weight: 1.1 kg Commodity No 830210 GTIN 5060345312805
Click to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
