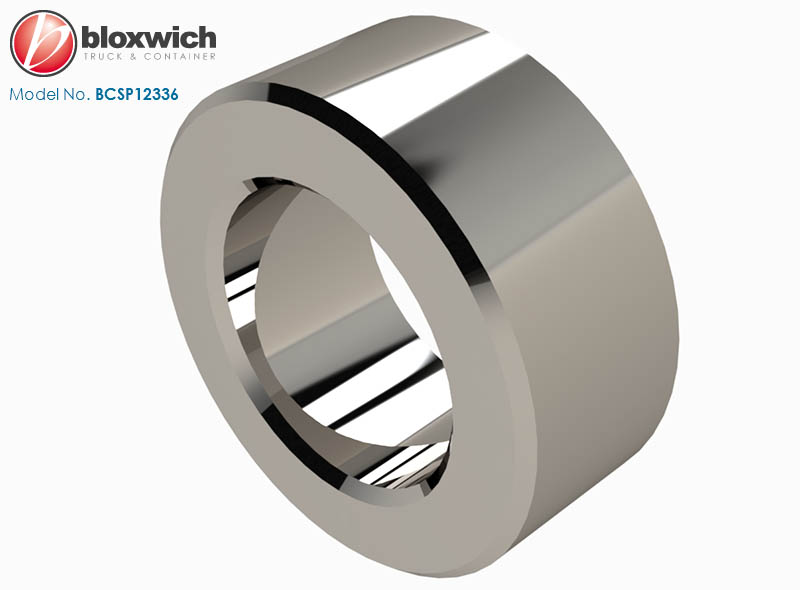

BCSP12336 Hinge Pin Collar
BCSP12336 Hinge Pin Collar - view 1Drawing

BCSP12336 Hinge Pin Collar

Price: £1.32 (ex VAT)



Description
Description


Bloxwich Standard Part: Hinge Pin Collar

Supplied in: 304 stainless steel

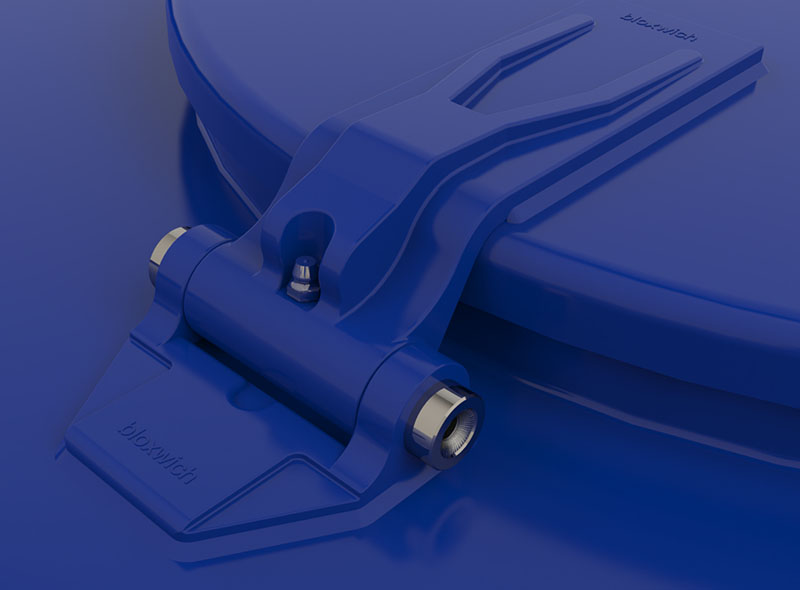

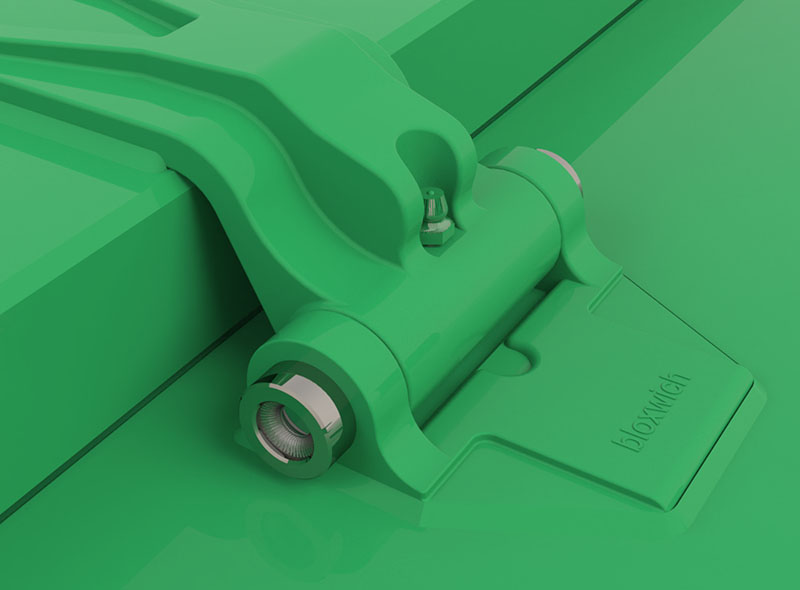

Use: Weld on collar for use with Bloxwich hinge pins, /20 hole size to suit Ø12 hinge pins or M/20 version suits Ø12.7 hinge pins. Provides greater security than E clips but also allows removal without damaging the hinge, hinge butts or brackets when required as collars are welded to the pins.

Weight: 13 g  Commodity No 830249   GTIN 5060345313536

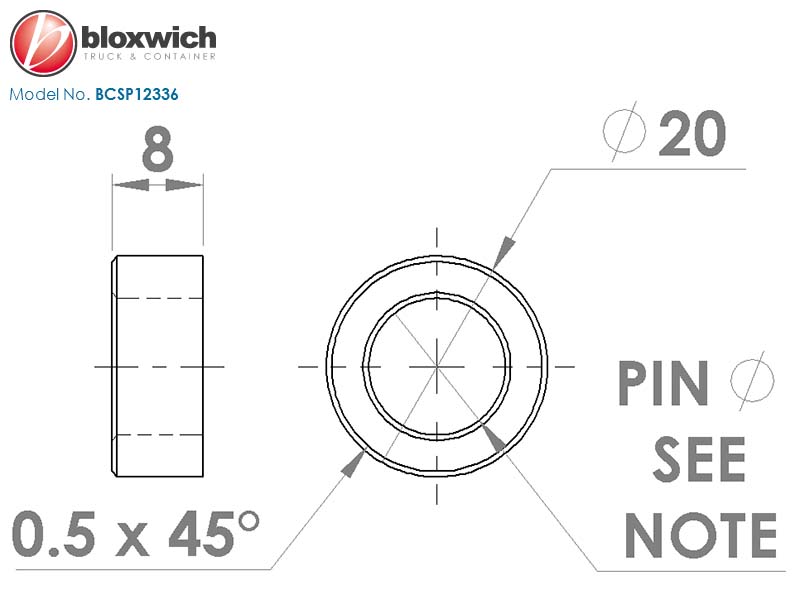

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
