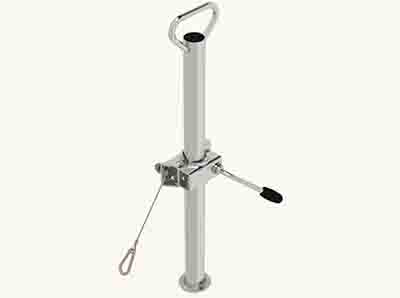

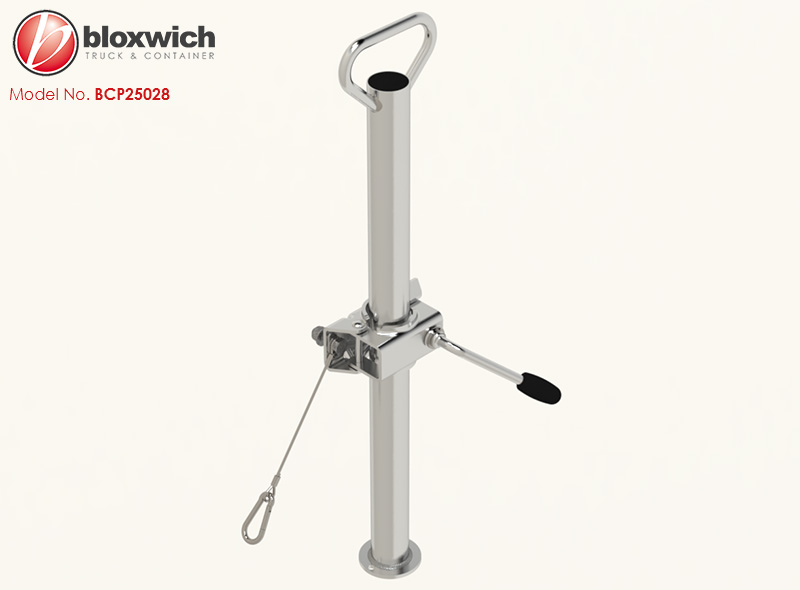

Bloxwich Standard Product: Dia 42mm Prop Stand and Split Clamp Set
Supplied in: Mild steel, zinc plated with 316 stainless steel safety lanyard
Use: Bolt on dia 42mm prop stand with handle, split clamp and safety lanyard set for use on trailers. Typically used when trailers are unhitched from the tow vehicle to prevent the trailer from tilting forwards or backwards when loads are added. BCSP17024B200SS safety lanyard prevents prop stands accidentally dropping down when not in use. 2 M10 x 35 set screws (BCP14887), 2 flat washers (BCP14885) & 2 nyloc nuts (BCP14884) all are galvanised also supplied for fitting.
Weight: 3.7 kg Commodity Code 830249 GTIN 5060345318449
Click

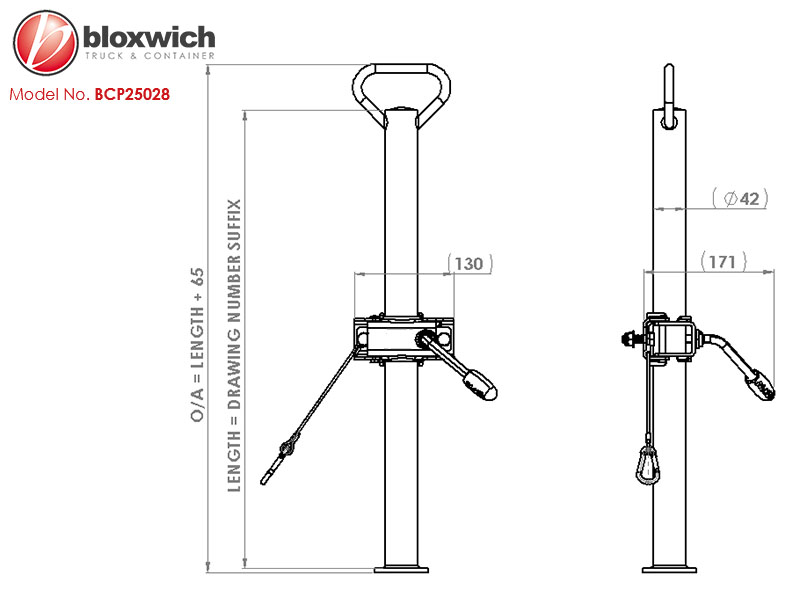

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
