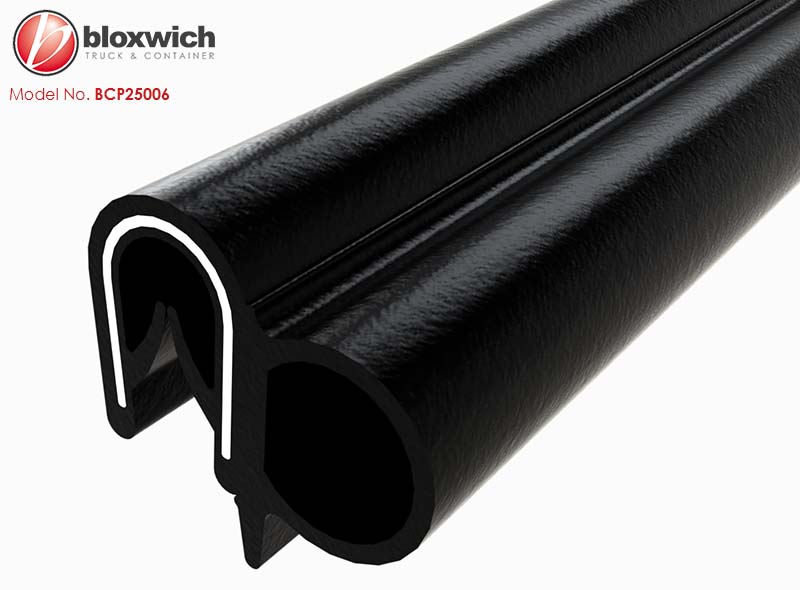

Bloxwich Standard Product: BCP25006 Side/Edge Seal
Supplied in: 50m rolls. Black in colour. PVC edging, EPDM sponge rubber seal with internal steel carrier. Flexible and compressible. Please contact us for the full specification.

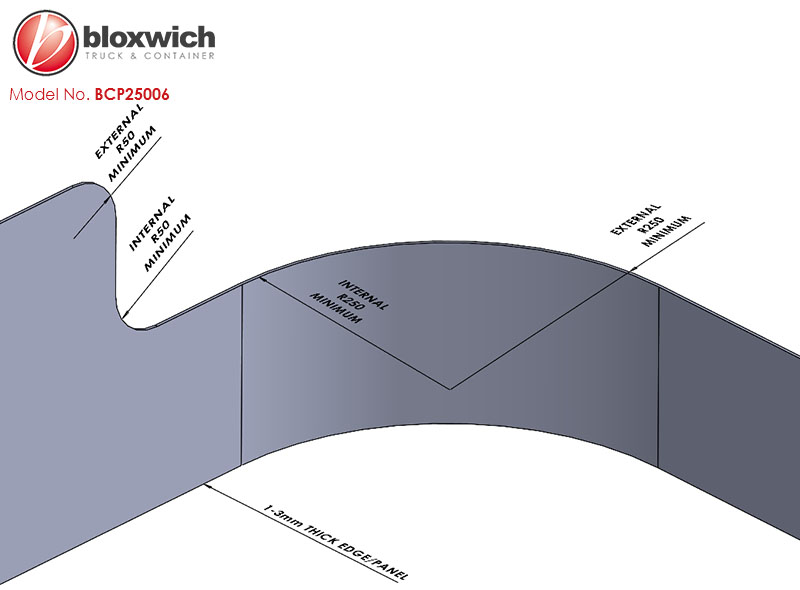

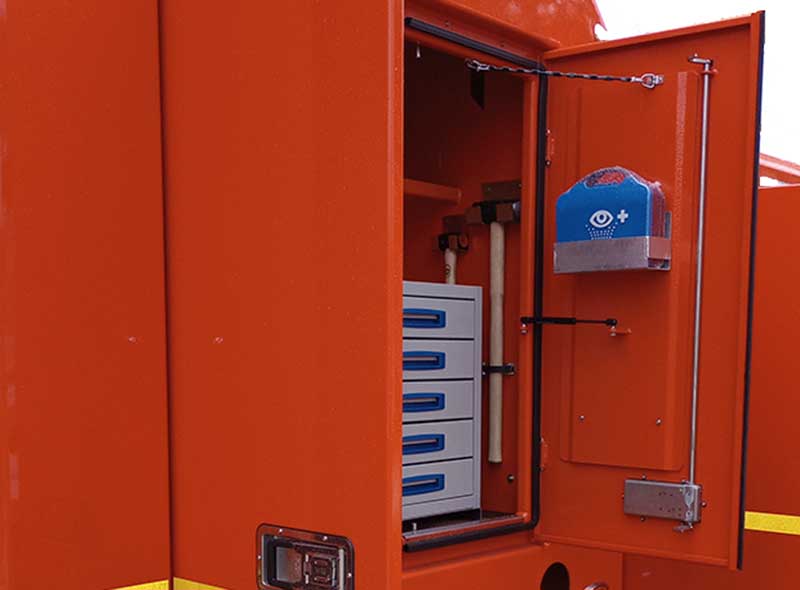

Use: Standard side/edge type door seal for smaller doors and access panels etc also known as "bubble" or "car door seal". Fitted onto flat bar or angle edges or plate edges for doors to form a seal against by compressing the bubble slightly (3-6mm recommended). Suitable for use in -10 to 60°C. Other types available on request, please contact us. To fit place the joint at the least critical point for leakage or accidental removal in use (on doors etc.). Start from one end or near the centre and press or gently hammer (rubber mallet) the seal onto the fitting edges and work your way round to the joint. Fully fit one end and then butt the other up to it (trim to length as required) and press the final part of the seal into position. There should be no gap at the joint after fitting.
Weight: 7.6 kg Commodity No 400811 GTIN 5060345318241

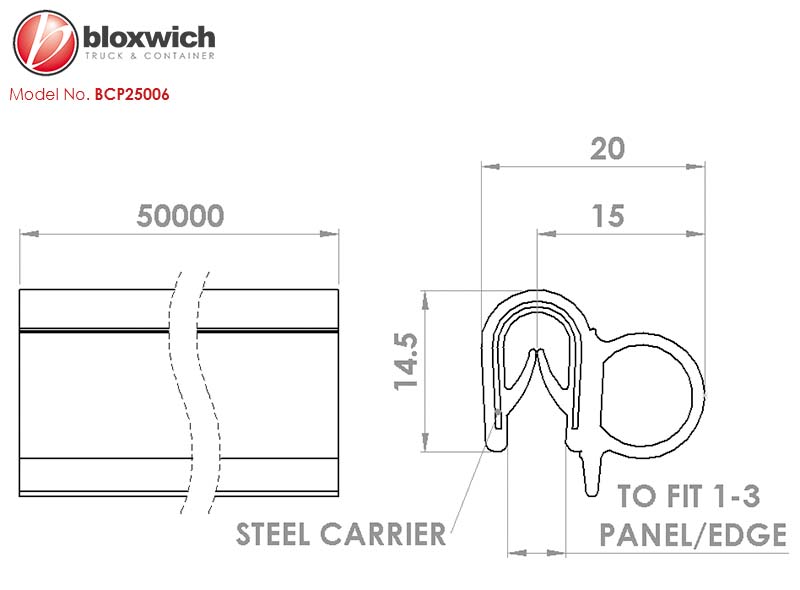

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
