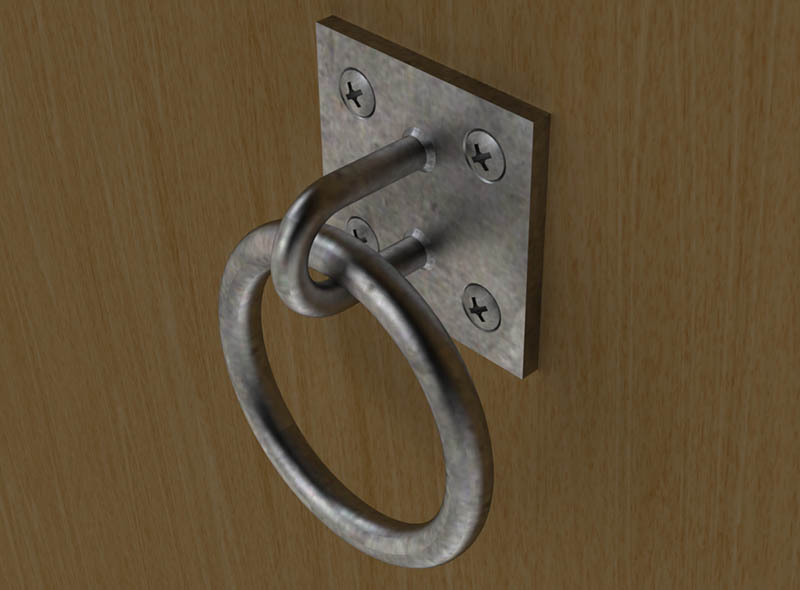

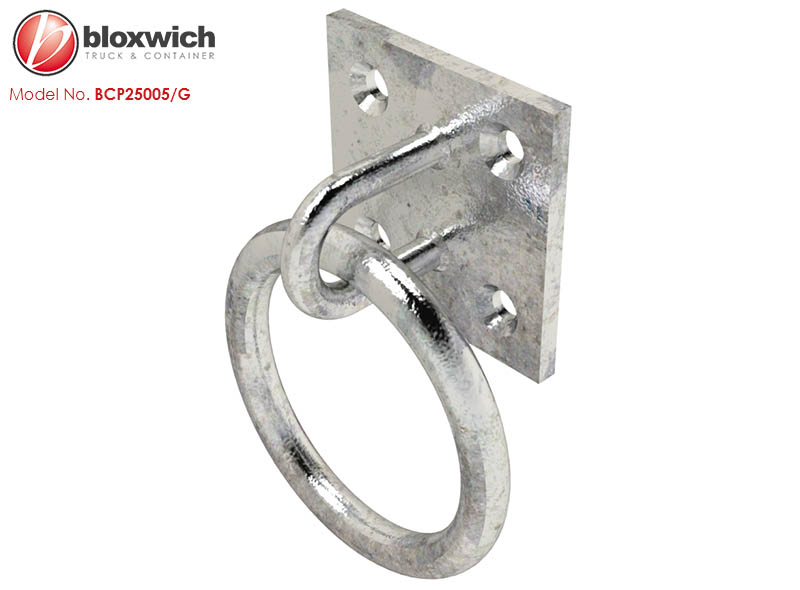

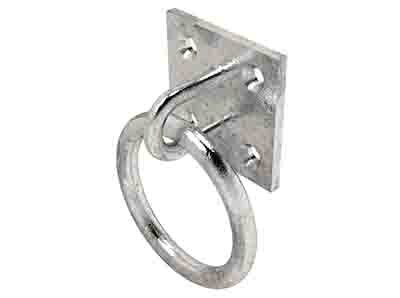

Bloxwich Standard Product: SWL 227kg* Lashing Ring
Supplied in: Mild steel, galvanised
Use: Fully welded for strength and corrosion resistance rivet/screw/bolt-on general purpose lashing point. Can be fitted to walls, floors and ceilings. Note - fasteners not provided
Weight: 170 g Commodity No 830249 GTIN 5060345318340
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

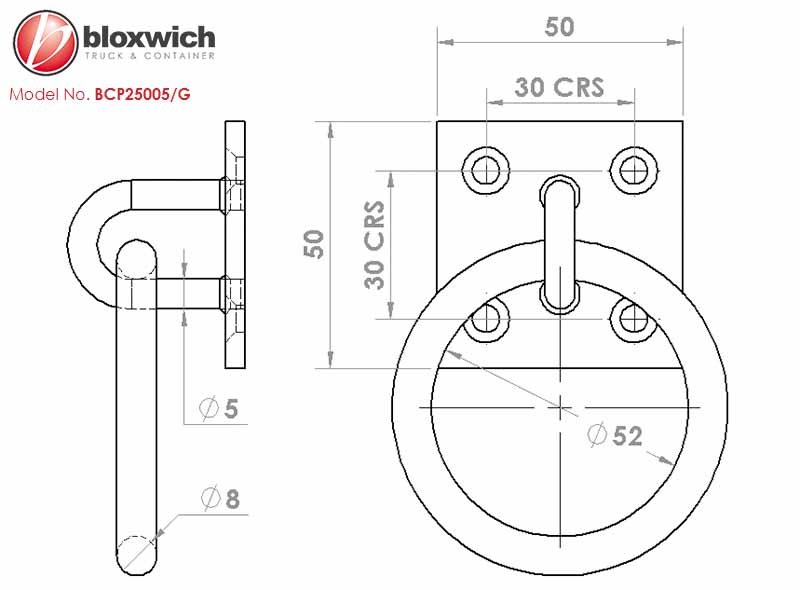

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
