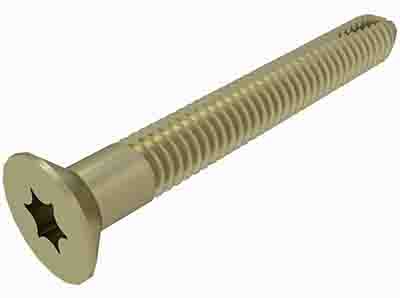

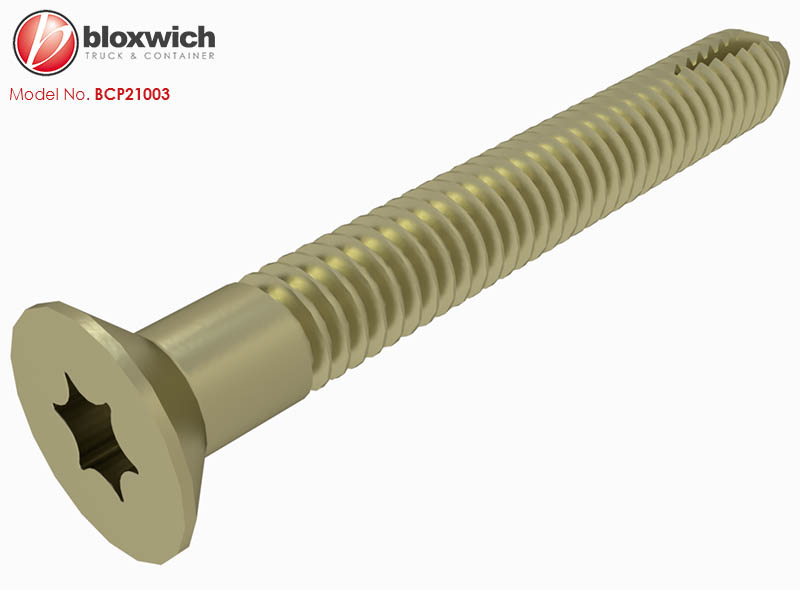

Bloxwich Standard Product: Container Floor Screws
Supplied in: Mild steel zinc plated
Use: On shipping containers for attaching the different sized floor sheets to the cross bearers, bottom side rails and floor spacers etc. T45 Torx heads are much stronger than Phillips heads making fitting easier and removal if required. Screws are self tapping (recommended hole size Ø6.8), holes require countersinking to ideally leave them 2mm +/-0.5 below the floor surface
Weight: 16/18/22 g Commodity No 830249 GTIN 5060345318852
Click

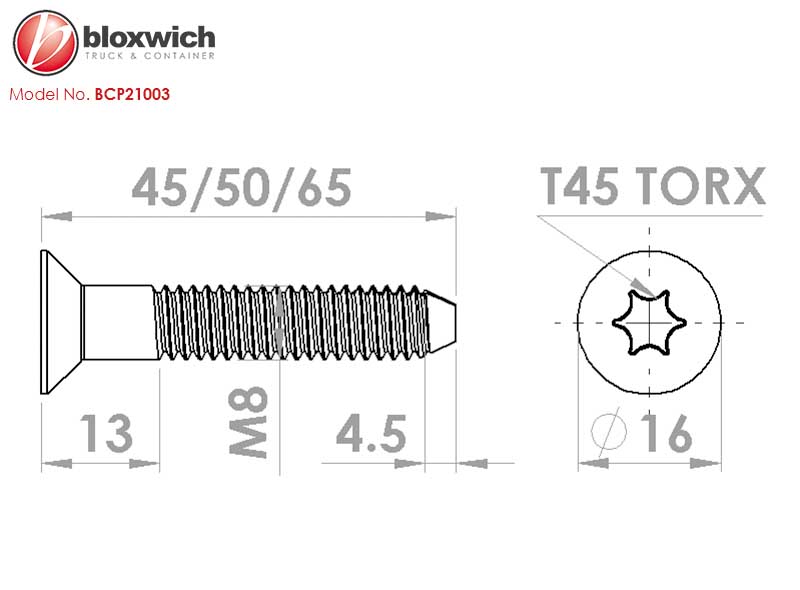

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
