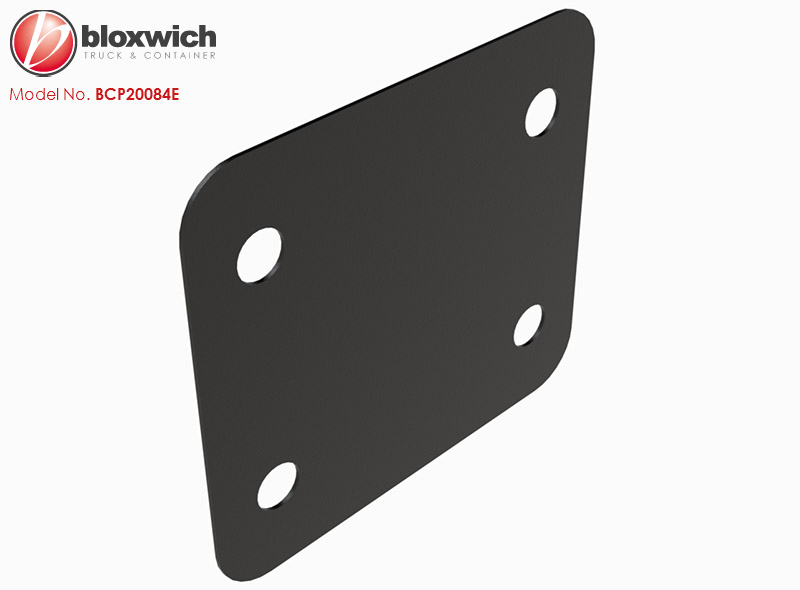

Bloxwich Standard Product: BCP20084E Bearing Bracket Outer Large Gasket
Supplied in: EPDM Rubber
Use: On BCSP14174 bearing brackets (part of BS2010N range of door gear) to prevent door componentry from 'in service' abrasion with door surface, and possible 'galvanic' corrosion encountered when some dissimilar materials are in direct contact with each other. Others sizes available on request
Weight: 11g Commodity No 400829 GTIN 5060345316292
Originally developed decades ago and now reintroduced by request

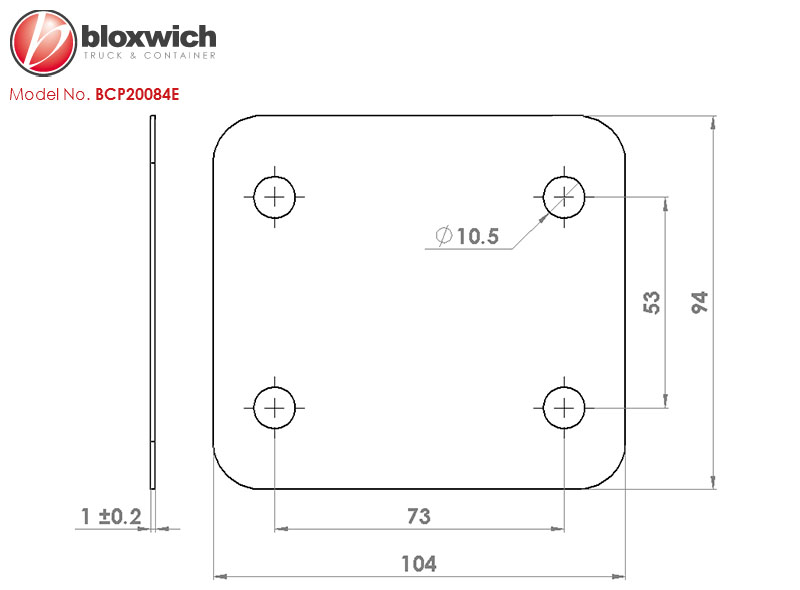

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
