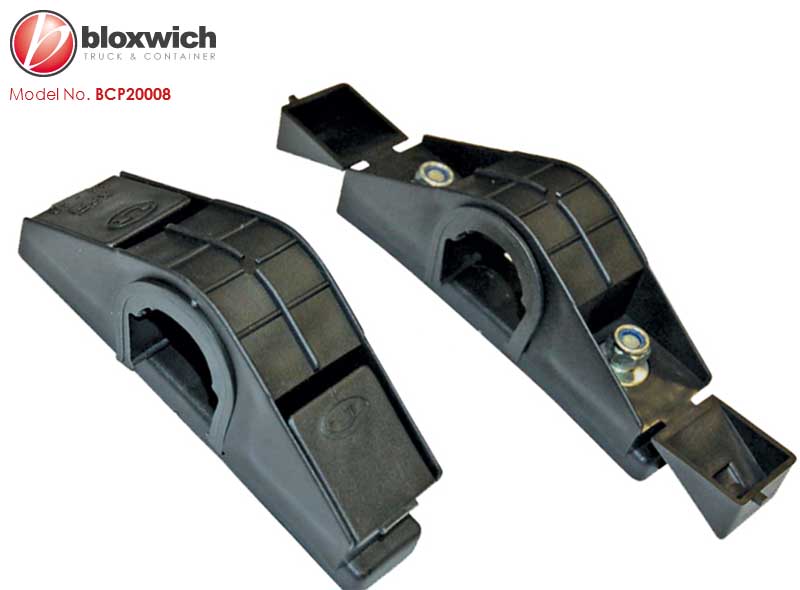

Bloxwich Standard Part: XPF34 Mudguard Fixing Kit
Supplied in: Corrosion resistant black plastic top plate & backing plate with corrosion resistant fasteners. Four units provided per kit i.e. enough to fit one full mudguard onto a pair of stays. For halfwing fitment, to stop movement on the stay use 4.8 x 20 rivet. Drill 5mm hole through fixing and stay and then attach rivet.

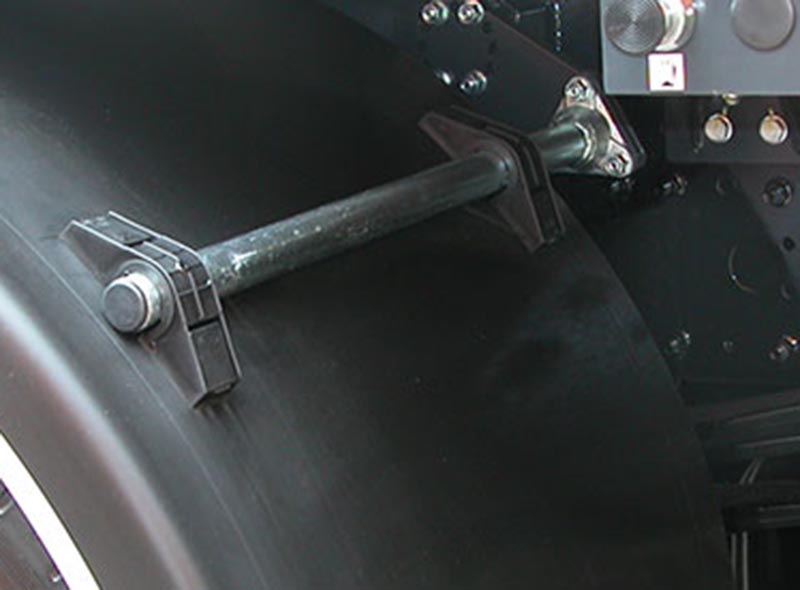

Use: For use with any Ø34 tube mud wing stay. Suitable for most MDPE & HDPE mudguards (radius > 560mm). Once fitted, the flip-over protective caps provide secondary fastener retention in addition to the nyloc nuts. Strong but light, they come ready assembled for simple self-fitting.
Weight: 610 g Commodity Code 392630 GTIN 5060345315905

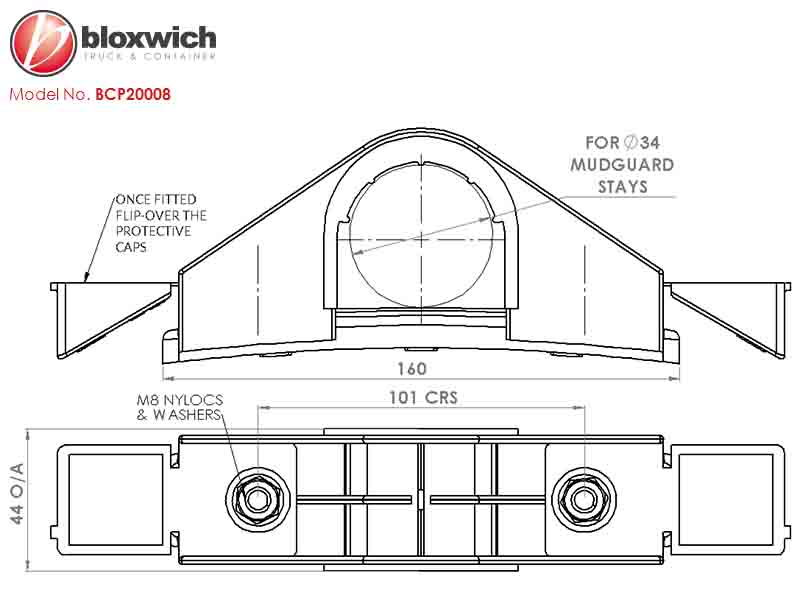

Click
