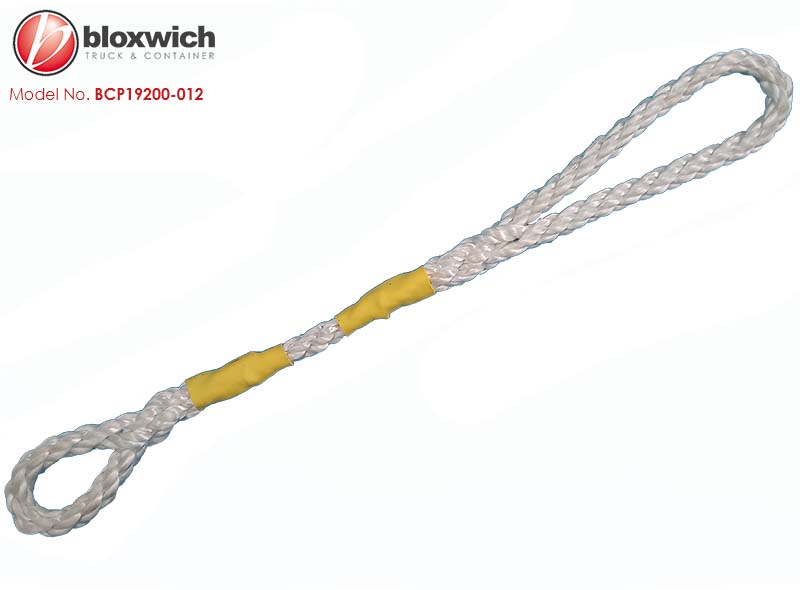

Bloxwich Standard Product Rope Door Holder
Supplied in: Mixed nylon rope Ø6.0 x 250mm overall length

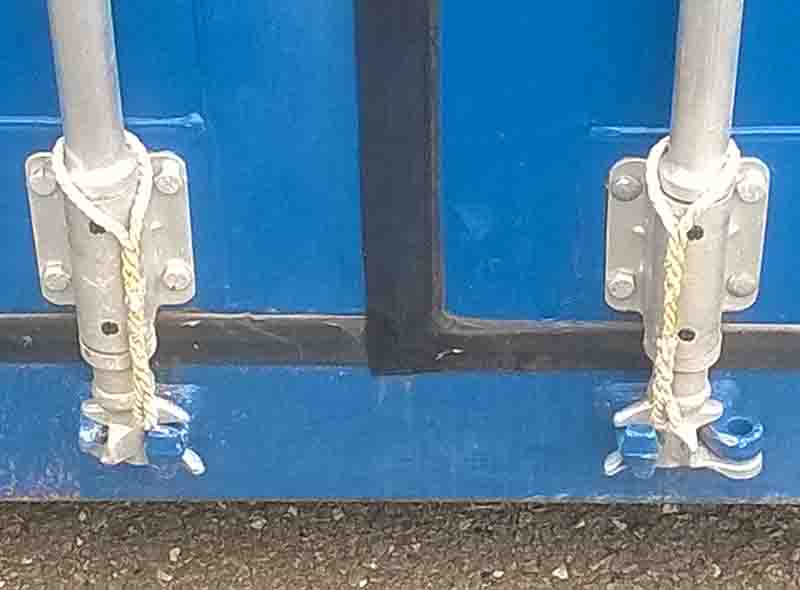

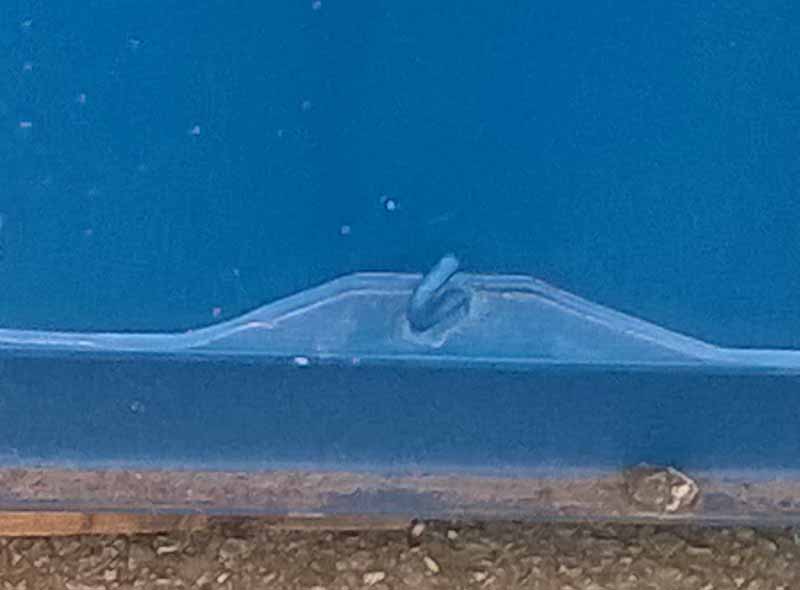

Use: Standard shipping container rope door holder. Fitted to the door gear tubes on both doors. These are usually hooked onto half chain links or quick repair links or similar hooks welded onto the bottom side rails or side sheets of the containers to safely hold the doors in the fully open position (usually for use from ground level when containers are on trucks).
To fit, (with the door open) unbolt the bottom bearing bracket large (outer large) and slip the large loop of the rope door holder over the door gear cam and up the tube. Refit and bolt the bottom bearing bracket large in place. The rope door holder now hangs in place for use as and when required.
Weight: 10 g Commodity No GTIN 5060345316971
Click

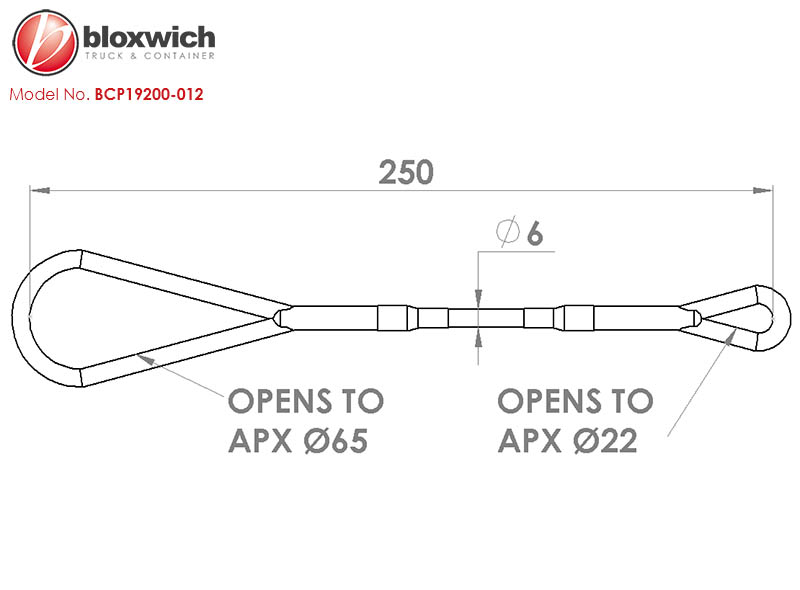

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
