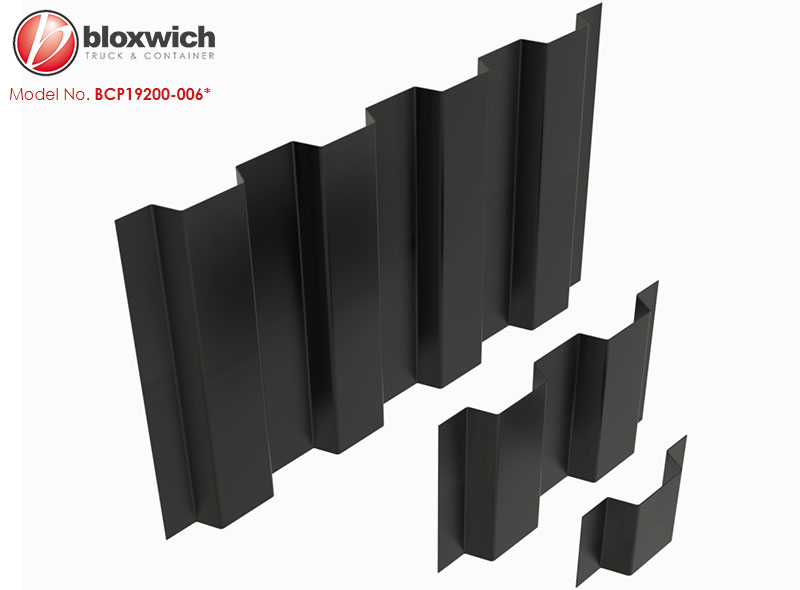

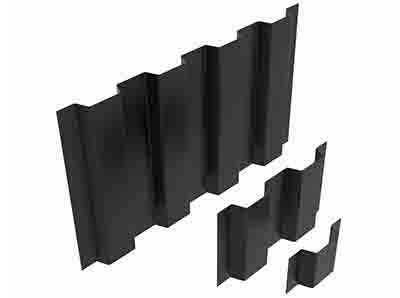

Bloxwich Standard Product: ISO Container Font End Panel Patch
Supplied in: 2mm Corten steel
Use: Standard ISO container front end panel patches in widths of 1, 2 or 4 corrugations and with several height options. Typically welded to the outside of shipping container front ends to repair damage, corrosion or vandalism.
Simply pick a patch bigger than the cut/corrosion, cut out or flatten the damaged area, grind the areas to be welded, MIG weld in place and paint and that's your container wind and water tight again.
Q) Why do we make patch panels? A) Courier costs are high for large panels so ordering patches keeps the delivery costs to a minimum (depending on sizes).
Other patch panels types available on request, please contact us.
Weight: From 0.7 to 23.3 kg Commodity No 830249 GTIN 5060345316346
Due to the sizes of this product, at the checkout "Shipping And Handling/Class of Service" page our website may default to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.
Click

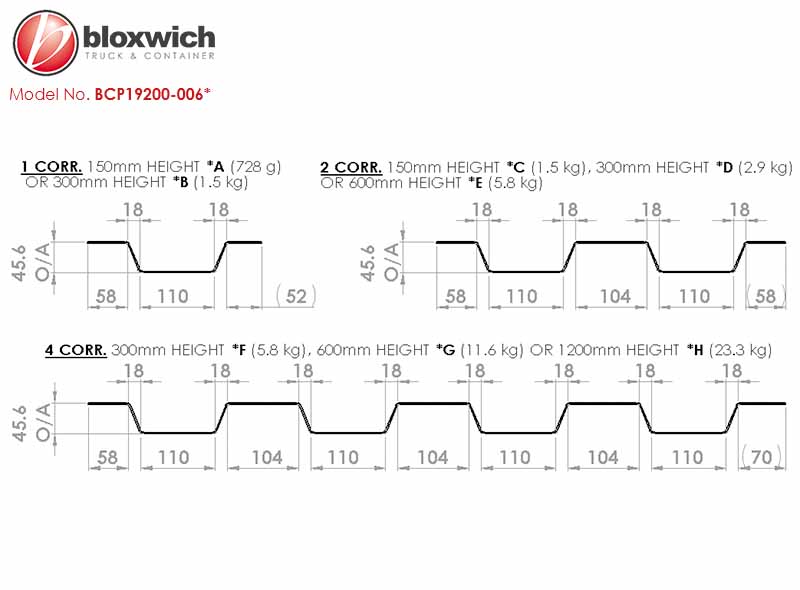

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
