Bloxwich Standard Product: BCP19200-004 J Type Container Door Seal Set
Supplied in: EPDM 70 shore, black in colour. 3 sided for the LH door and 4 sided for the RH door.
Use: Standard J type container door seal set for fitting to numerous 10', 20' and 40' shipping containers. For standard 8'6" high containers where each door is 1143mm wide X 2254mm tall. Reinforced internal and external corner joints. Standard intermodal container door seals require an 18mm gap all around and in between the two doors for the seals to fit into. Fitting general guidance notes, other sizes and types available on request, please contact us.
Bloxwich recommend carefully unpacking and lying the seal flat as soon as it arrives and for at least 24hrs before fitting.
Weight: 6.0 kg Commodity No 400829 GTIN 5060345318722
Many containers have sloping door sills to drain water outwards at the bottom of the doors. If so, the front edge is usually 10mm lower that rear hence the 2280/2290 apx door aperture height shown.
Click

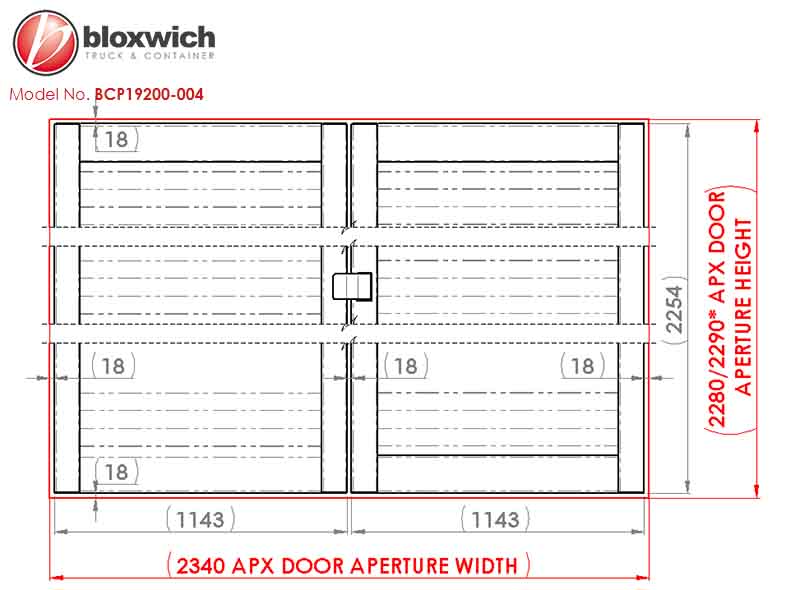

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
