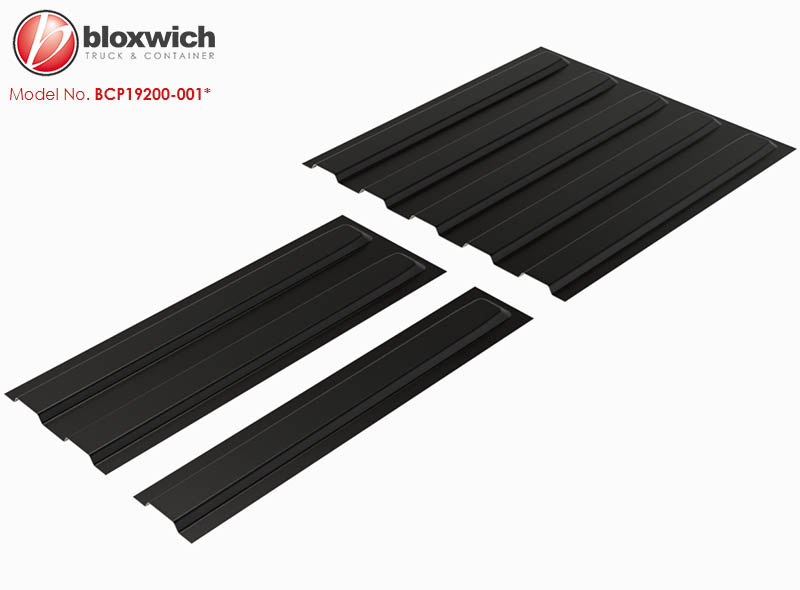

Bloxwich Standard Product: ISO Container Roof Panel Patches
Supplied in: 2mm Corten steel
Use: Standard ISO container roof panel patches in widths of 1, 2 or 5 corrugations. Typically welded to the outside of shipping container roofs to repair impact damage or corrosion.
Simply pick a patch bigger than the damage/corrosion, cut out or flatten the damaged area, grind the areas to be welded, MIG weld in place and paint and that's your container wind and watertight again.
Q) Why do we make patch panels? A) Courier costs are high for large panels so ordering patches keeps the delivery costs to a minimum (depending on sizes).
Other patch panel types available on request, please contact us.
Weight: From 4.3 to 21.1 kg Commodity No 830249 GTIN 5060345315981
Due to the sizes of this product, at the checkout "Shipping And Handling/Class of Service" page our website may default to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.
Click

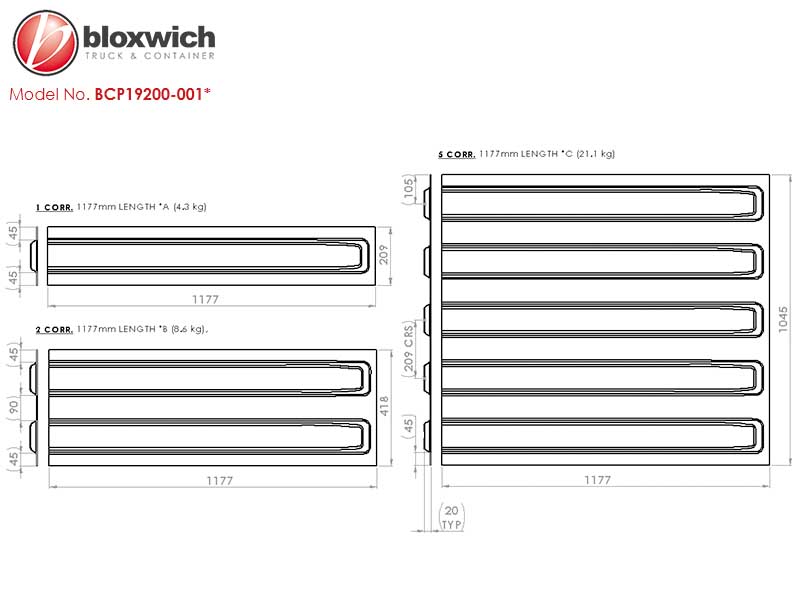

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
