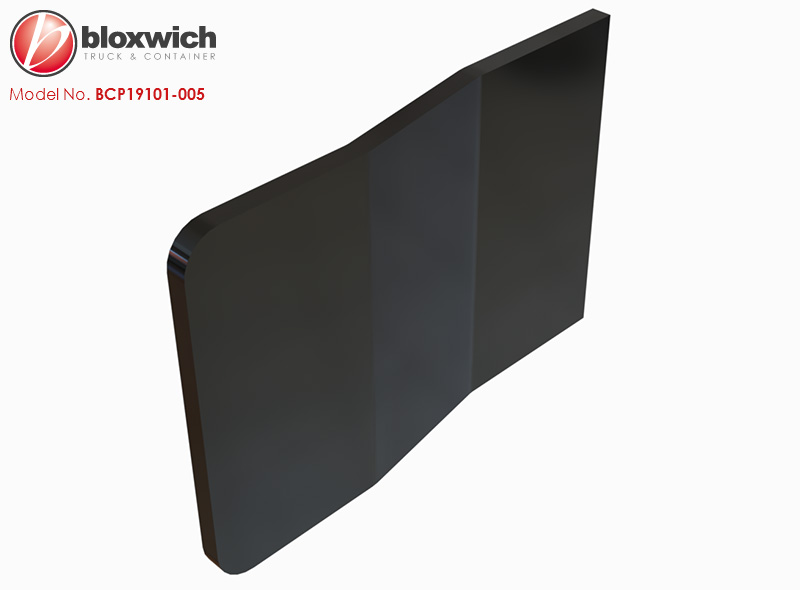

BCP19101-005 ISO Container Door Overlap Plate

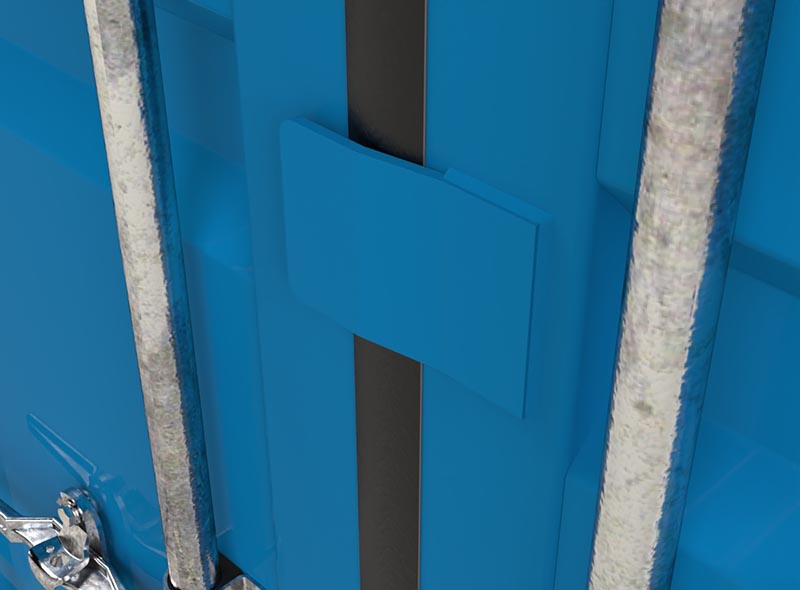

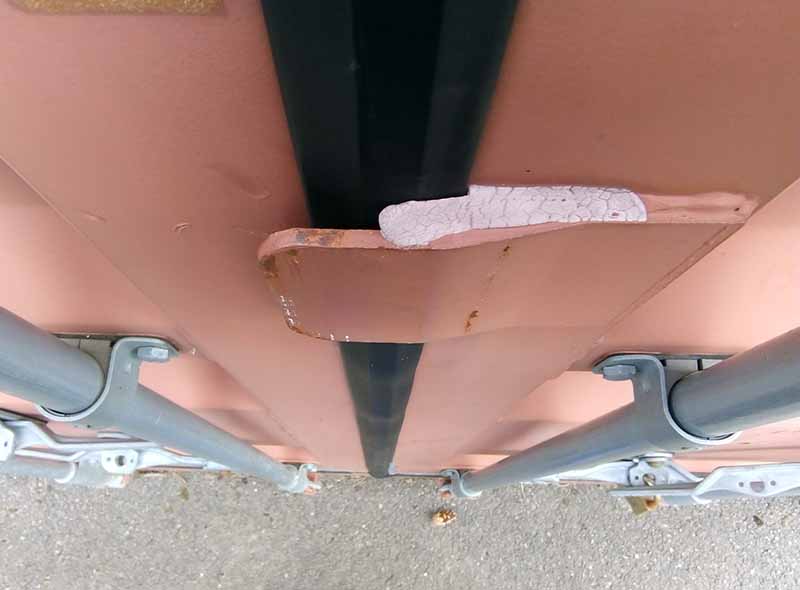

BCP19101-005 ISO Container Door Overlap Plate - view 1DrawingBCP19101-005 welded to RH container door

BCP19101-005 ISO Container Door Overlap Plate

Price: £5.63 (ex VAT)

Description
Description


Bloxwich Standard Product: ISO Container Door Overlap Plate

Supplied in: Mild steel

Use: Standard weld on door overlap plate. Typically fitted to the RH door of shipping containers. Prevents door seal damage by only allowing the RH door to be opened first/closed last. Increases container security by only allowing the opposite door to be opened once the overlapping door has been opened first. Typically the overlapping door will be fitted with a customs seal or padlock etc in addition to the single or double Bloxwich Ø34 mm door locking gear. Cranked to clear J type door seals.

Weight: 700 g  Commodity No 830249   GTIN 5060345315165

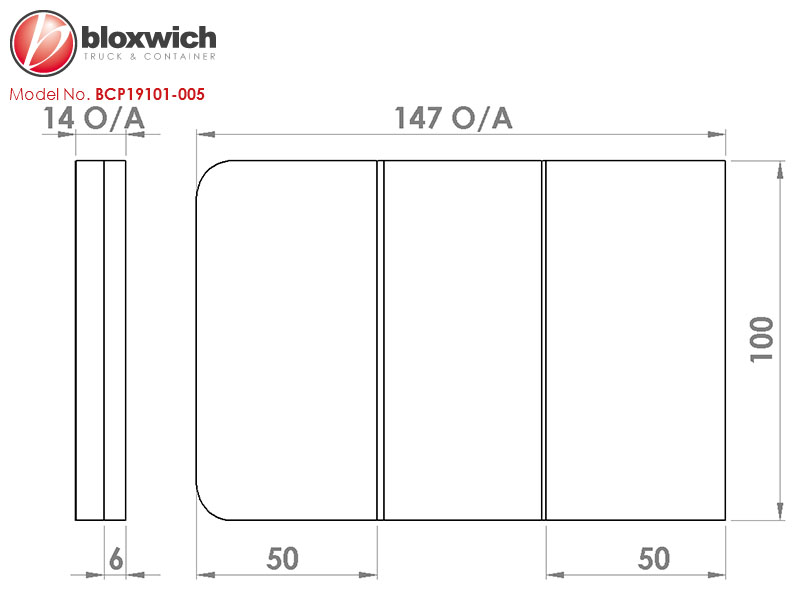

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
