Bloxwich Standard Product: Motorcycle Trailer Complete Conversion Kit
Supplied in: Mild steel galvanised ramp and base channel, with yellow powdercoated or zinc plated wheel loop assembly. MAY BE SUBJECT TO ADDITIONAL DELIVERY CHARGES DEPENDING ON LOCATION

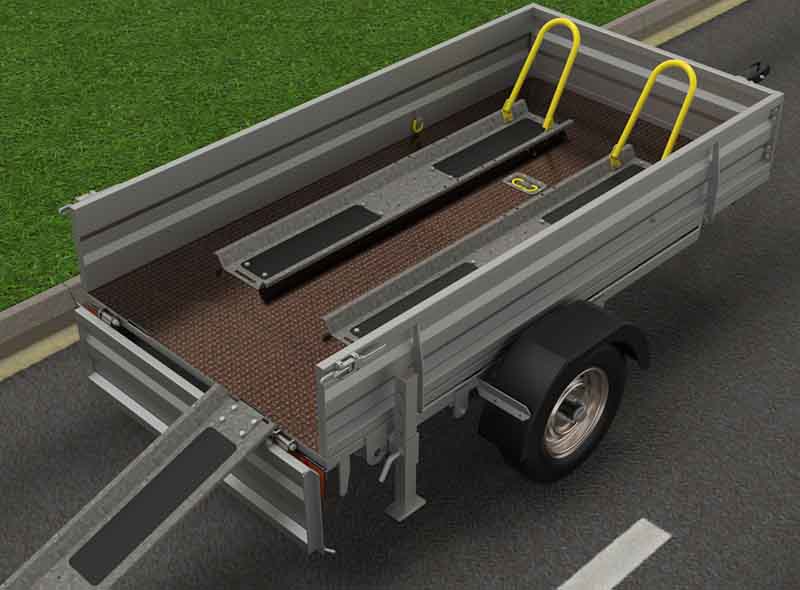

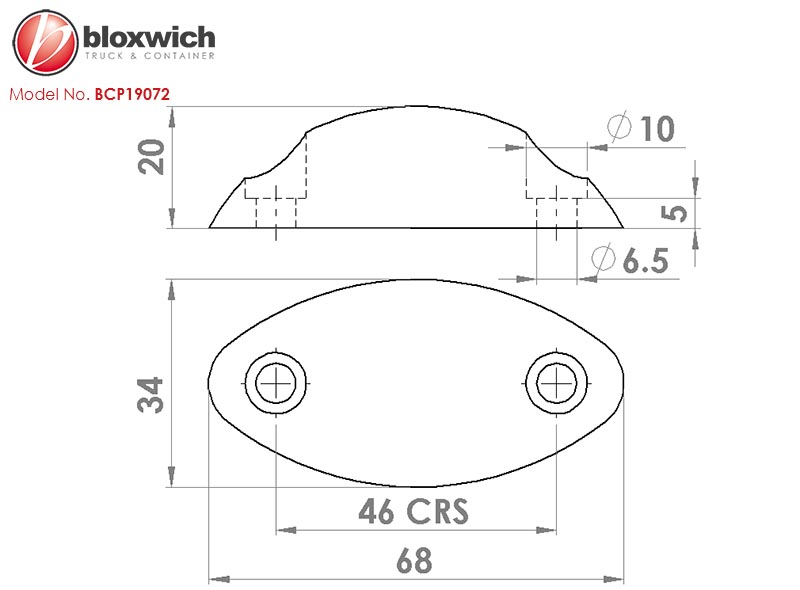

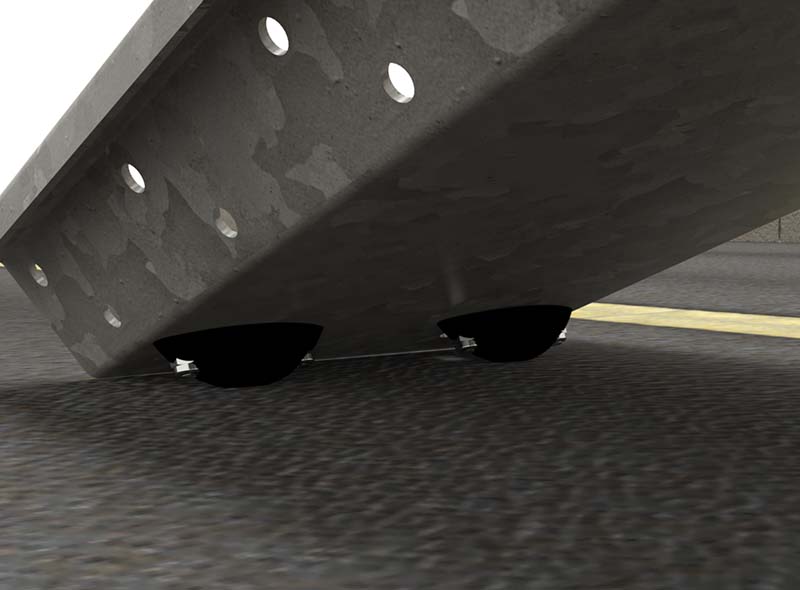

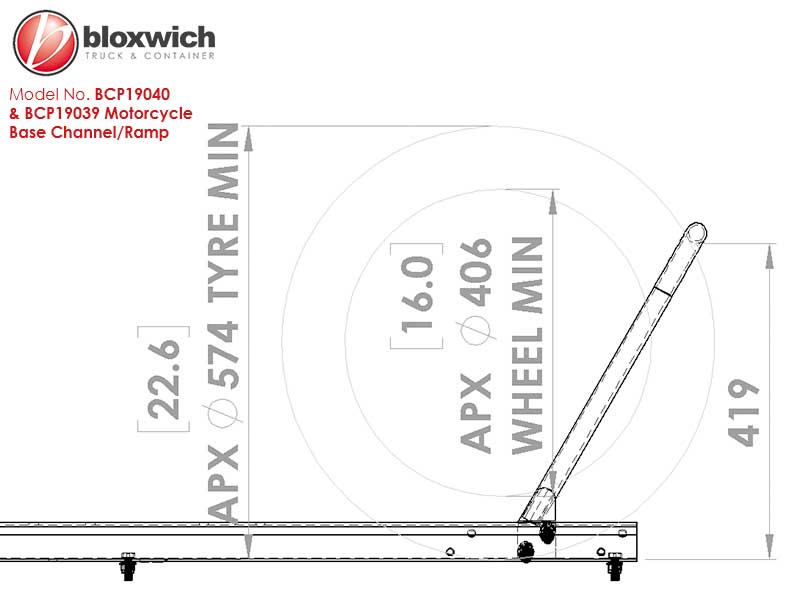

Use: To convert open or boxed trailers for transporting motorcycles, scooters or e-bikes. The 4 anti-slip tapes can be fitted wherever the end user needs them. BCP19072 oval buffer standard type can be fitted to the end of the ramp to prevent movement on hard surfaces. Apx minimum wheel size 16" (406mm) or apx minimum tyre size 23.6" (574mm) in order to clear front mudguards. Smaller scooter wheel loop assembly BCP26018 also available on request.
Weight: 33.0 kg Commodity Code 830249 GTIN 5060345315530

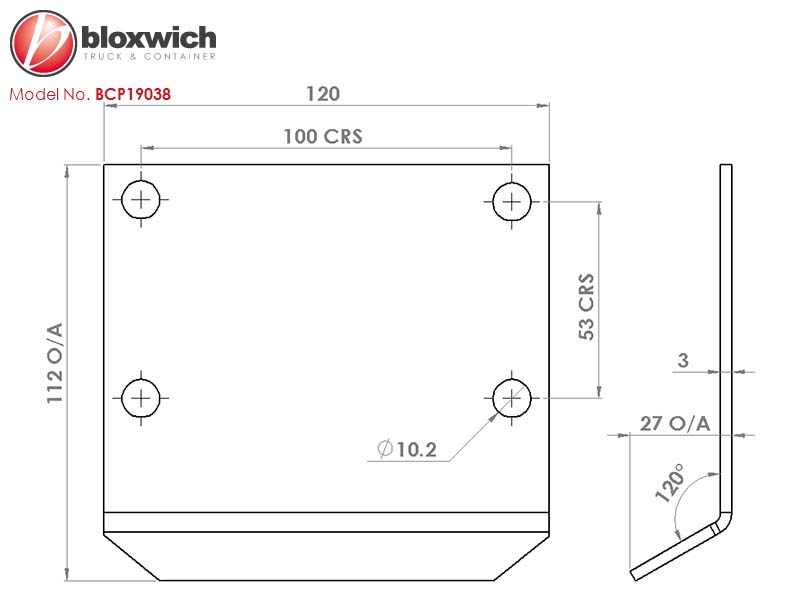

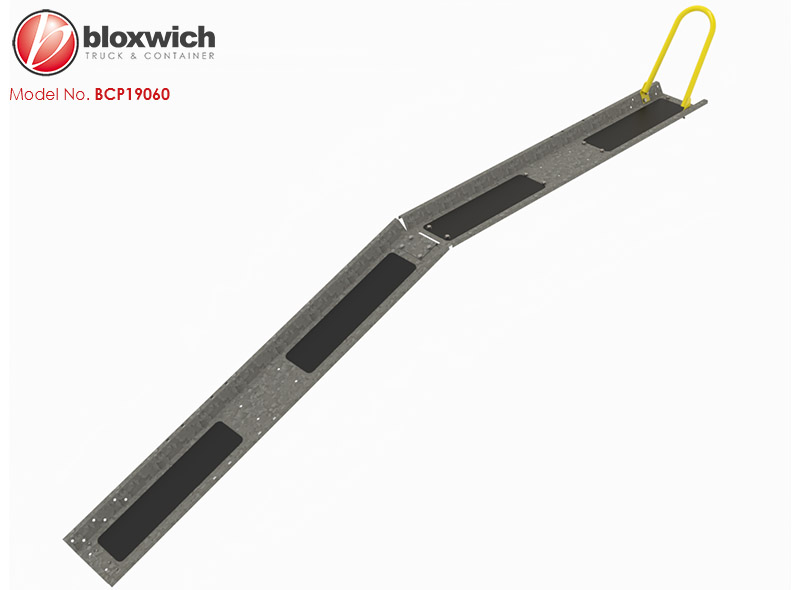

BCP19040/Z Wheel Loop Assembly, 2 x BCP19039 Motorcycle Base Channel/Ramp, BCP19038 Ramp Bracket and 4 x BCP19103 anti-slip tapes. 2 x BCP19072 Oval Buffer Standard Type, 4 x M6 x 20 button head set screw (BCSP19080), 4 x M6 nylocs (BCSP19066), 16 x M10 x 30 set screws (BCP14886), washers (BCP14885) and nylocs (BCP14884/G) also included.
Click
HERE to contact us and we will email the required customer drawings.
