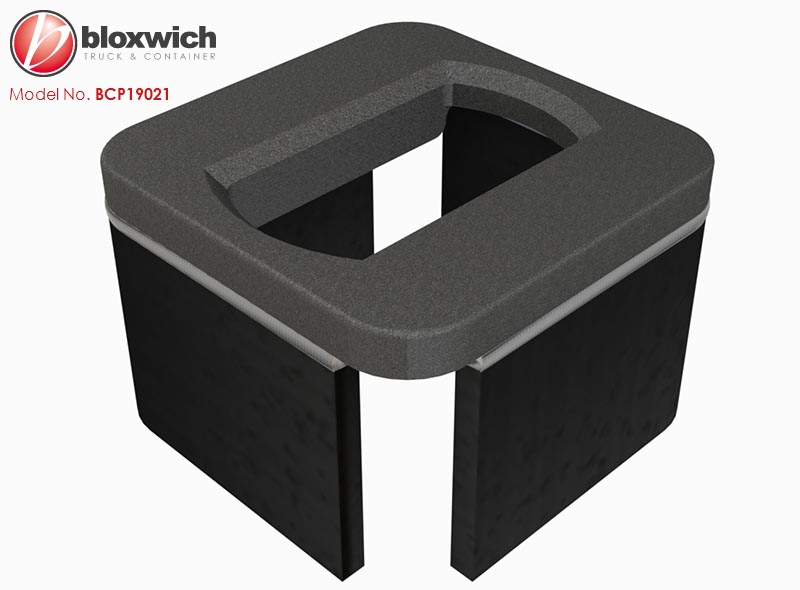

Bloxwich Standard Product: BCP19021 ISO Raised Foundation 110mm MBL: 500 kN (tension) 420 kN (shear) 2000 kN (compression)
Supplied in: Mild steel, self colour

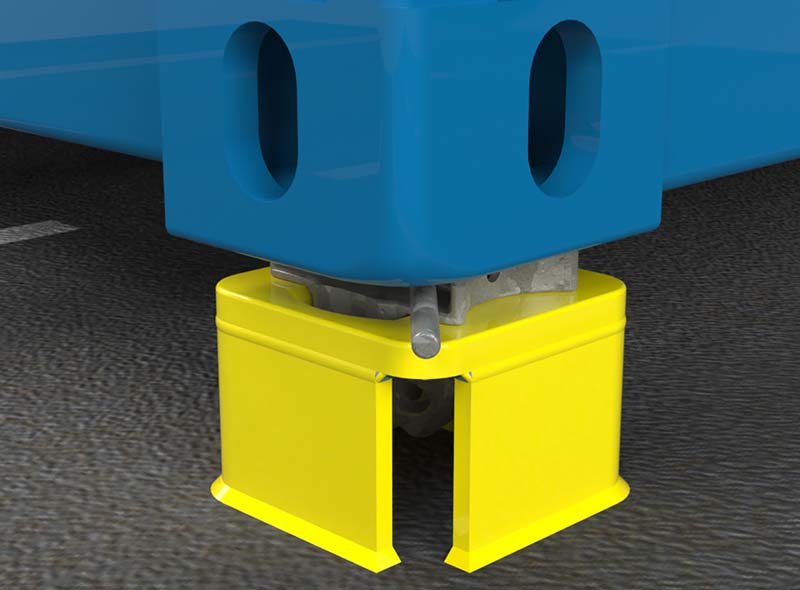

Use: Container raised foundation, can be welded to decks to secure the bottom containers in stacks or onto any frame or container etc for locking containers in position along with twistlocks (BCP14410 or BCP16024).
Can also be welded to mounting plates for securing ISO containers onto concrete slabs etc to provide clearance and prevent them from rotting from the ground up.
Other heights and types available on request.
Weight: 5.8 kg Commodity No 830249 GTIN 5060345314762

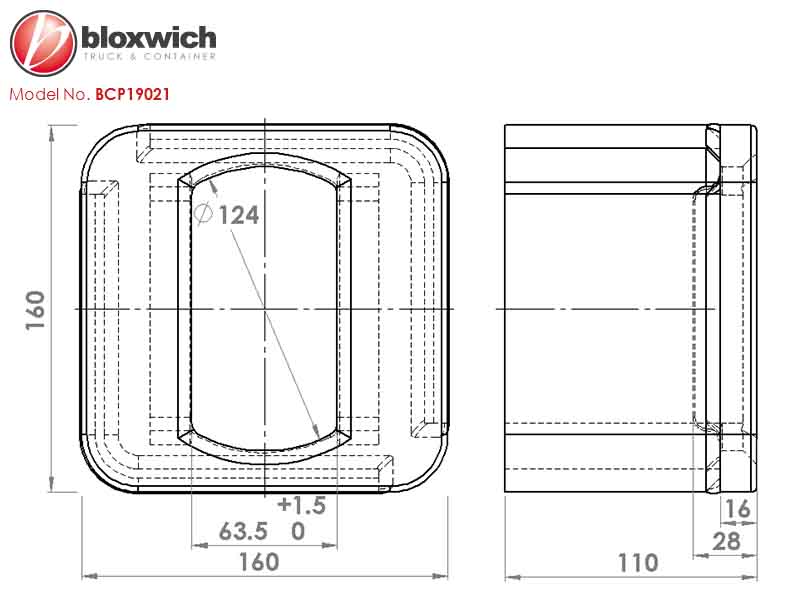

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
