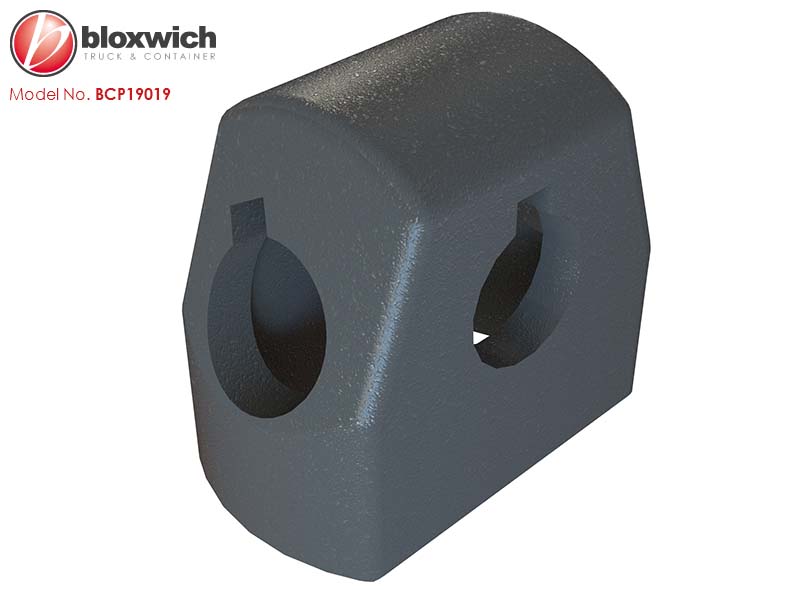

BCP19019 Container Welding Cone
BCP19019 Container Welding Cone - view 1DrawingIn use, place the container over the cones and slide the handles or pins into positionIn use with BCP19020 handle. Tab on pin secures the handle in placeIn use with BCP19020 handle. To secure the handle in place use lockwire, cable tie or shorten the pin by apx 17mm

BCP19019 Container Welding Cone

Price: £14.47 (ex VAT)

Description
Description


Bloxwich Standard Product: BCP19019 Container Welding Cone MBL: 420 kN (shear) 2000 kN (compression)

Supplied in: Mild steel, primed

Use: Container welding cone, can be welded to decks to secure the bottom containers in stacks or onto any frame or container etc for locking containers in position along with BCP19020*.

Can also be welded to mounting plates for securing ISO containers onto concrete slabs etc to provide clearance and prevent them from rotting from the ground up.

Weight: 1.4 kg  Commodity No 830249   GTIN 5060345314694

*
*


Exact models supplied may differ slightly in appearance only

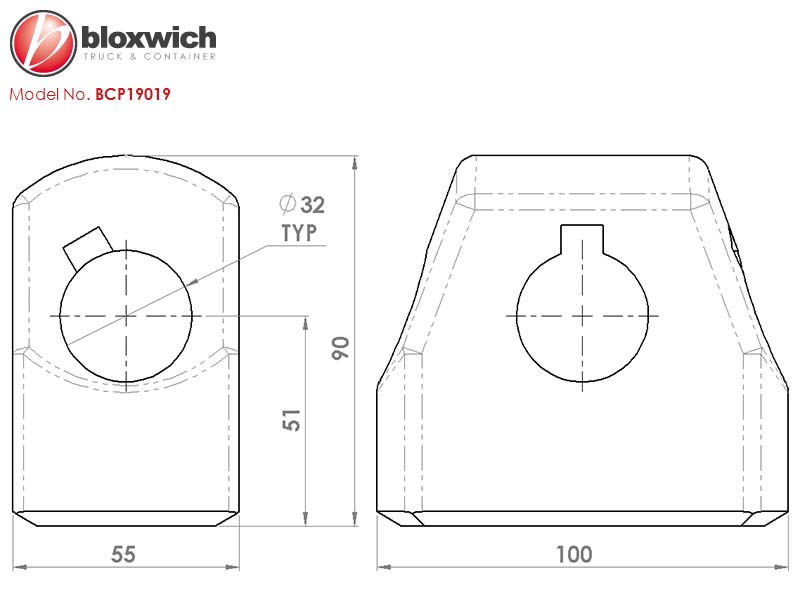

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
