BCP19017 Standard Bolt On ISO Container Lockbox (Seal Type RH)

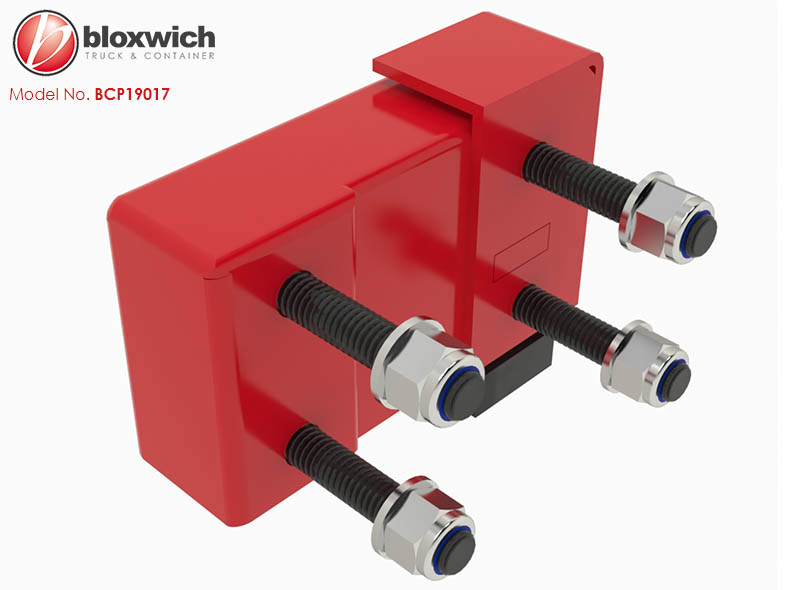

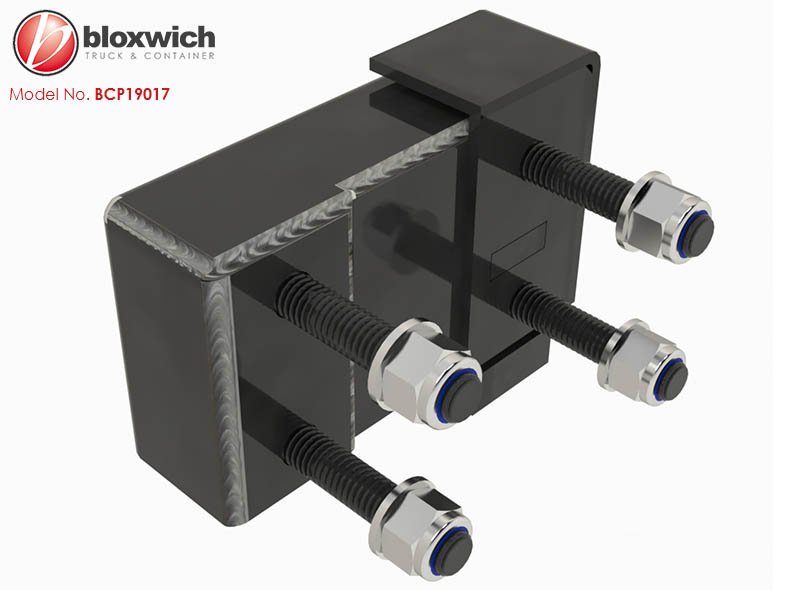

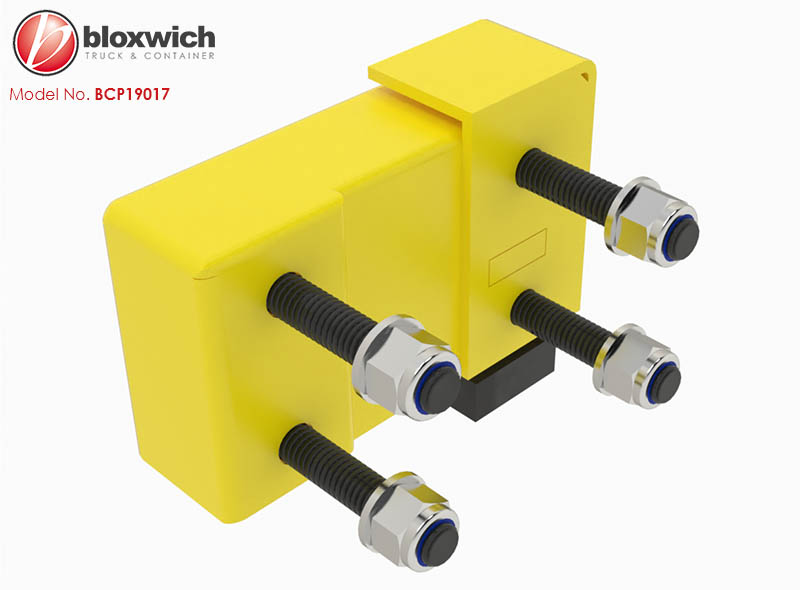

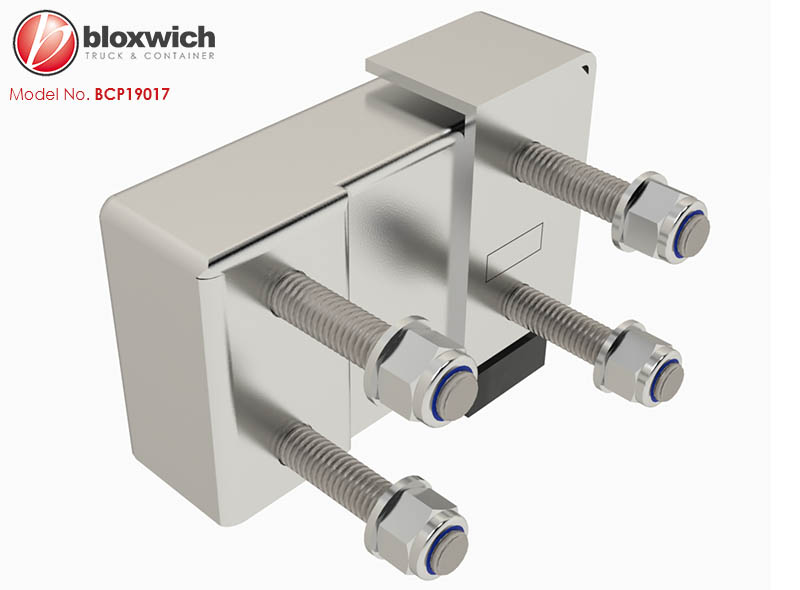

Self colour finish (BCP19017)Zinc plated finish (BCP19017Z)Red powder coated finish (BCP19017RED)Yellow powder coated finish (BCP19017YELLOW)DrawingBCP19017 Standard Bolt On ISO Container Lockbox (Seal Type RH) - view 6BCP19017 Standard Bolt On ISO Container Lockbox (Seal Type RH) - view 7BCP19017 Standard Bolt On ISO Container Lockbox (Seal Type RH) - view 8

BCP19017 Standard Bolt On ISO Container Lockbox (Seal Type RH)

Price: 28.13 (ex VAT)

Description
Description


Bloxwich Standard Product: Standard Bolt On ISO Container Lockbox (Seal Type RH)

Supplied in: Mild steel self colour, zinc plated* or powdercoated (red or yellow) lock box with zinc plated washers and nyloc nuts.

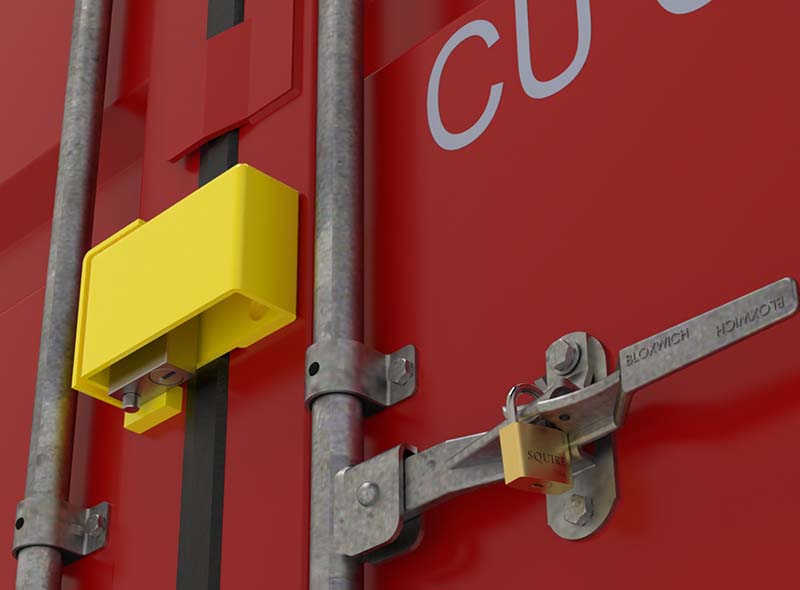

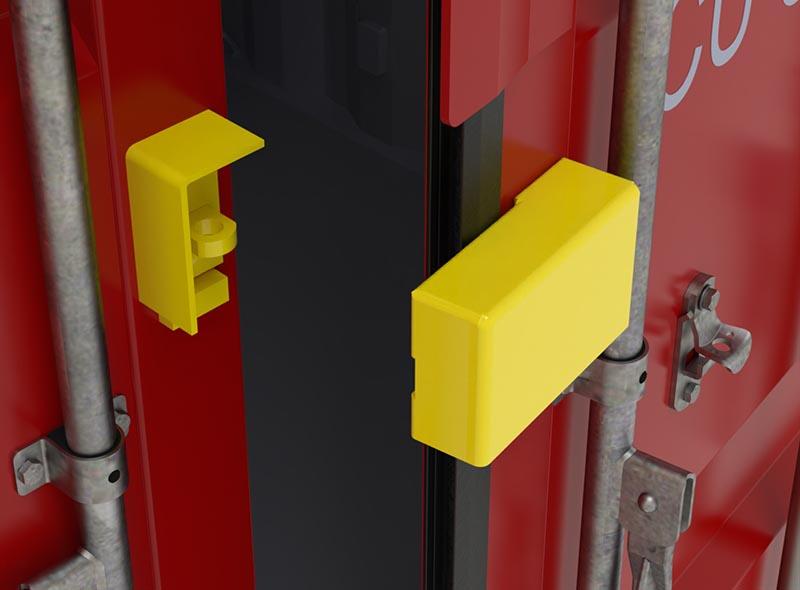

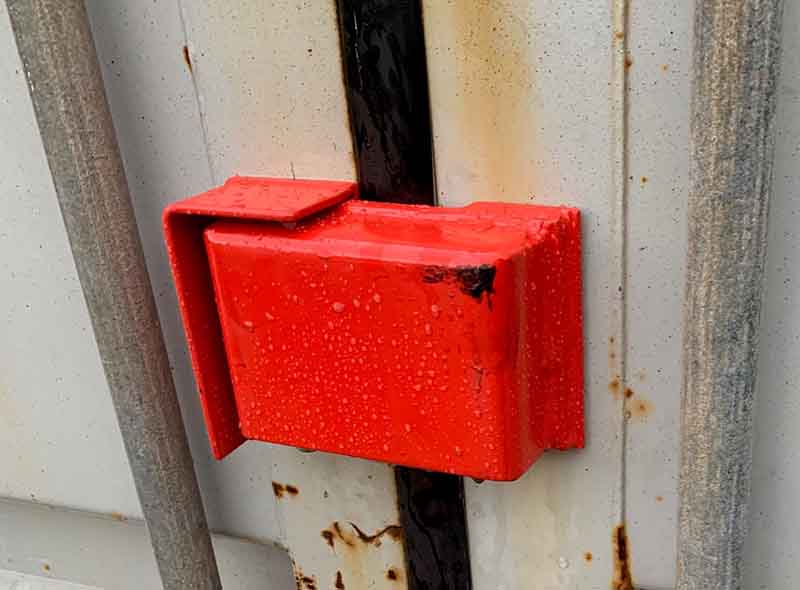

Use: Provides locking box for fitment of padlocks or container locks to ISO containers. Low profile stays inside the container bumper bars/footprint and the 5mm step/slot down the back enables the lock box to be fitted over door "J" or "H" seals. Lock not supplied. RH = Right hand and means that the standard opening arrangement where the right door is opened first/closed last in use. For LH containers please contact us.

Simple fitting as no welding is required only a drill (step bit recomended) and a 24mm spanner or socket.

Weight: 4.0 kg  Commodity No 830249   GTIN 5060345314779

*
*


Selecting the zinc plated finish option adds approximately 48hrs to the delivery time.

Installation Instructions Video
Installation Instructions Video

Drilling Template & Installation Instructions Download
Drilling Template & Installation Instructions Download


Click HERE to download the drilling template and installation instructions

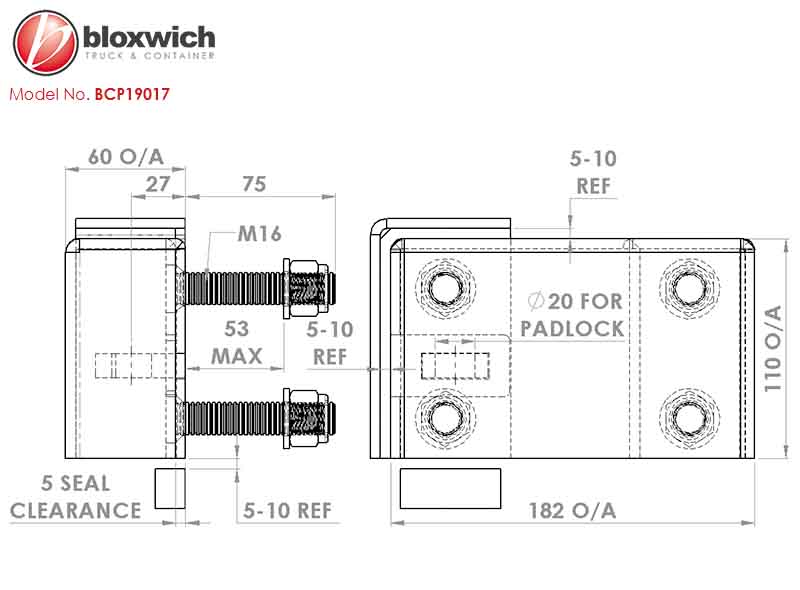

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
