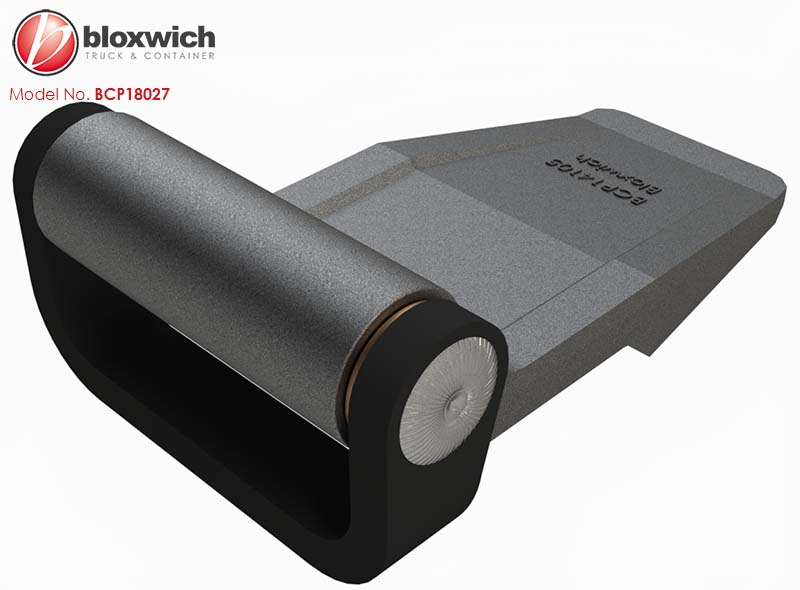

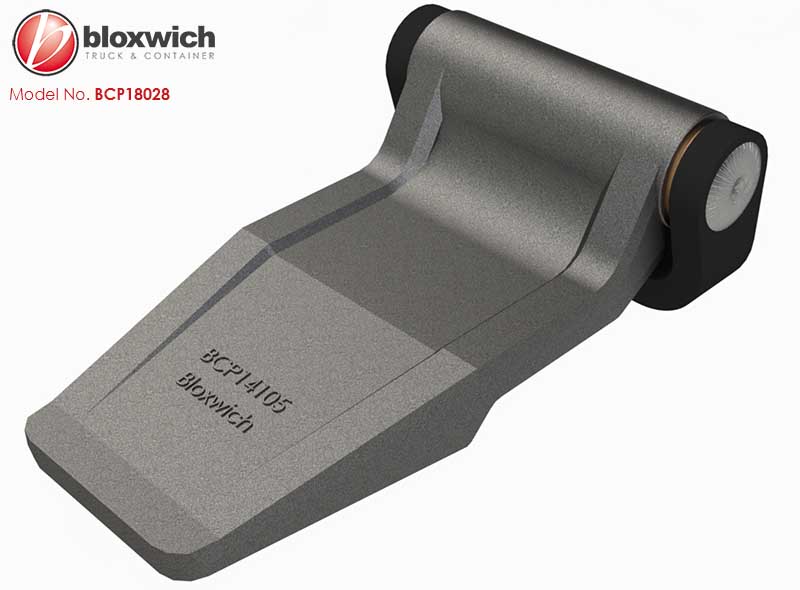

Bloxwich Standard Patent Design: Forged Steel Door Hinge Assembly 140mm
Supplied in: Self colour or zinc plated hinge with self colour hinge bracket and stainless steel pin
Use: For containers etc, parts supplied assembled ready to weld in place. Weld-on stepped back design, bushed to suit Ø12.7mm hinge pin or 1/2" bolt. Suitable for use as replacement or new on shipping container doors as the 80mm width is the same as most current designs made by the large container manufacturers. Stepped back clears door seals.Hinge pin fully welded to the hinge brackets at both ends.
BCP19067 brass washers are fitted on the underside of hinges as a spacer to prevent wear, paint damage and corrosion in use. They also increase security by reducing/eliminating gaps between hinges and hinge brackets/butts which makes cutting of the hinge pins/bolts more difficult (if thieves attempt to cut through the washers instead, they can spin on the pin/bolt which again makes cutting more difficult).
Weight: 1.3 kg Commodity No 830210 GTIN 5060345315660
Hinge: BCP14105 Hinge Bracket: BCP18007 Pin: BCSP12272/94. Usual hinge options apply see BCP14105 for details

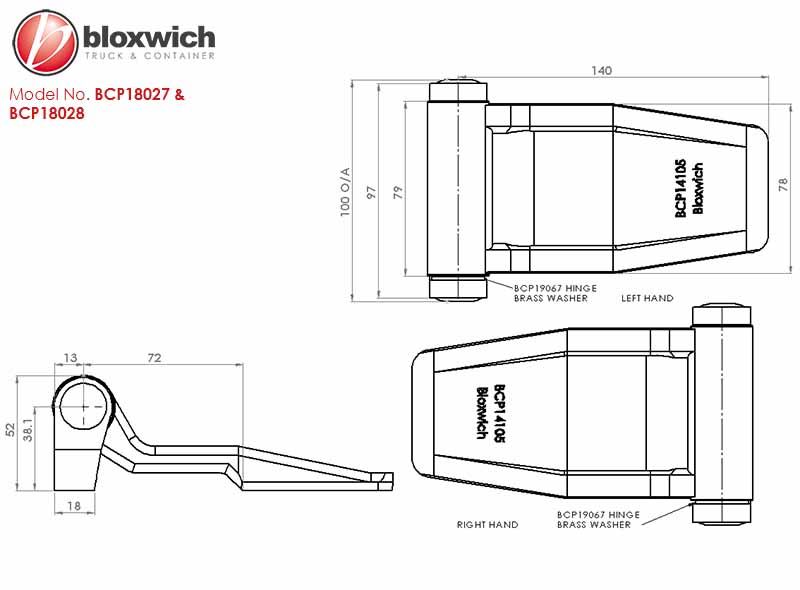

Click
