BCP16057L LH Locked Transverse Dovetail Twistlock

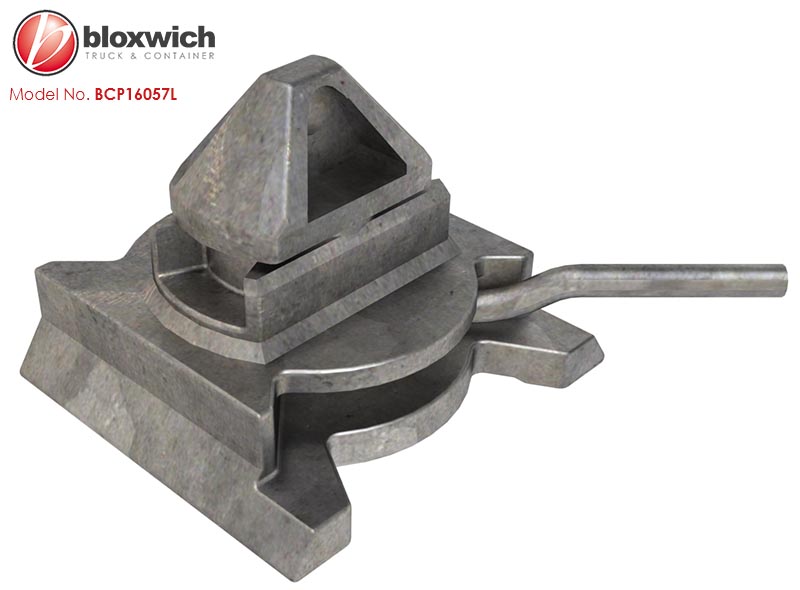

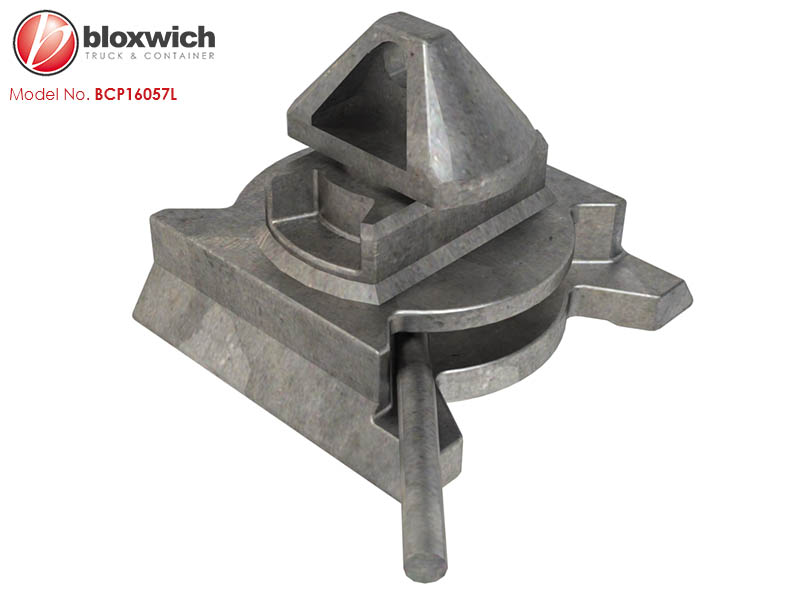

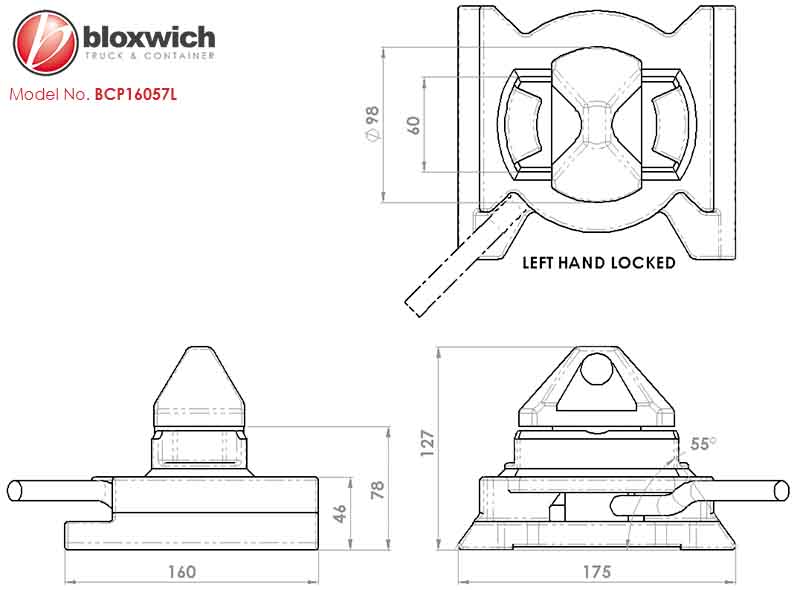

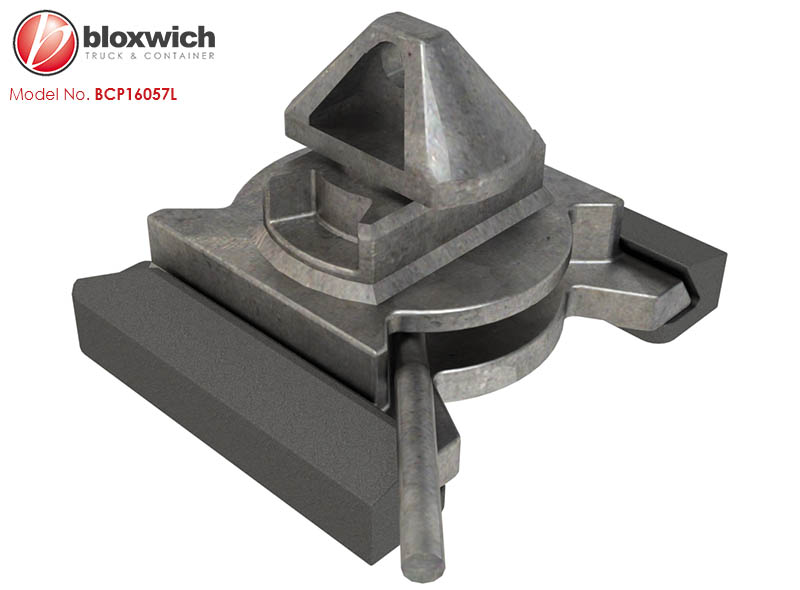

BCP16057L LH Locked Transverse Dovetail Twistlock - view 1DrawingIn the left hand locked position In use with a BCP16037 foundation plate

BCP16057L LH Locked Transverse Dovetail Twistlock

Price: £34.85 (ex VAT)

Description
Description


Bloxwich Standard Product: LH Locked Transverse Dovetail Twistlock 55°, MBL: 500 kN (tension) 420 kN (shear) 2000 kN (compression)

Supplied in: Galvanised

Use: Requires matching foundation BCP16037 and once fitted they provide a removable twistlock for fixing containers in position when required. Transverse version means the operating handles will sit as the sides of the container as opposed to the ends using standard dovetail twistlocks

Weight: 6.3 kg   Commodity Code 830249  GTIN 5060345317565

Certification
Certification


Bloxwich can supply a copy of the type approval certificate

Operating Instructions
Operating Instructions


Click HERE to download the operating instructions

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
