BCP16052 Heavy Duty Forged Steel Door Hinge 197mm
BCP16052 Heavy Duty Forged Steel Door Hinge 197mm - view 1Zinc plated finishDrawingAll OptionsOil Hole/Grease Nipple Positions

BCP16052 Heavy Duty Forged Steel Door Hinge 197mm

Price: 19.95 (ex VAT)

Description
Description


Bloxwich Standard Patent Design: Heavy Duty Forged Steel Door Hinge 197mm

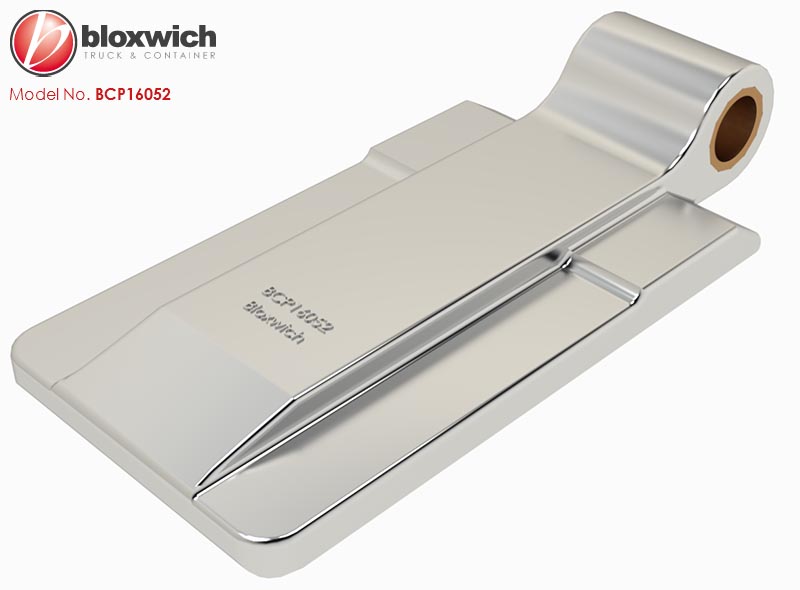

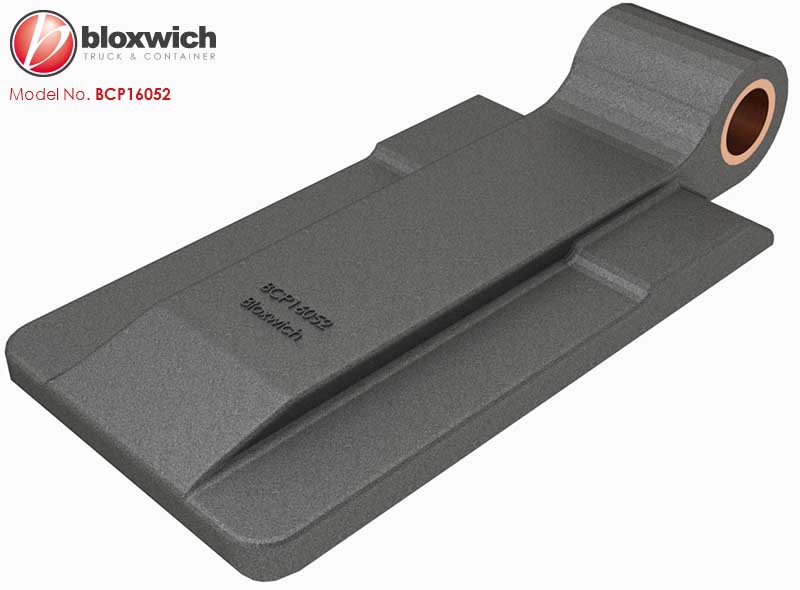

Supplied in: Self colour or zinc plated

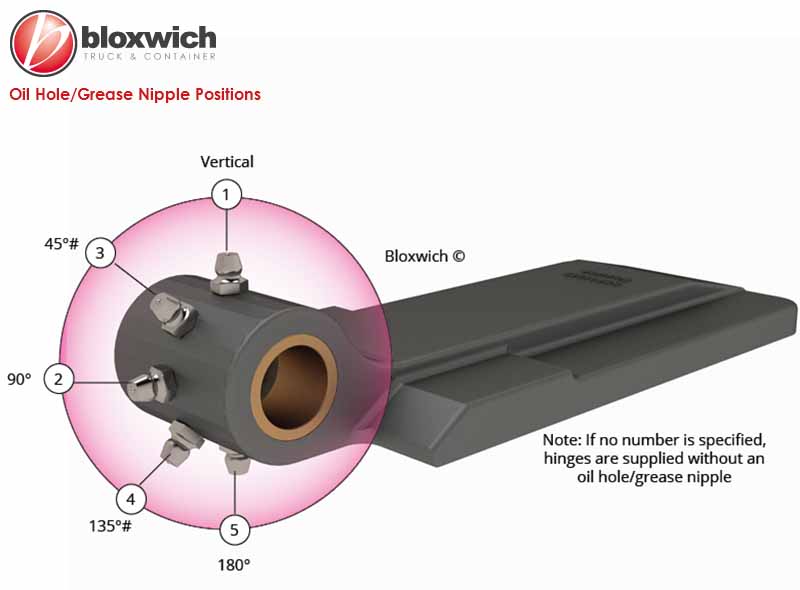

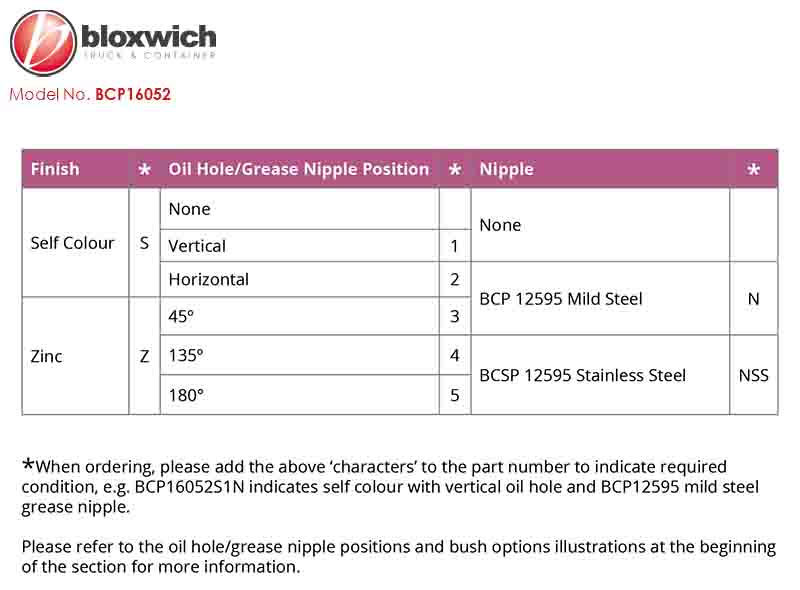

Use: Weld-on design heavy duty hinge, bushed to suit Ø20mm hinge pin or 3/4" UNC bolt. Depending on mounting arrangement and opening angle some positions may not be suitable for a grease nipple.

Weight: 2.3 kg  Commodity No 830210   GTIN 5060345314915

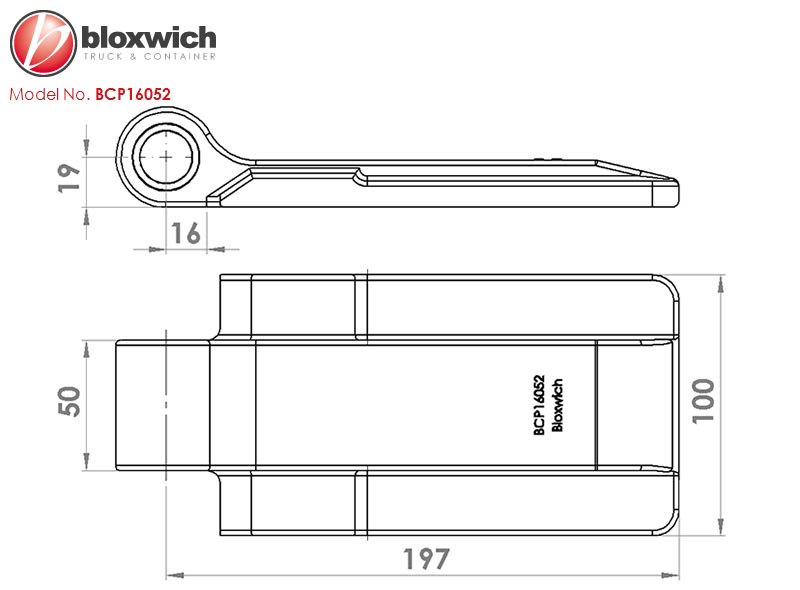

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
