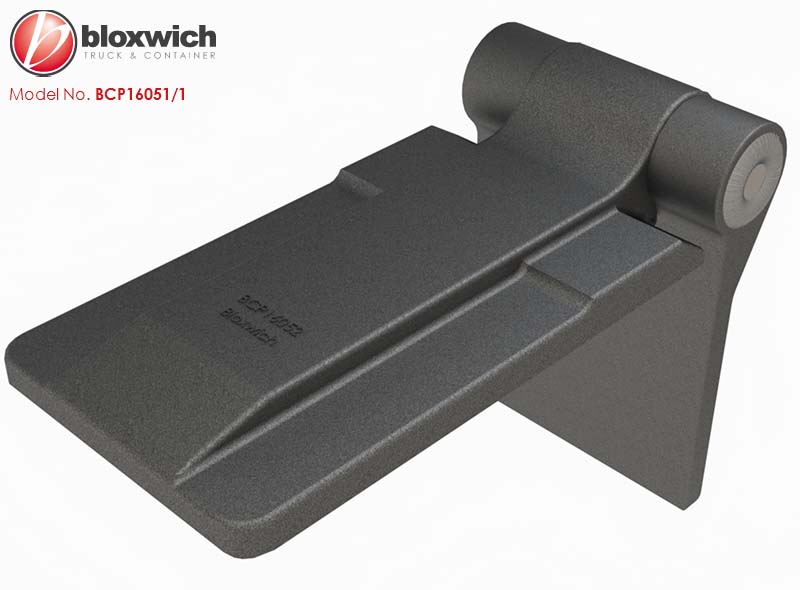

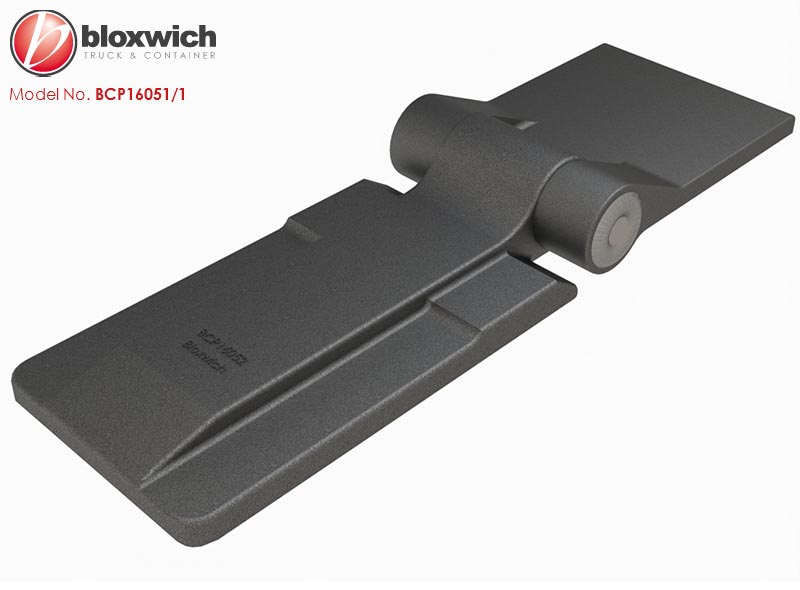

BCP16051/1 Forged Steel Door Hinge Assembly 197mm
BCP16051/1 Forged Steel Door Hinge Assembly 197mm - view 1DrawingBCP16051/1 Forged Steel Door Hinge Assembly 197mm - view 3All OptionsOil Hole/Grease Nipple Positions

BCP16051/1 Forged Steel Door Hinge Assembly 197mm

Price: £36.26 (ex VAT)

Description
Description


Bloxwich Standard Product: Forged Steel Door Hinge Assembly 197mm

Supplied in: Self colour

Use: Weld-on design, bushed to suit Ø20 pin. Commonly used on ISO skip unit doors and open top container swinging or removable headers. Depending on mounting arrangement and opening angle some positions may not be suitable for a grease nipple.

Weight: 3.5 kg  Commodity No 830210   GTIN 5060345314984

Assembly Contents
Assembly Contents


Hinge: BCP16052  Bracket: BCP16051-002 Pin: BCP16051-003.   Usual hinge options apply see BCP16052 for details.

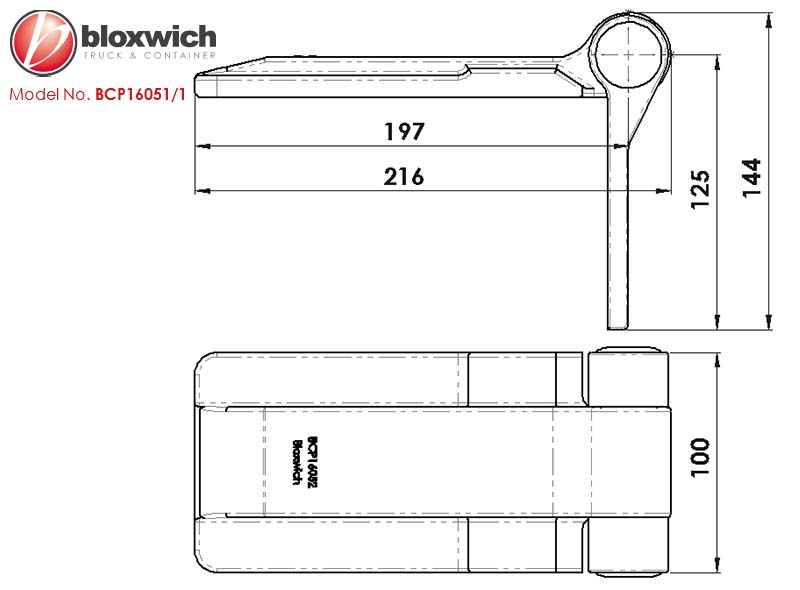

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
