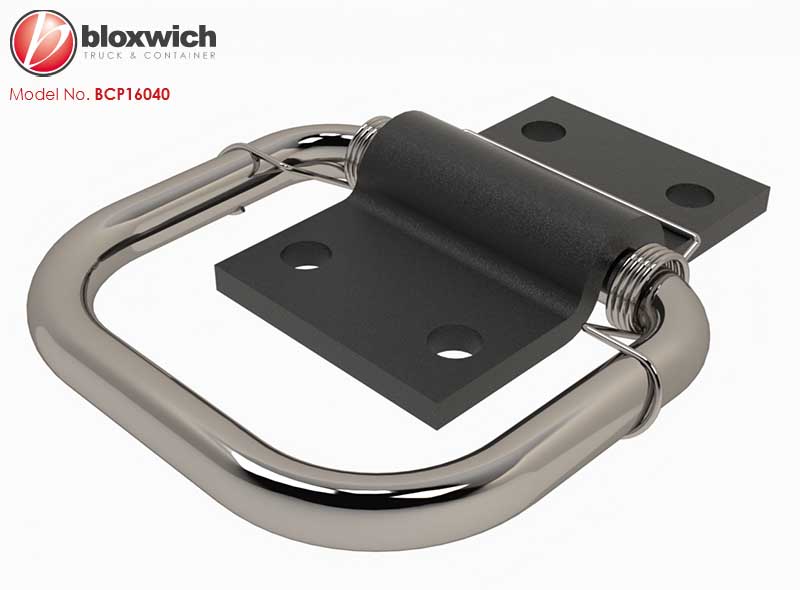

Bloxwich Standard Patent Design: SWL 200kg* Wire Rope Ring
Supplied in: Mild steel black powder coated cleat with stainless steel ring and spring
Use: Bolt on rope ring with return spring to keep ring flat against the mounting surface when not in use meaning it can be mounted at any angle
Weight: 82 g Commodity No 830249 GTIN 5060345313413
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

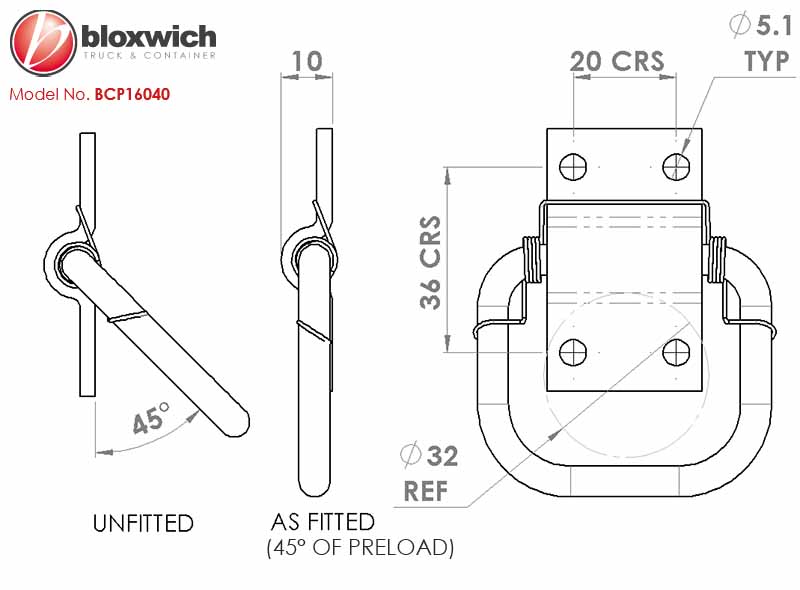

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
