BCP16056 Double Dovetail Foundation Plate 55°
Drawing

BCP16056 Double Dovetail Foundation Plate 55°

Price: £25.06 (ex VAT)

Description
Description

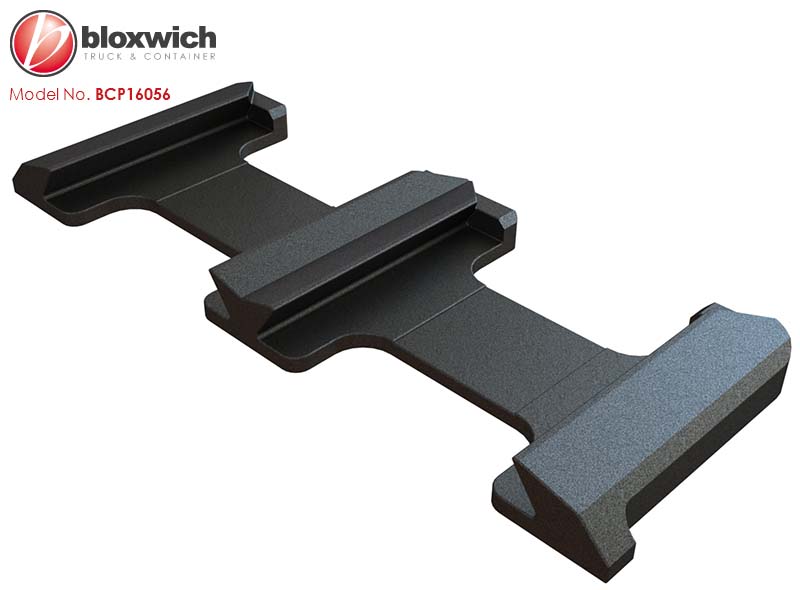

Bloxwich Standard Product: Double Dovetail Foundation Plate 55°, MBL: 500 kN (tension) 420 kN (shear) N/A (compression)

Supplied in: Self colour

Use: Double dovetail foundation plate for use with matching dovetail twistlocks BCP16029 and BCP16029R. Once fitted they provide removable twistlocks for fixing containers in position when required

Weight: 7.0 kg   Commodity Code 830249   GTIN 5060345313505

Certification
Certification


Bloxwich can supply a copy of the type approval certificate

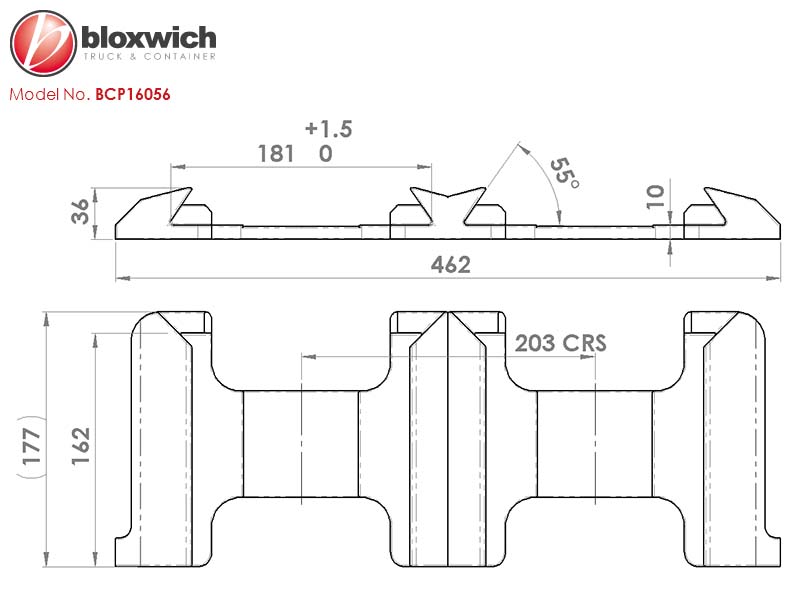

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
