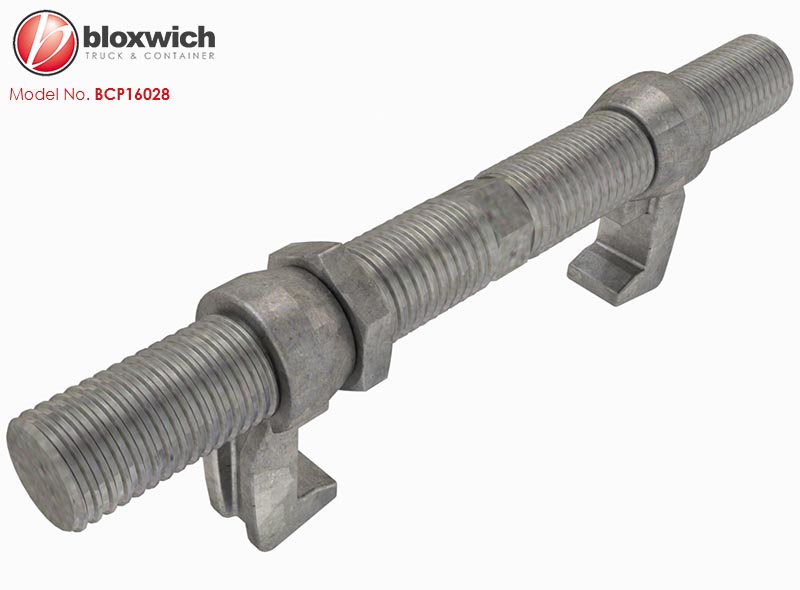

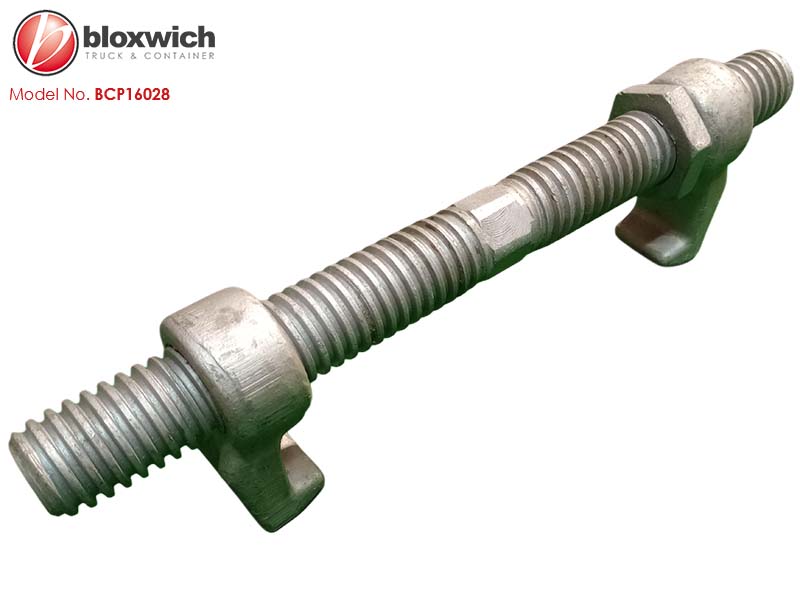

BCP16028 Container Bridge Clamp (Long)
BCP16028 Container Bridge Clamp (Long) - view 1Drawing

BCP16028 Container Bridge Clamp (Long)

Price: £29.43 (ex VAT)

Description
Description


Bloxwich Standard Product: Container Bridge Clamp (Long)

Supplied in: Mild steel, galvanised finish

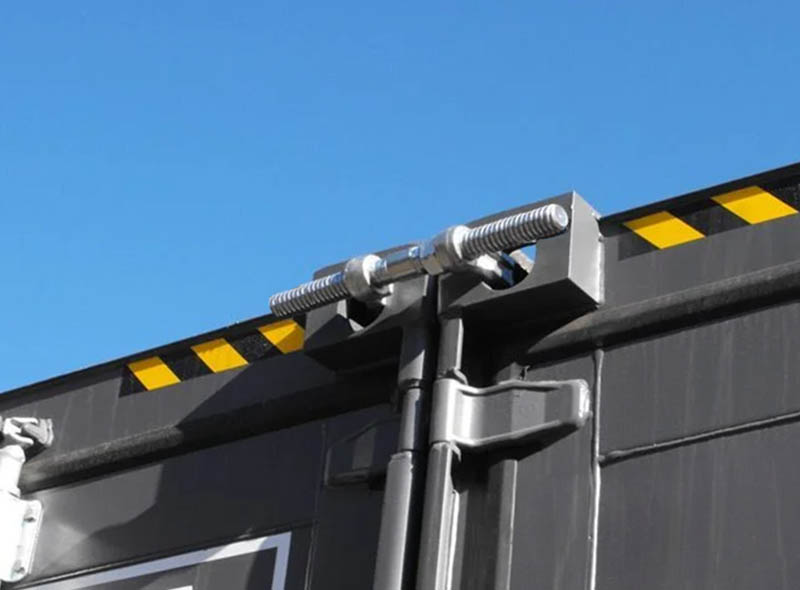

Use: Bridge clamp for clamping containers together horizontally or vertically through their corner castings, MBL 100 kN (tension). Extra length allows use with intermediate adapters or stacking fittings between containers.

Weight: 3.6 kg   Commodity Code 830249   GTIN 5060345313512

Certification
Certification


Bloxwich can supply a copy of the type approval certificate

Operating Instructions
Operating Instructions


Click HERE to download the operating instructions

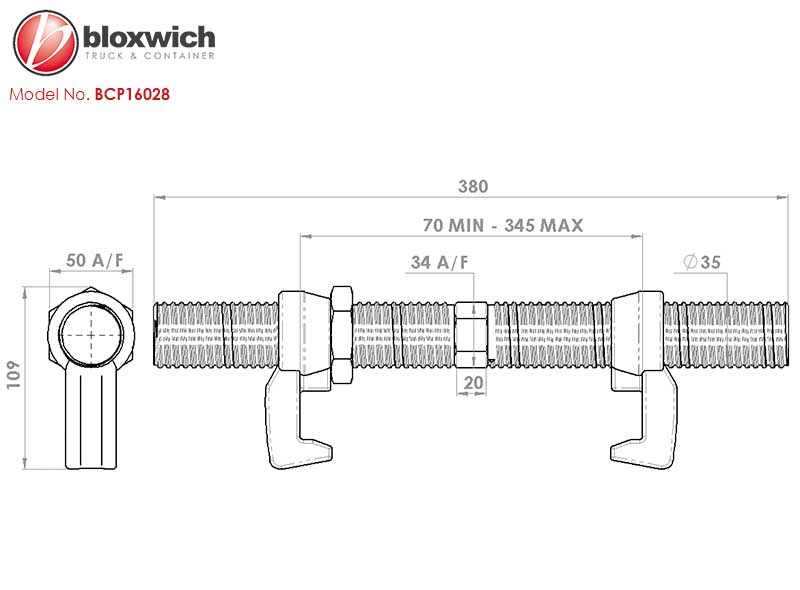

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
