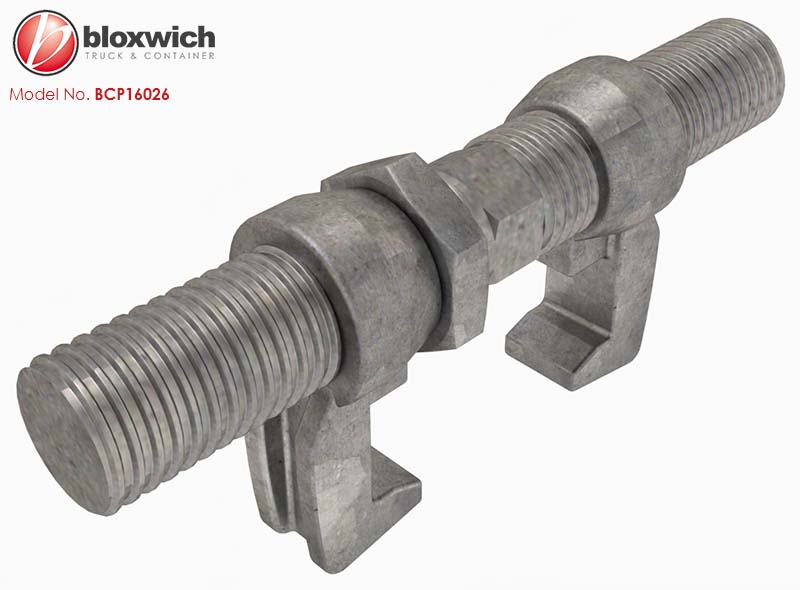

BCP16026 Container Bridge Clamp (Short)

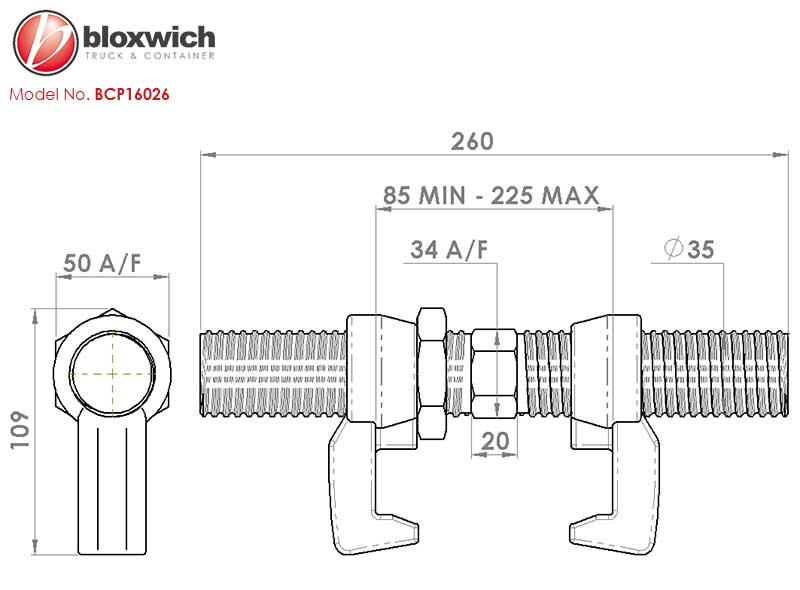

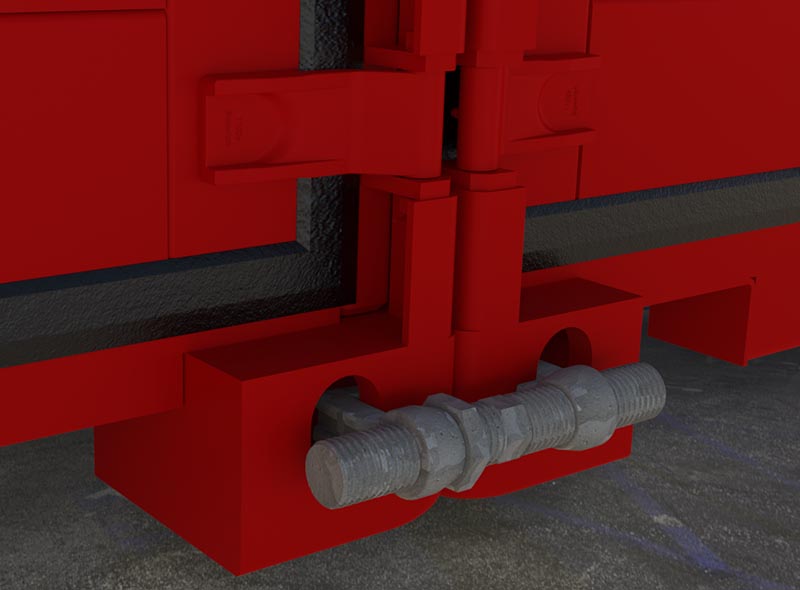

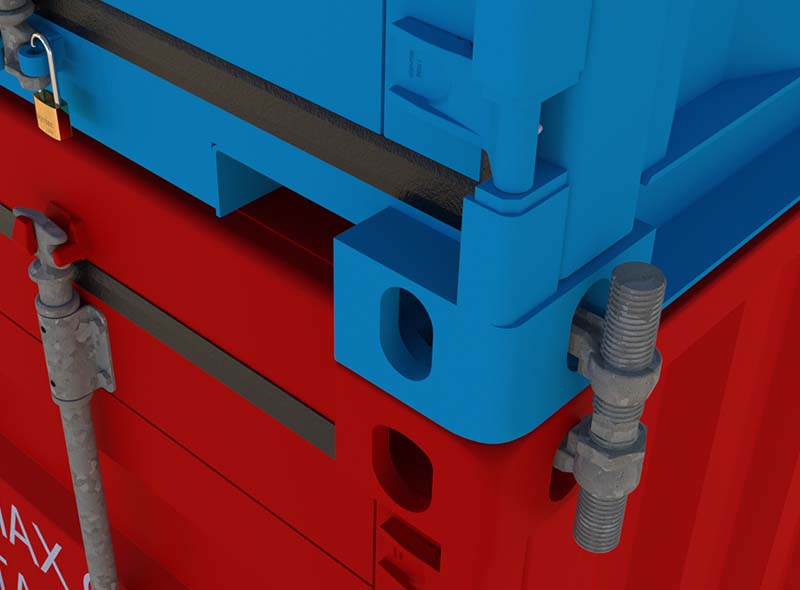

BCP16026 Container Bridge Clamp (Short) - view 1DrawingJoining containers side by sideJoining containers end to endJoining stacked containers

BCP16026 Container Bridge Clamp (Short)

Price: £25.19 (ex VAT)

Description
Description


Bloxwich Standard Product: Container Bridge Clamp (Short)

Supplied in: Mild steel, galvanised finish

Use: Bridge clamp for clamping containers together horizontally or vertically through their corner castings, MBL 100 kN (tension). 4 usually fitted. Fitting: Simply turn the shaft to open/close as required and insert the fingers into the adjacent corner casting apertures, rotate the shaft to tighten the bridge clamp and then tighten the locknut against the finger to secure in place.

Weight: 3.1 kg   Commodity Code 830249   GTIN 5060345312713

Certification
Certification


Bloxwich can supply a copy of the type approval certificate

Operating Instructions
Operating Instructions


Click HERE to download the operating instructions

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
