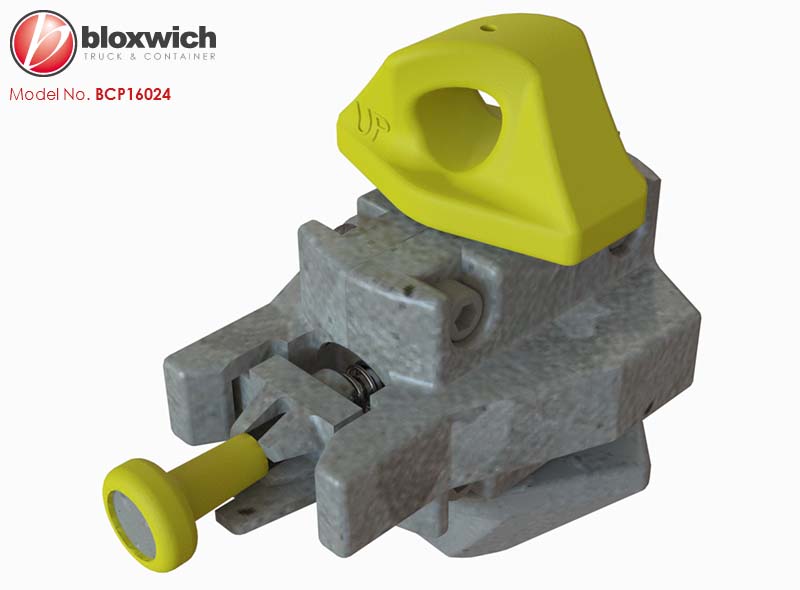

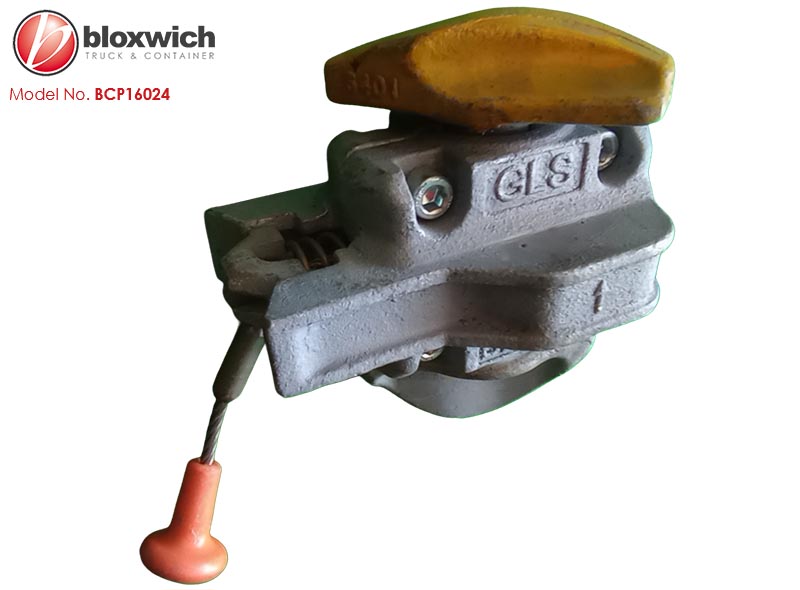

Bloxwich Standard Product: Semi-Automatic Twist Lock, MBL: 500 kN (tension) 420 kN (shear) 2000 kN (compression)
Supplied in: Galvanised with painted yellow upper cone, stainless steel cable & plastic handle
Use: Semi-automatic and manual modes, classification society approved, MBL 500kN (tension) 420 KN (shear)
Weight: 6.0 kg Commodity Code 830249 GTIN 5060345313123
Bloxwich can supply a copy of the type approval certificate

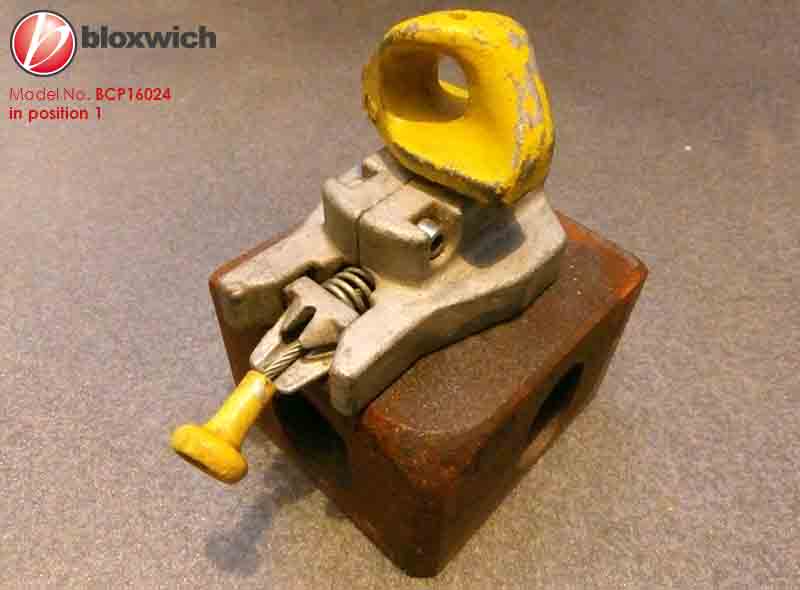

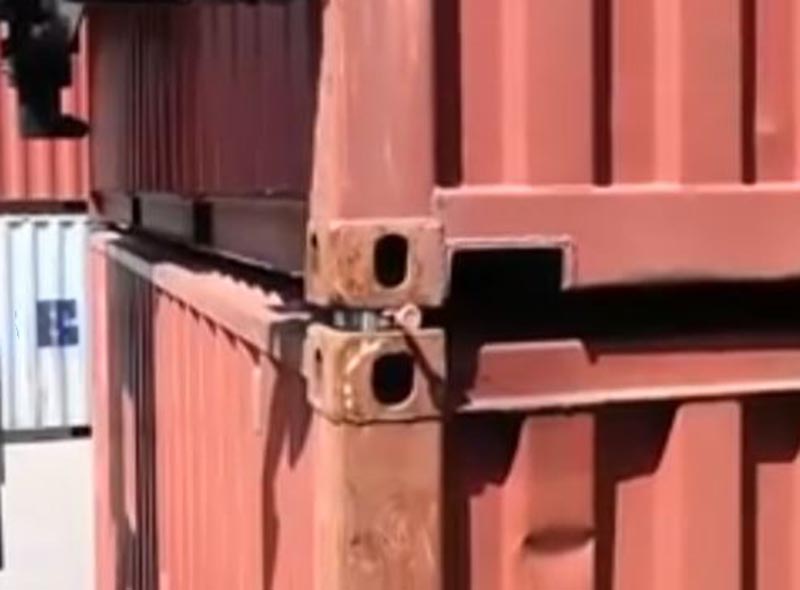

Semi-automatic mode or position 1 one is when the twistlocks are fitted to the upper corner castings of a container. In this position they automatically turn and then lock fully when the next container is placed on top.

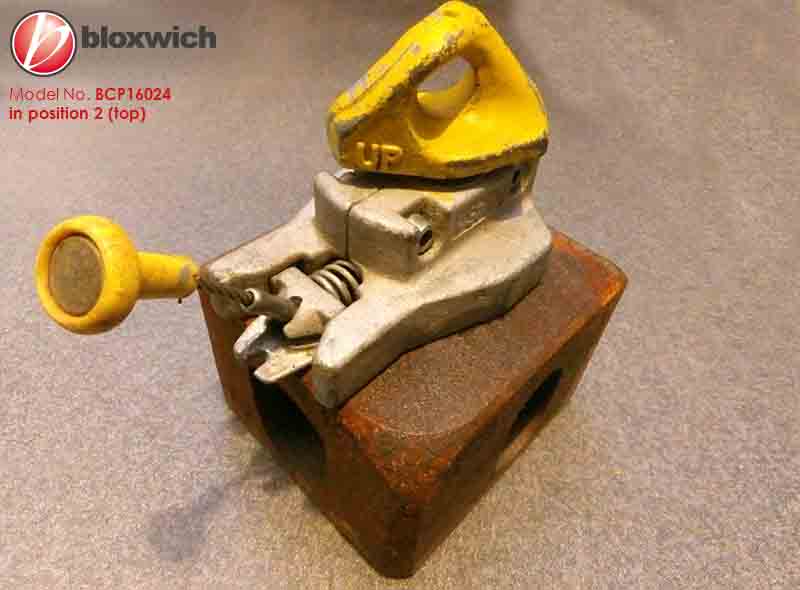

Manual mode position 2 (side and top) allows the twistlock to drop straight into the top aperture of upper corner castings.

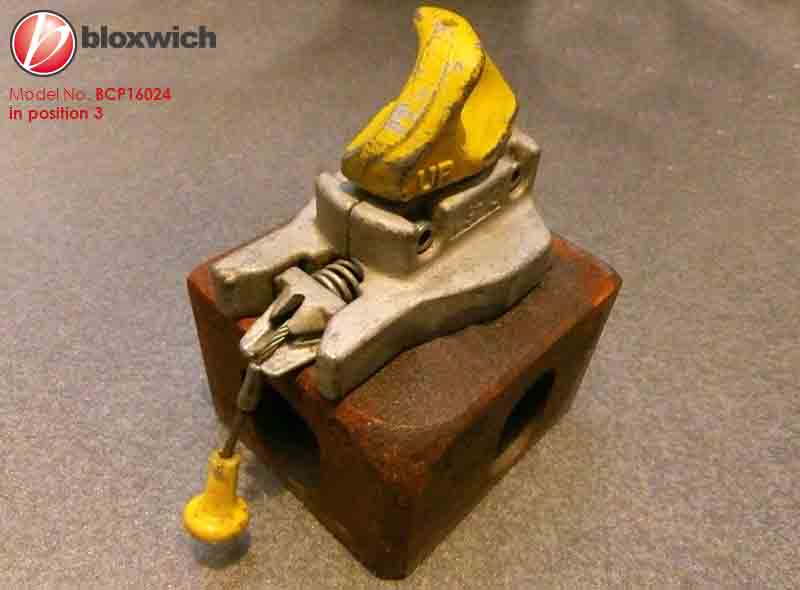

Manual mode position 3 is when the twistlocks are fitted to container below and the upper cone is completely unlocked allowing the next container to drop straight onto the twistlock. It is also used to allow removal of the container placed above.
Click
HERE to download the operating instructions
Click

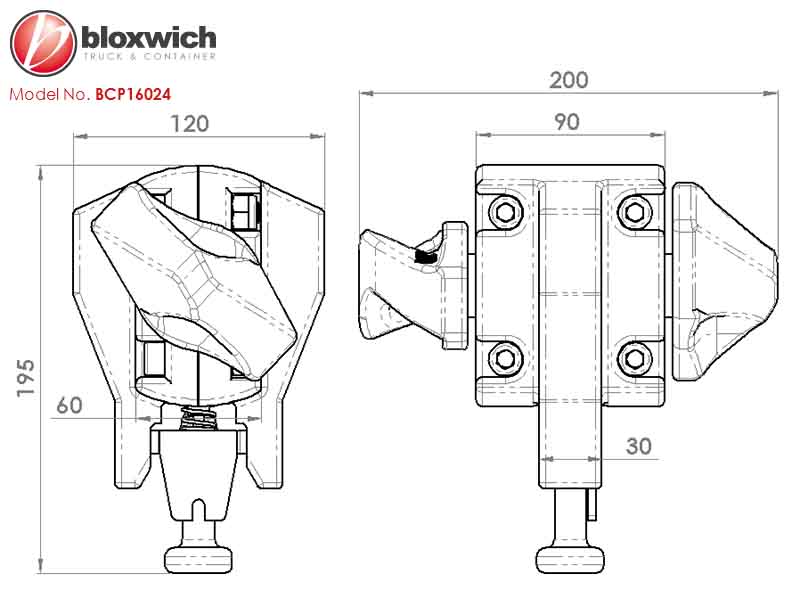

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
