Bloxwich Standard Patent Design: Pressed Lashing Ring Housing
Supplied in: Mild steel self colour

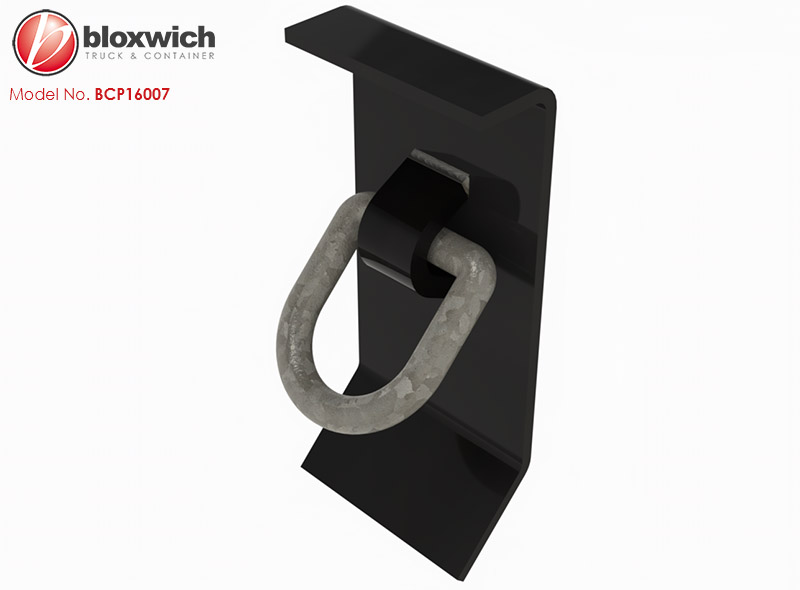

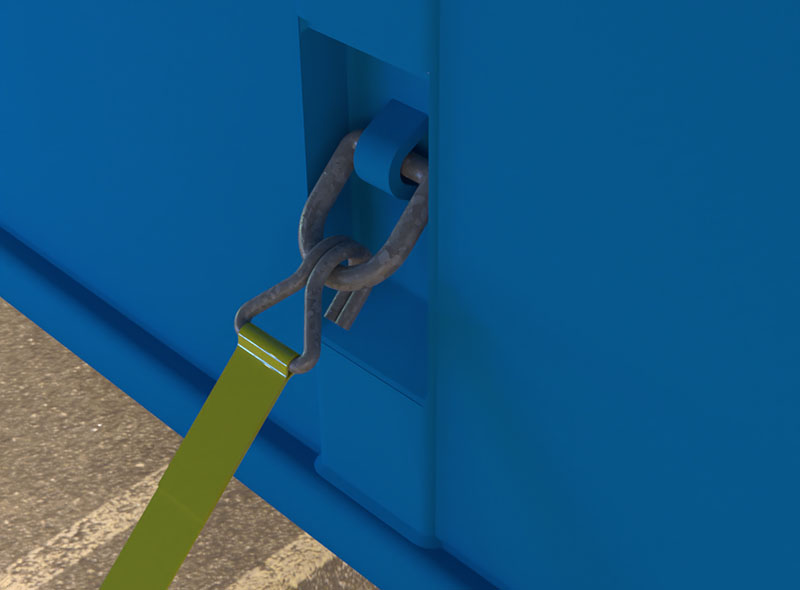

Use: Housing only (BCP14506 ring and BCP14489C cleat shown are supplied separately), assemblies available upon request please contact us for further details. Provides a snagging free recessed housing for fitting lashing rings into 100mm wide x 5 or 6mm thick hollow sections. Also works with BCP 14480-R lashing ring and other sizes are available on request.
Weight: 780 g Commodity No 830249 GTIN 5060345312546
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

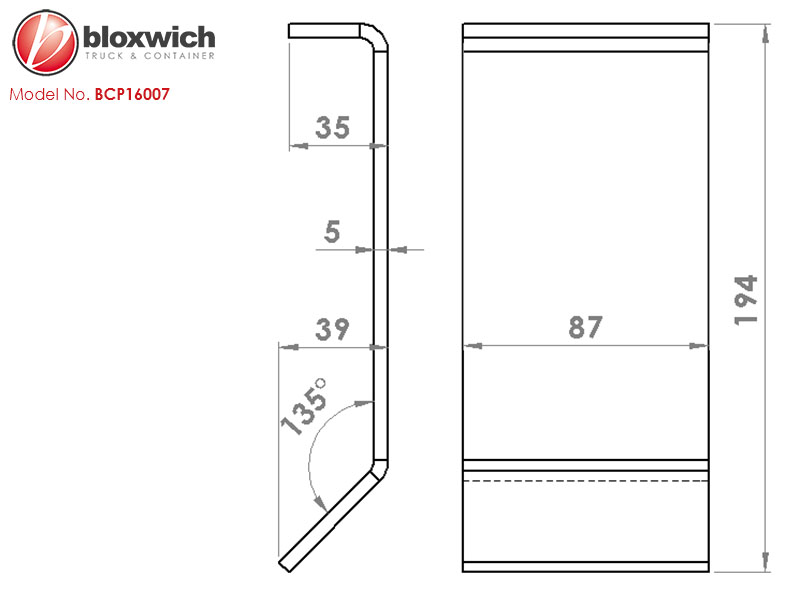

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
