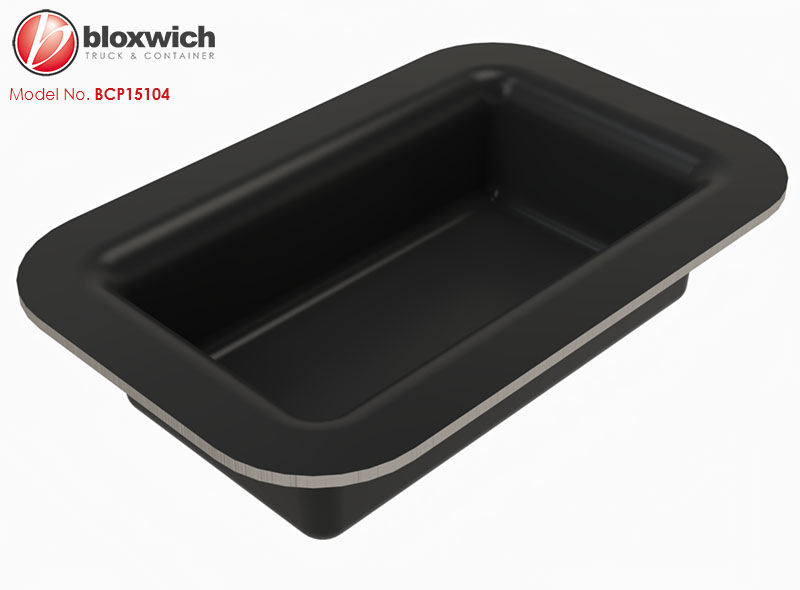

Bloxwich Standard Patent Design: Recessed Housing
Supplied in: Mild steel, self colour
Use: Commonly used to form part of the BCP14995 & BCP15058-1 tag line boxes or recessed lasing ring assemblies but ultimately it can be used to recess anything into walls or floors. Housing only (rings and cleats etc supplied separately).
Weight: 700 g Commodity No 830249 GTIN 5060345314847
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

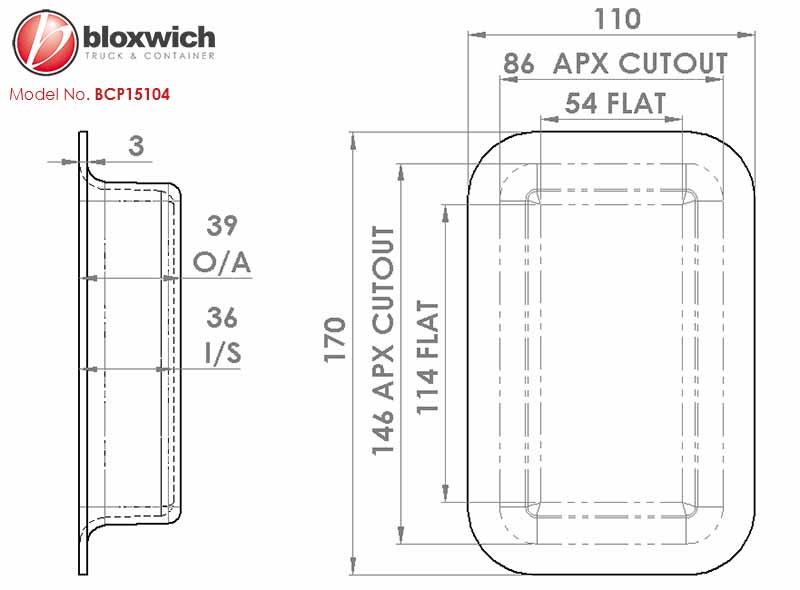

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
