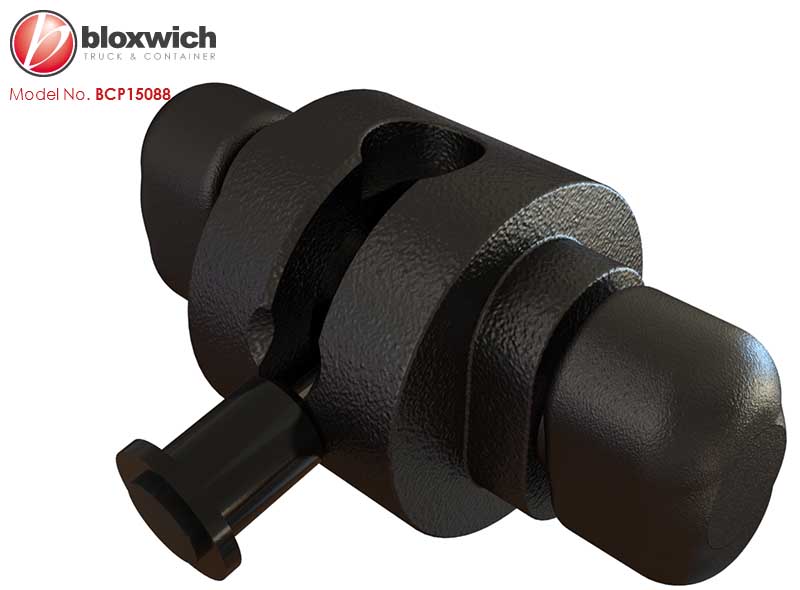

Bloxwich Standard Product: Interconnector Lower
Supplied in: Mild steel, with matt black weather protection coating
Use: For connecting two 10' containers together (empty or full*), set of four required (two uppers & two lowers) or for connecting two 20' containers together (empty only). * Full weight of each container must not exceed the ISO 10' MGW of 10160kg. Lowers can also be used to connect through the sidewall apertures of lower and upper corner castings to join containers together along their length e.g. on building sites etc.
Easy to use, proven robust design, approved by Bureau Veritas and the US Naval Civil Engineering Laboratory
Weight: 6.0 kg Commodity No 830249 GTIN 5060345312720
Bloxwich supply these with stamped serial numbers and certificates of conformity that include a statement about the materials used and their certificates
Click

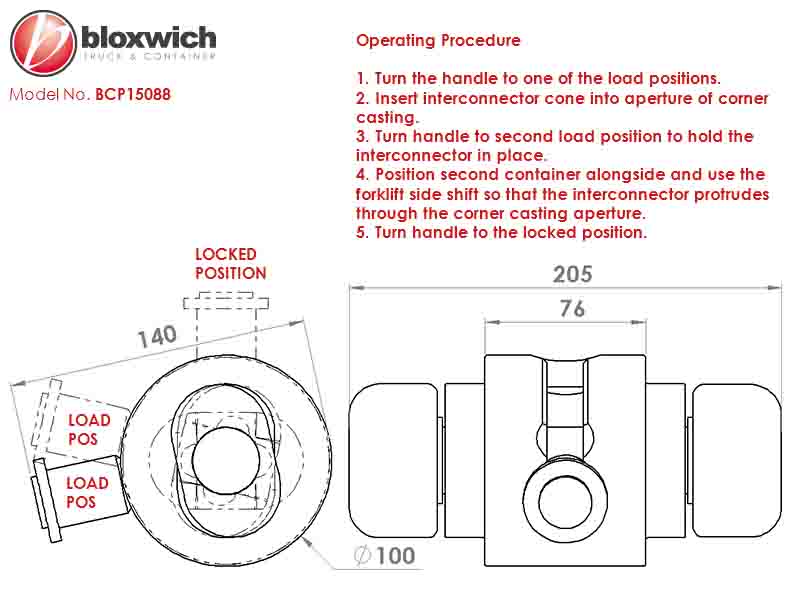

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
