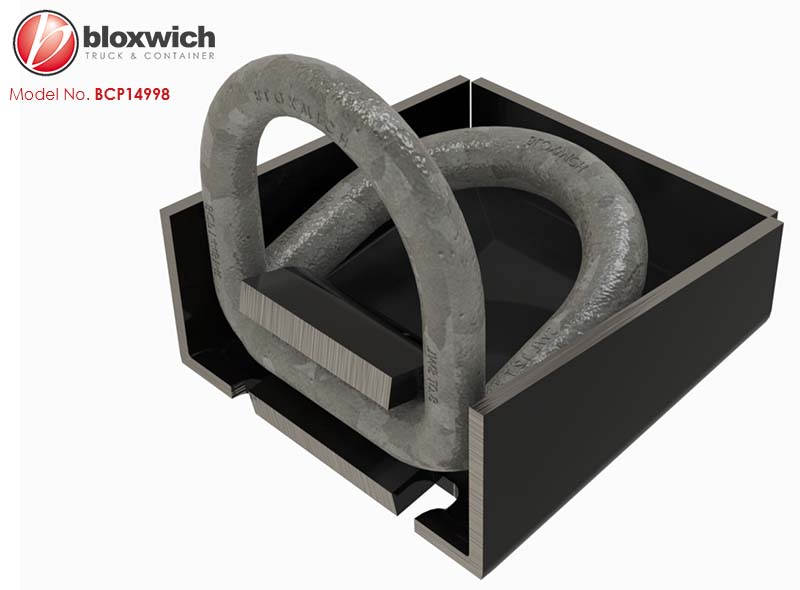

Bloxwich Standard Patent Design: Pressed Lashing Ring Housing SWL1.5-2.5*
Supplied in: Mild steel, self colour
Use: With BCP14481 and BCP14482 lashing ring and cleats. Box only (ring supplied separately). Provides sub floor lashing ring boxing - not to be used for lashing ring attachment
Weight: 1.2 kg Commodity No 830249 GTIN 5060345311419
Developed in 2012 this lashing ring housing doesn't require any stiffeners and wont bent the floor in use as the cleat is fully welded to the units structural members
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.

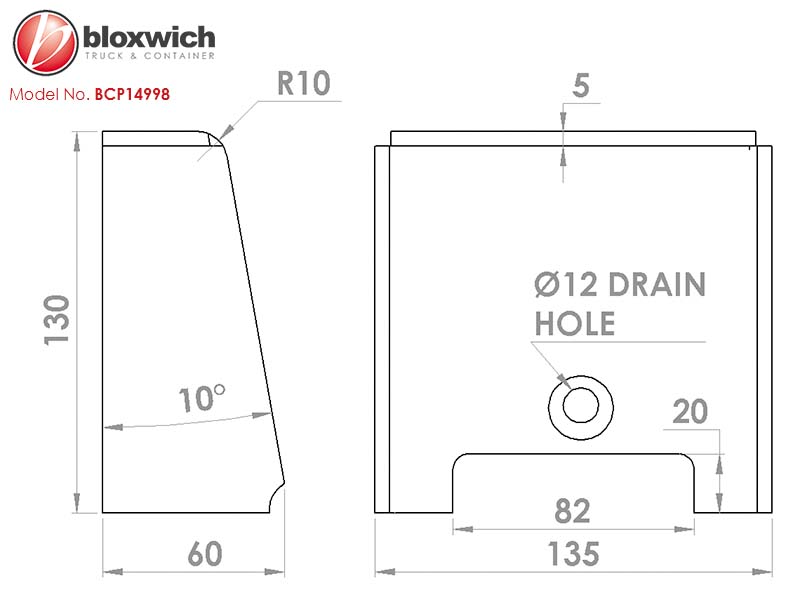

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
