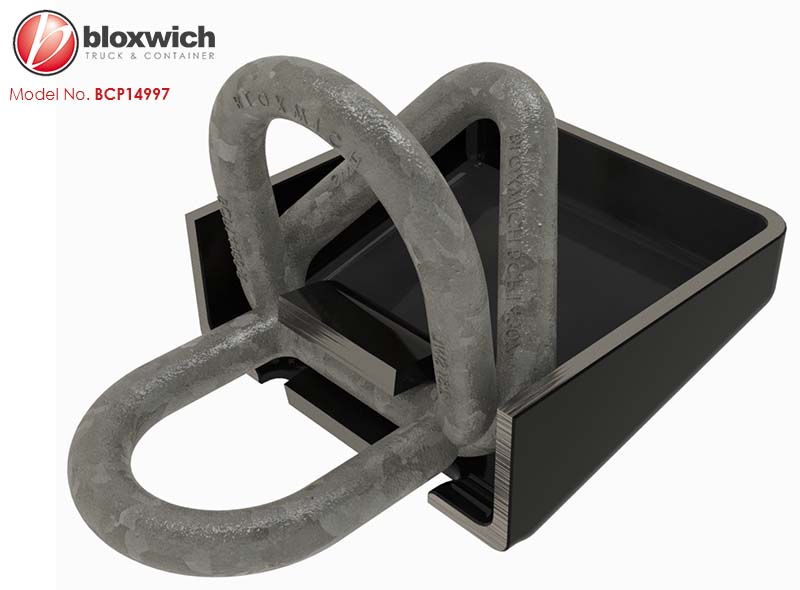

Bloxwich Standard Patent Design: Pressed Lashing Ring Housing
Supplied in: Mild steel, self colour

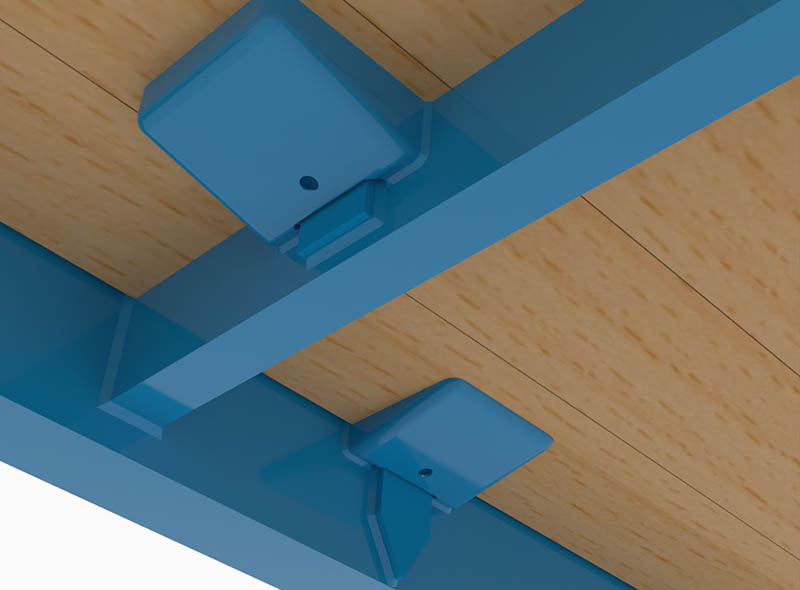

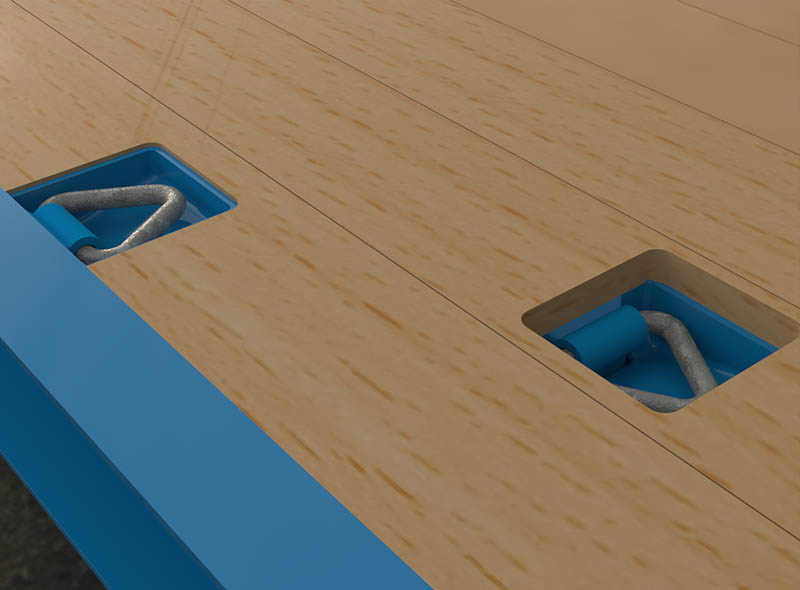

Use: With BCP14506, BCP14307 or BCP14480R lashing rings and bridge cleats. Box only (rings supplied separately). Provides sub floor lashing ring boxing - not to be used for lashing ring attachment.
Weight: 750 g Commodity No 830249 GTIN 5060345312706
Developed in 2012 this lashing ring housing doesn't require any stiffeners and wont bent the floor in use as the cleat is fully welded to the units structural members
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

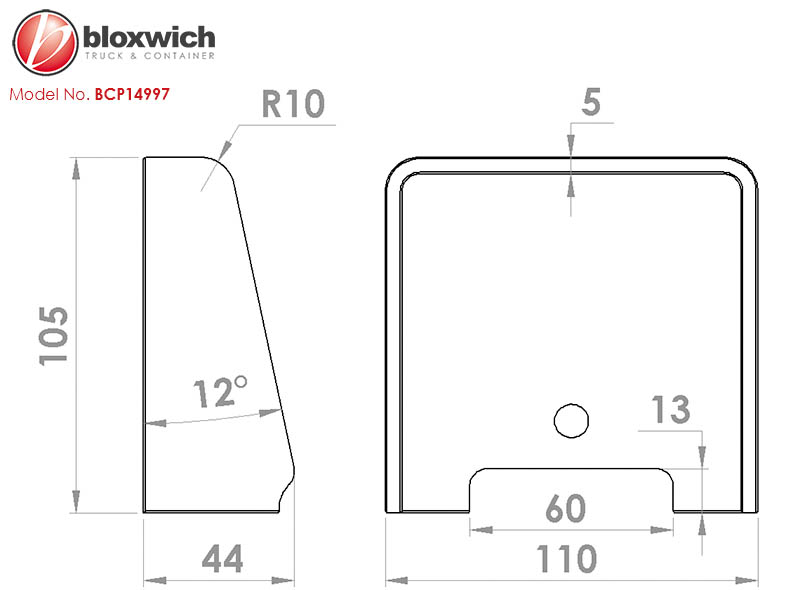

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
