BCP14883 Forged Steel Door Hinge Assembly 150mm
BCP14883 Forged Steel Door Hinge Assembly 150mm - view 1DrawingDrawingAll OptionsBush OptionsOil Hole/Grease Nipple Positions

BCP14883 Forged Steel Door Hinge Assembly 150mm

Price: £9.01 (ex VAT)

Description
Description

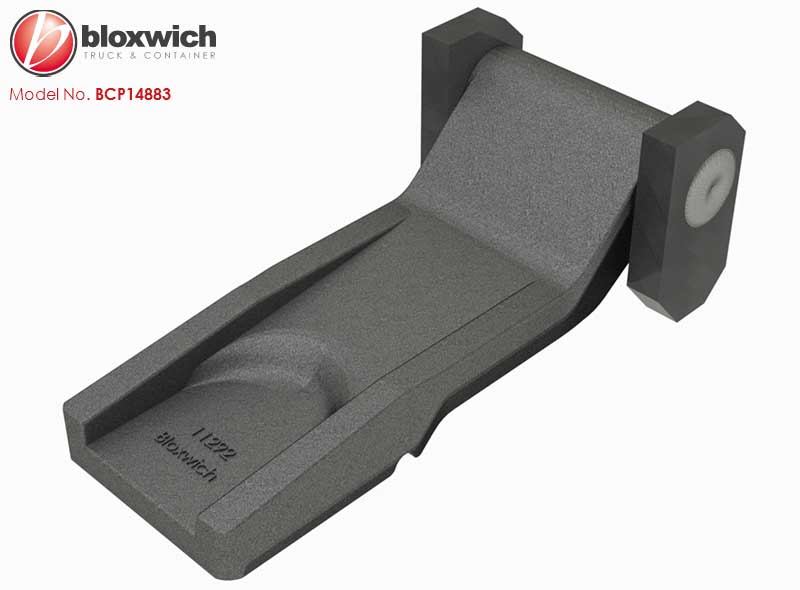

Bloxwich Standard Patent Design: Forged Steel Door Hinge Assembly 150mm

Supplied in: Self colour or zinc plated hinge with self colour hinge butts and stainless steel pin

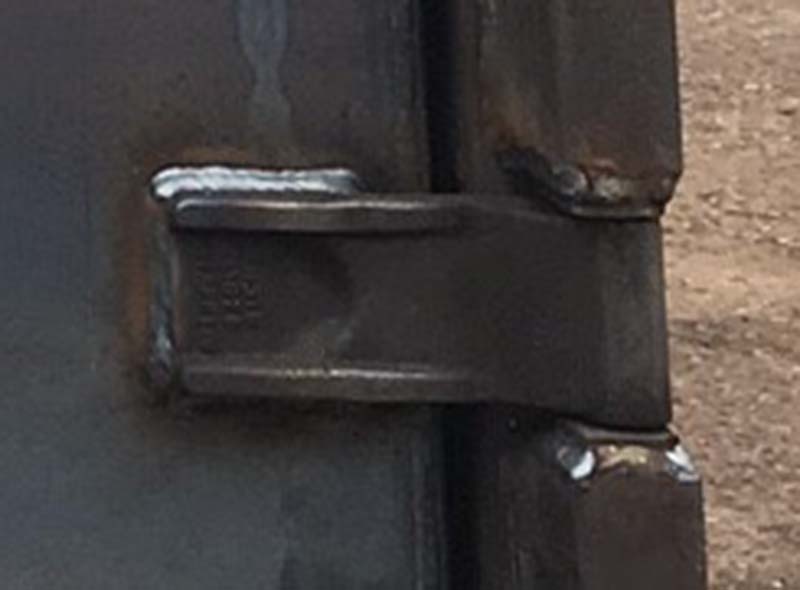

Use: For containers etc, parts supplied assembled ready to weld in place. Weld-on design, bushed to suit Ø12.7mm hinge pin or 1/2" bolt. Hinge pin fully welded to the hinge butts

Weight: 1.4 kg  Commodity No 830210   GTIN 5060345313178

Assembly Contents
Assembly Contents


Hinge: BCP11292  Butts: BCP11354  Pin: BCSP-24001/82.  Usual hinge options apply see BCP11292 for details

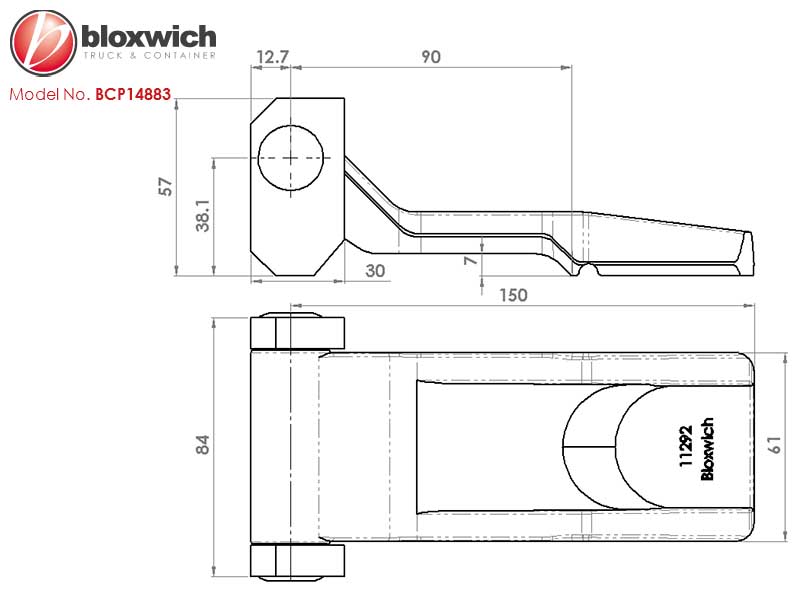

Drawing Download
Drawing Download


Click HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
