Bloxwich Standard Patent Design: SWL 3.0 T Recessed TT Dropside Lashing Ring
Supplied in: Zinc plated forged steel lashing ring and mild steel back plate. Complete with 2 x M10 zinc plated nyloc nuts.

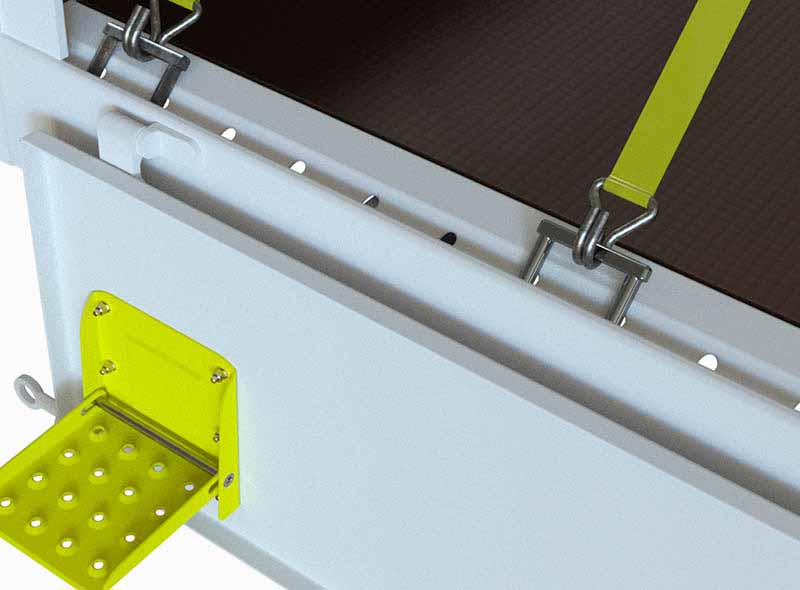

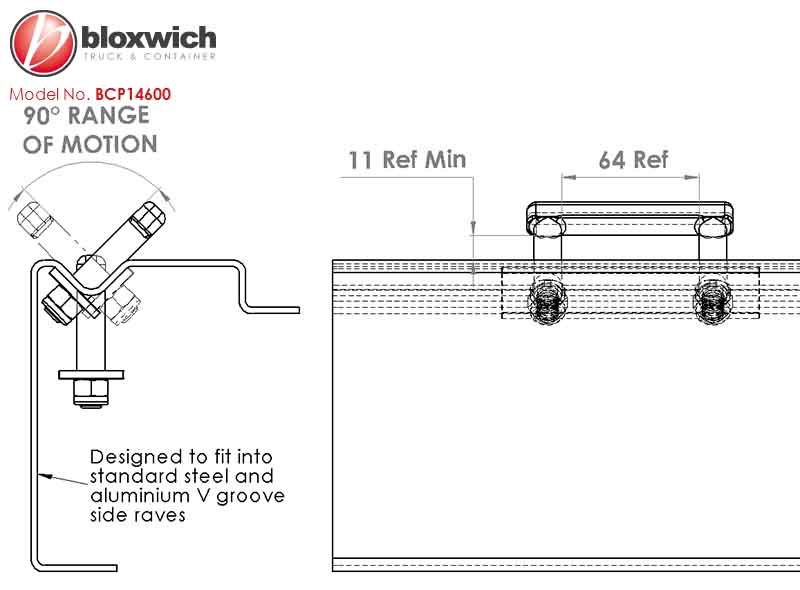

Use: Designed to fit into standard steel and aluminium V groove side raves. Can also be recessed and welded into steel floors and pressed housings to form a recessed lashing ring or recessed pull up handle.
Weight: 320 g Commodity No 830249 GTIN 5060345311389
The load bearing capabilities of the fixings to the vehicle/container/unit must be established by the manufacturer in accordance with the relevant standards e.g. BS EN 12640, BS ISO 27956, BS EN 29367-2, ISO 1496-2 & ISO 10855 etc.
Click

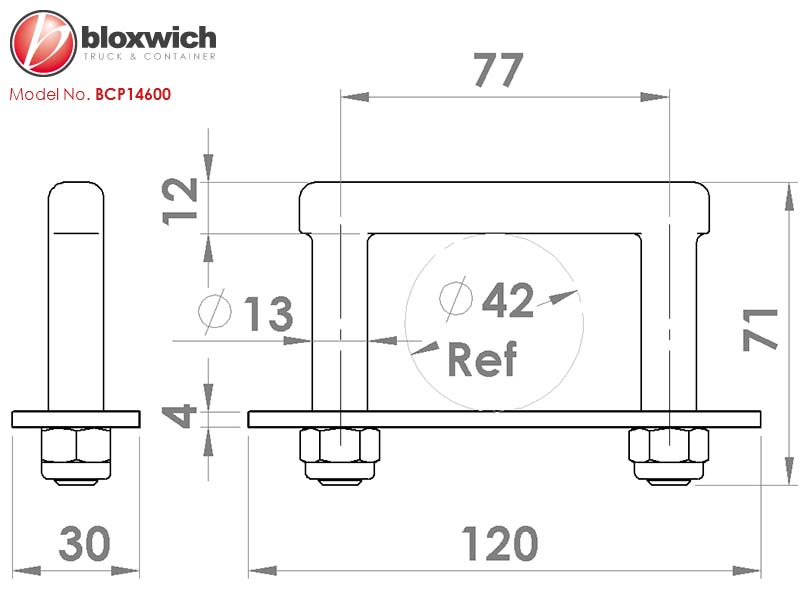

HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
